Overview

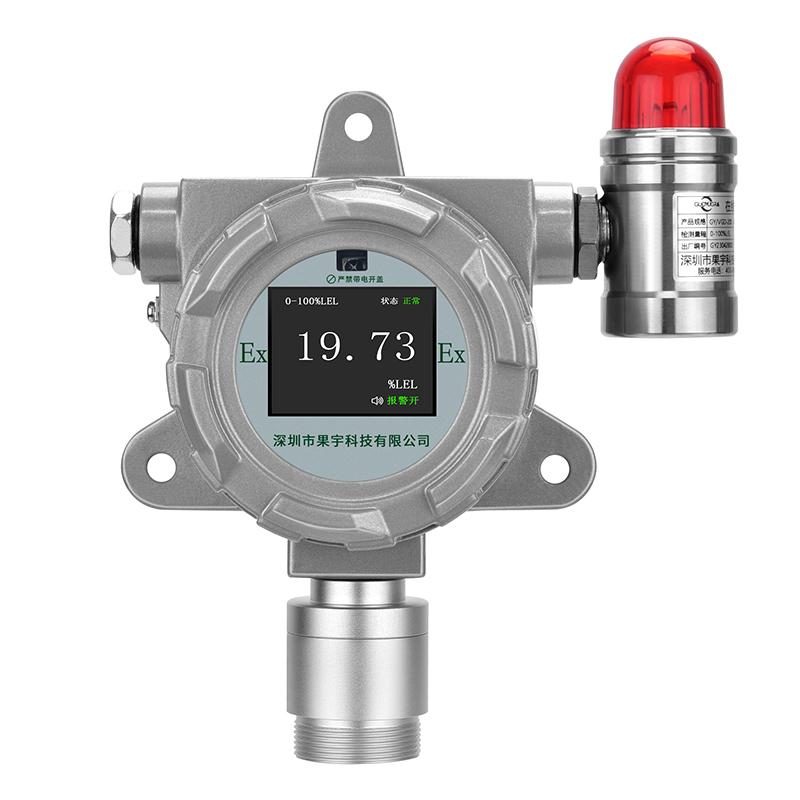

GUOYUGRA GY/VGD-200-C4H8O-G (0-2% Vol) Methyl Ethyl Ketone Detector (IR) is a low-power Modular design using MCU chip, with intelligent Sensor detection technology, overall flameproof (d) structure, fixed Installation method detector. Standard configuration is LCDTFT high definition LCD display, three-wire system 4~ 20mA analog, RS485 digital and switching signal output, provide customized products according to user requests, and also support Output signal fine-tuning and other functions, convenient system networking and maintenance.
Features
1. Customizable Range Intelligent Sensor, High Sensitivity, High Accuracy, Linear Stability, Fast Response
2. Using MCU chip, low power consumption, safe and reliable performance, accurate data conversion, stable signal output
3. Support 4-20mA, RS485, switch and other signal output, easy access to PLC, DCS, DDC and other industrial control systems
4. Support customized wireless signal transmission: Zigbee, LORA, 433M, 4G, WiFi, NB, GPRS, etc
5 point array high definition LCDTFT LCD screen, Chinese and English Operating interface can be switched
6. The alarm value, zero adjustment, calibrate, reset, modify the address code and other function menu operations can be carried out by remote control without opening the lid
7. Local integrated sound and light alarm indication, support remote mobile phone, computer, monitoring room, third-party platform alarm prompt, infrared remote control one-click muffler
8. Aluminum alloy cast explosion-proof shell, sturdy and durable
9. Passed a variety of CMA, CNAS, CE, ROHS, SIL, UL, ECM safety and other international certifications
10. Explosion-proof certificate grade: Ex db IIC T6 Gb; explosion-proof certificate number: SYEx23.04100
Applications
Workplace environment Gas detection, explosive environment monitoring, flammability dust environment monitoring, industrial process control
Steps
1. Set the alarm value by remote control without opening the lid
2. Zero adjustment operation by remote control without opening the lid
3. By remote control without opening the lid for calibrating operation
4. Reset operation by remote control without opening the lid
5. Modify the address code through the remote control free lid
Notice
• Operating voltage range DC12V~ 30V
• Ambient Temperature -20~ 50 ℃
• Environmental humidity of 10-95% RH (non-condensing)
• Sensor life is about 10 years (depending on the environment used)
• Connecting cable: 4~ 20mA choose three-core Shielding cable, RS485 choose four-core, when the distance exceeds 1000 meters, the single wire diameter is ≥ 1.5mm, and the Shielding layer is connected to the earth
Explosion-proof form: Probe Transmitters and Sensors are flameproof
• Electrical interface default M20X1.5 internal thread, optional 3/4NPT, 1/2NPT
