Overview

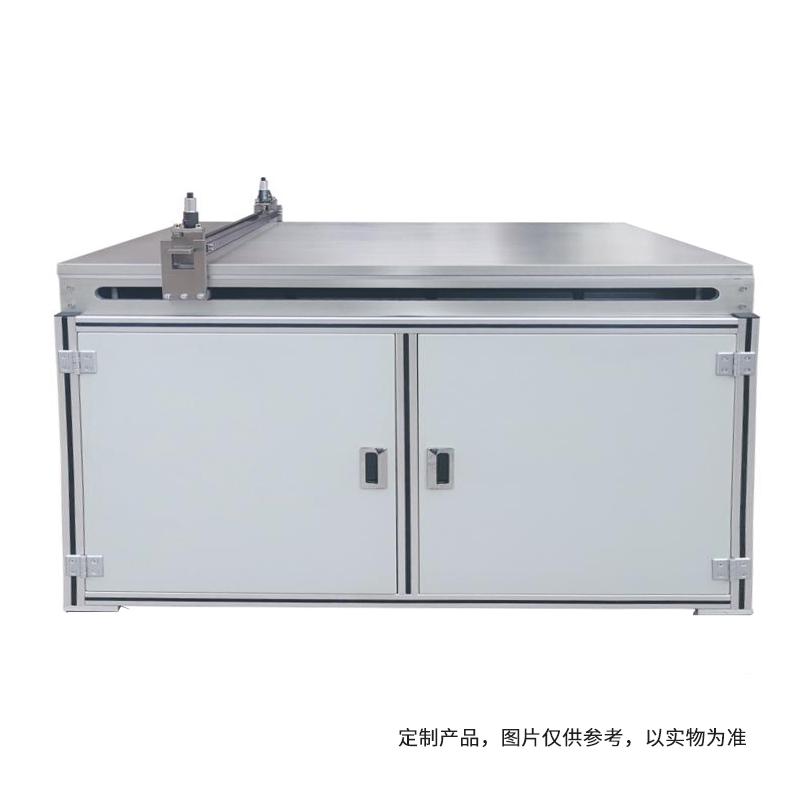

TBJ-B2-DJ17 Automatic Film Applicator is a China drawdown Bar & blade Coater with a large Coating size design and an effective coating area of 900 * 1300mm. The equipment is equipped with a high flat Glass countertop, which is suitable for film operation on cardboard, metal plate, plastic plate and other substrates.
Features
1. The coating method is bar + Drawdown blade combination, providing flexible Spreader options
2. The coating speed can be adjusted infinitely within the range of 5~ 180mm/s, and the speed adjustment accuracy can reach 1mm/s
3. Drawdown blade can be lifted, Spreader thickness range 0~ 10mm
4. Bar Spreader thickness is determined according to bar model
5. Support custom functions, including automatic feeding, jet system devices, UV solid inclusion devices
6. Desktop Appearance Structure, Save Space
Principle
The Film Applicator implements the Spreader process through a combination of bar and Drawdown blade. The device uses stepless variable speed to control the coating speed. The Drawdown blade can be adjusted to lift to control the thickness of the Spreader, and the substrate is uniformly filmed on the Glass table.
Applications
Cardboard, metal plate, plastic plate and other substrate films
Standards
The host power supply meets the 220V 50Hz standard
Steps
1. Prepare substrate and place on Glass countertop
2. Select the bar model or adjust the height of the Drawdown blade according to your needs
3. Set the coating speed in the range of 5~ 180mm/s
4. Start the device for Spreader operation
5. Remove the treated substrate after completing the Spreader
Notice
• Spreader accuracy is +/- 10%, pay attention to thickness control during operation
• Customized coating speed below 5mm/s
• Confirm that the power supply is 220V 50Hz before use
• Bar Spreader thickness depends on selected bar model
• Dimensions of equipment are subject to the actual product
