Overview

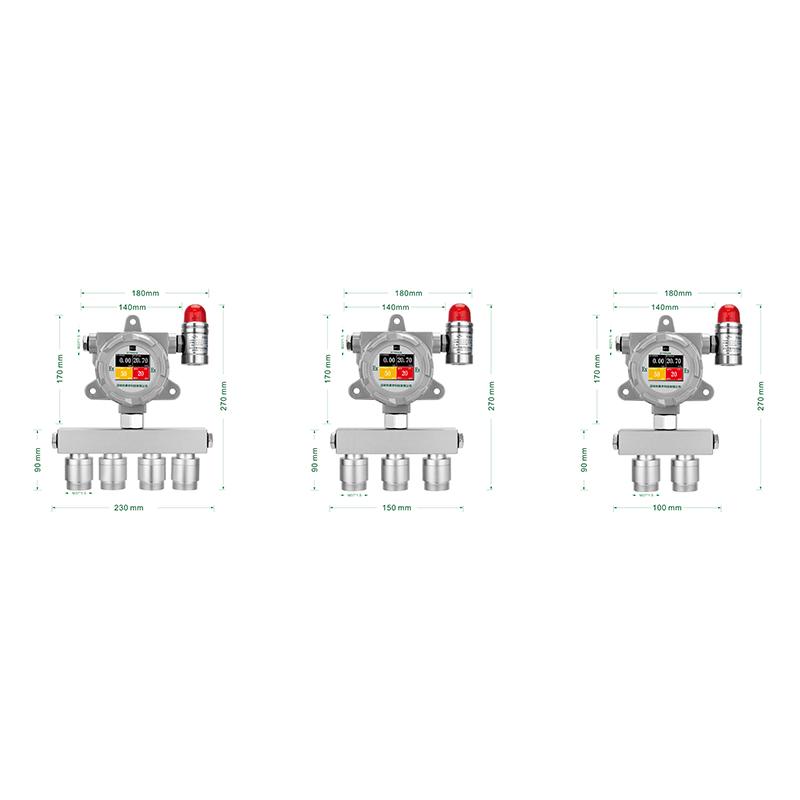

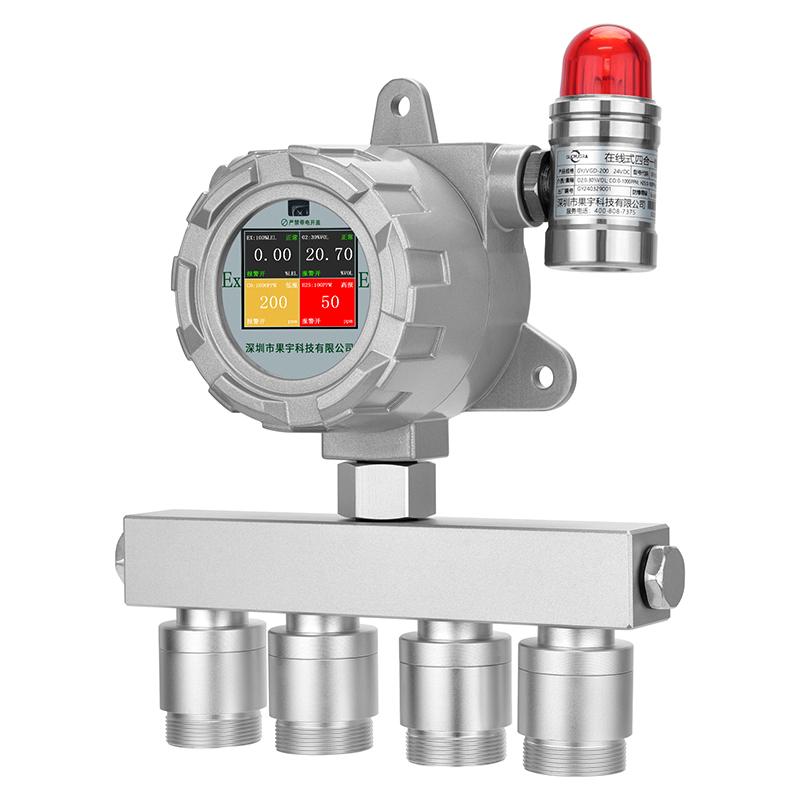

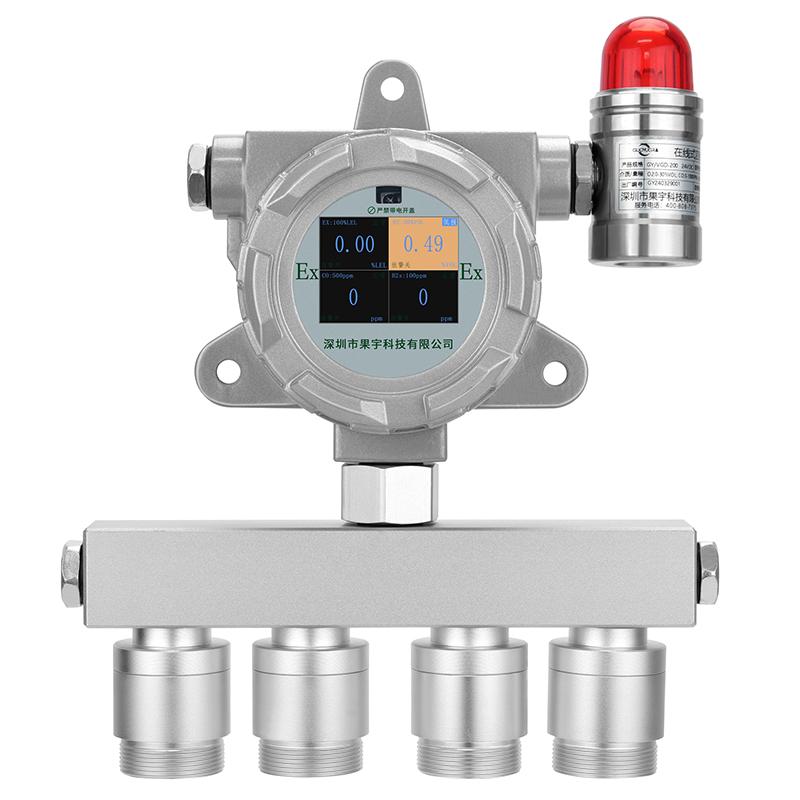

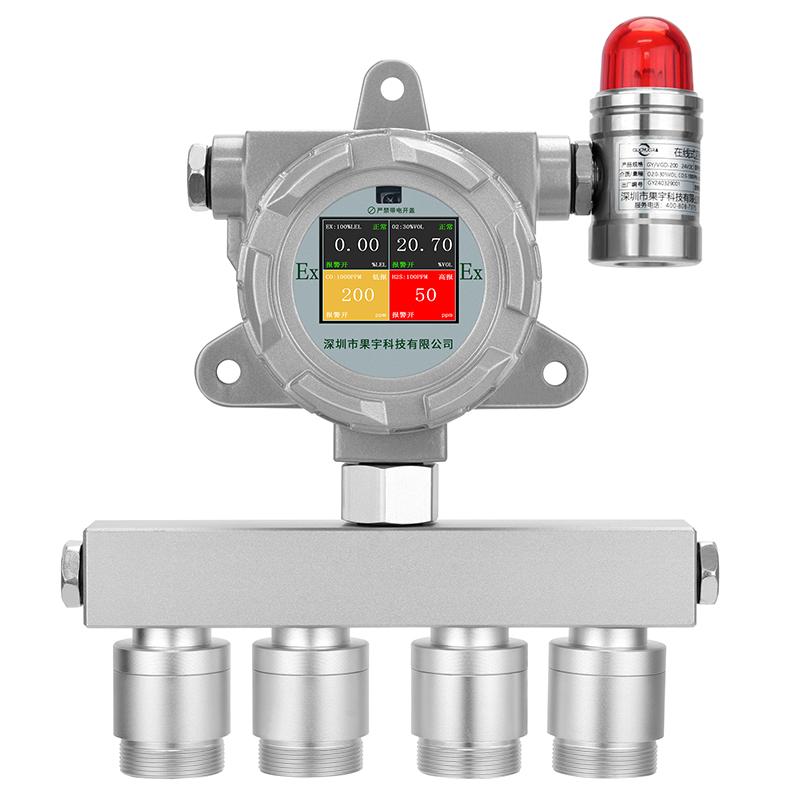

The online all-in-one detector is a detection instrument with low power consumption Modular design, intelligent Sensor detection technology, overall flameproof (d) structure, and fixed Installation method. The standard configuration is LCDTFT high definition LCD display, three-wire system 4~ 20mA analog, RS485 digital and switching signal output, and provides customized products according to user requests. It also supports Output signal fine-tuning and other functions, which is convenient for system networking and maintenance. The rugged explosion-proof shell of the detector is widely used in petroleum, chemical industry, metallurgy, fire protection, coal mine, cement, lame plating, metal sanding, electric power, marine, environmental protection, telecommunications, biochemical medical and other industries.
Features
1. Adopt Customizable Range Intelligent Sensor, which guarantees the advantages of high Sensitivity, high accuracy, linear stability and fast Response of the detector;
2. The use of MCU chip highlights the low power consumption of the detector, safe and reliable performance, accurate data conversion, stable signal output, etc.;
3.4-20mA, RS485, switch and other signal output, easy access to PLC, DCS, DDC and other industrial control systems, can also be a single machine through the switch linkage fan, solenoid valve and other control equipment;
4. Support customized wireless signal transmission: Zigbee, LORA, 433M, 4G, WiFi, NB, GPRS, etc.;
5 point array high definition LCDTFT LCD screen, Chinese and English Operating interface can be switched;
6. The detector can be operated by remote control without opening the lid to perform function menu operations such as alarm value, zero adjustment, calibrating, reset, and modification of the address code;
7. Local integrated sound and light alarm indication, remote mobile phones, computers, monitoring rooms, third-party platforms and other alarm prompts can be realized through alarm control host or wireless signal, and infrared remote control can also be silenced with one click;

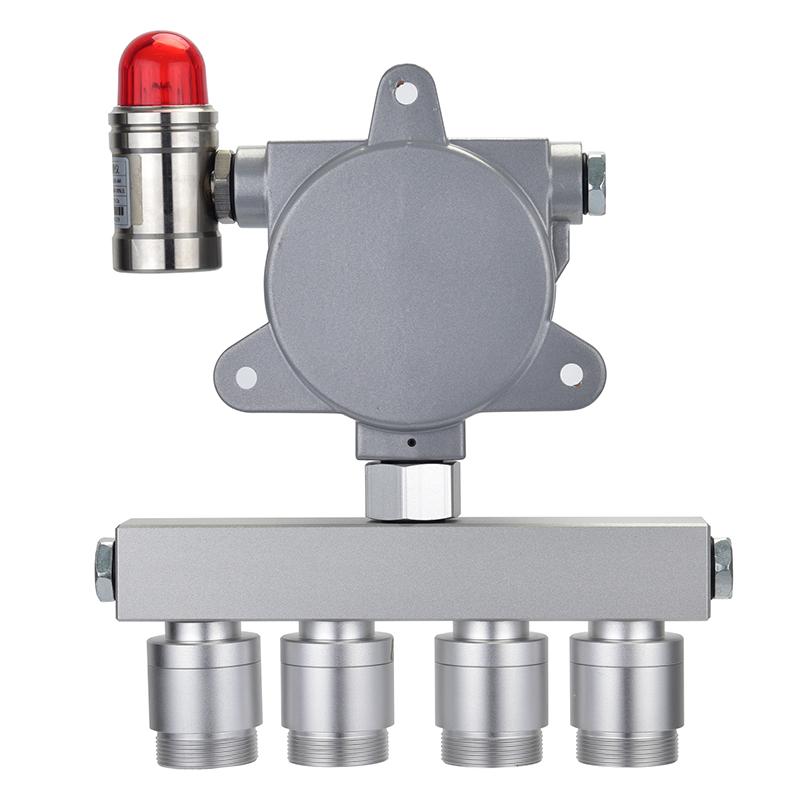

8. Aluminum alloy cast body explosion-proof shell, sturdy and durable;
9. Passed a variety of CMA, CNAS, CE, ROHS, SIL, UL, ECM safety and other international certifications;
10. Explosion-proof certificate grade: Ex db IIC T6 Gb;
11. Protection Rating: IP66.
Principle
The on-line all-in-one detector adopts the principle of catalytic combustion and electrochemistry detection, and detects the target gas through diffusion or optional pump-suction Sampling method. The instrument processes data through intelligent Sensor and MCU chip to achieve High Accuracy signal output and stable performance.
Applications
Petroleum, chemical industry, metallurgy, fire protection, coal mine, cement, lame plating, metal sanding, electric power, marine, environmental protection, telecommunications, biochemical medical
Standards
GB/T3836.1-2021 "Explosive environment Part 1: General requirements", GB/T3836.31-2021 "Explosive environment Part 31: Equipment protected by anti-dust ignition enclosure" t ", GB3836.15-2000" Electrical equipment for explosive gas environment Part 15: Electrical installation in hazardous places (except coal mines) ", GB 1 2476.1 - 20 1 3" Electrical equipment for flammability dust environment Part 1: General requirements ", GB12358-2006" General technical requirements for workplace environment Gas detection alarms ", GBZ2.1-2007" Occupational exposure limits for hazardous factors in the workplace ", GB4208-2008" Shell Protection Rating (IP code) "
Steps
1. Install the detector to ensure that the electrical interfaces and cables are connected correctly.
2. Operating voltage DC24V (12V~ 30V);
3. Set the alarm value, zero adjustment, calibrate, reset, modify the address code and other parameters through remote control or interface;
4. Select Output signal type (such as 4-20mA, RS485, switch, etc.) and connect to the receiving device;
5. Start detection, monitor and display data and alarm status.
6. Regularly maintain and calibrate Sensors.
Notice
• Ambient Temperature should be kept in the range of -20~ 50 ℃;
• Environmental humidity of 10-95% RH to avoid condensation;
• Sensors have a lifespan of 2 to 3 years and need to be replaced regularly according to the Operating Environment;
• When connecting the cable, choose three-core Shielding cable for 4~ 20mA, four-core for RS485, and when the distance exceeds 1000 meters, the single wire diameter is ≥ 1.5mm, and the Shielding layer is connected to the earth;
• The explosion-proof form is explosion-proof, and the installation must meet the relevant explosion-proof standards;
• Alarm settings can be configured with two levels of alarms, including conventional high and low alarms and interval control alarms;
• Optional Accessories such as Power Adapters and Monitoring Accessories need to be used on demand;
• Wireless transmission module is optional to ensure signal stability.
