Overview

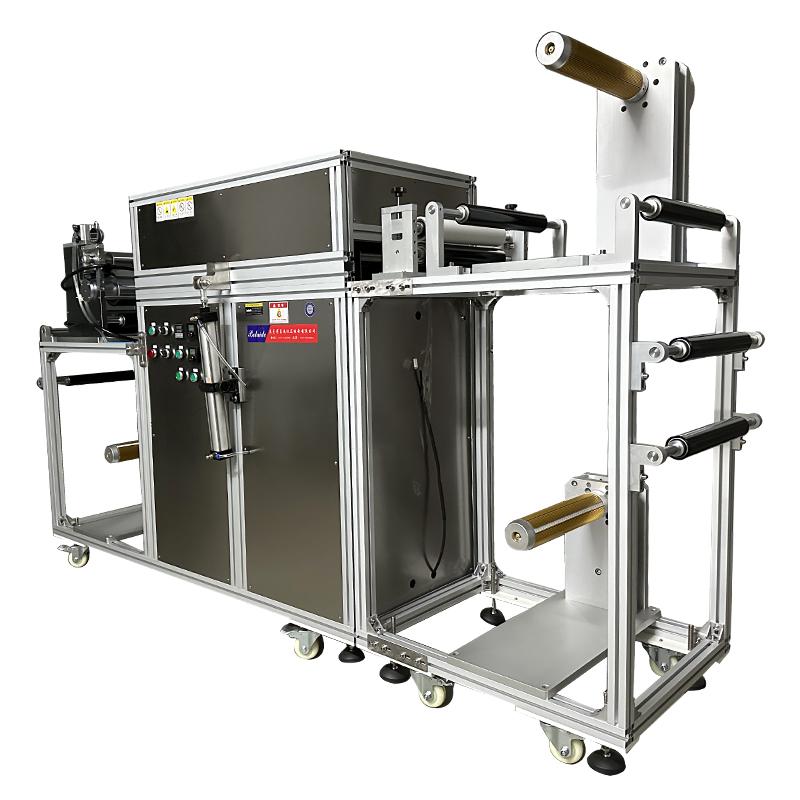

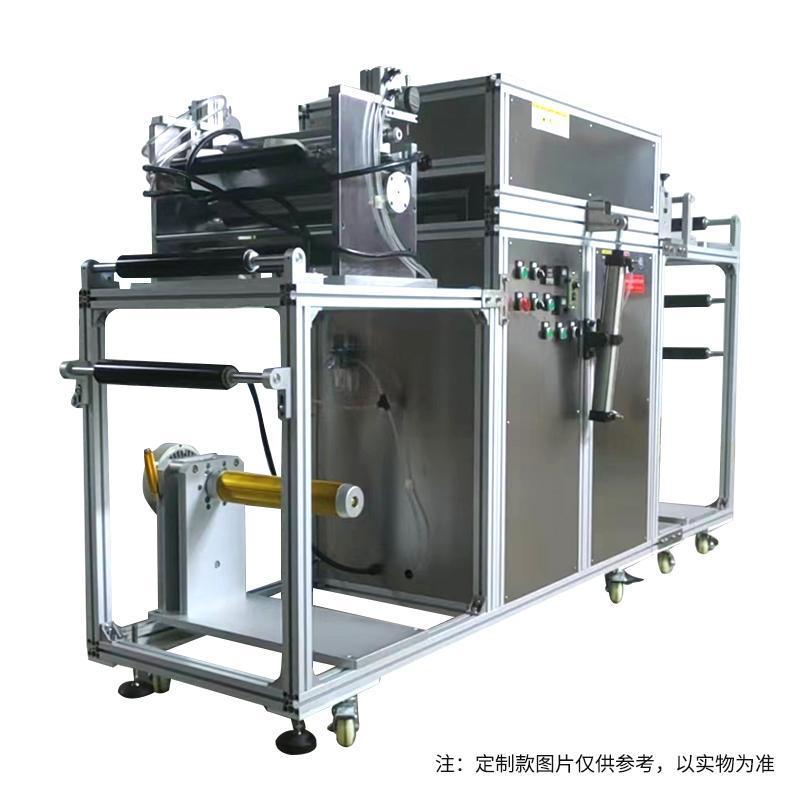

Rgd-01/400TS double-sided coil film Applicator is a factory-sold Spreader equipment, which consists of a body, a gluing width adjustment device, a discharge rack, a coating roller group, a thickness adjustment dial, a transmission platform, a traction roller group and a transmission mechanism. The equipment adopts aluminum alloy + stainless steel plate structure and supports double roller painting film process. The thickness range of Spreader is 0.001-2mm, the accuracy is +/- 5%, and the coating speed is adjustable from 0 to 20m/min. It is suitable for double top coating film and bonding processing of coils.
Features
1. The structure is sturdy and durable, and the body is made of aluminum alloy + stainless steel plate material
2. Equipped with a gluing width adjustment device, composed of food-grade plastic and adjustable braces
3. Double discharge rack design with automatic deviation correction function to ensure material alignment
4. Spreader thickness range (0.001-2mm), high accuracy (+/- 5%)
5. Adjustable coating speed (0~ 20m/min), flexible operation
6. Drying Temperature range RT +~ 150 ℃ to meet different process requirements
7. High bonding accuracy (0.5mm), adjustable width (100~ 400mm)
8. Equipped with a digital thousand head, Graduation 0.001mm, accurate display
Principle
The work flow includes unwinding, double-roller painting, drying, bonding, deviation correction and winding. The substrate enters the coating roller group through the discharge rack for double-top coating film, and the film is smoothly transferred to the drying tunnel through the transmission platform. Then the bonding process is carried out. The correction device automatically adjusts the material alignment, and finally completes the winding through the traction roller group and the winding device.
Applications
Coil Spreader, material bonding, film processing, industrial film
Steps
1. Place the substrate on the discharge rack
2. Manually pull the substrate between the upper and lower rollers of the traction roller
3. Tighten the rack handwheel to make the rubber ring of the upper roller of the traction roller contact with the lower roller
4. Start the equipment, and the traction roller group pulls the substrate through the power transmission
5. Adjust the glue width and thickness parameters
6. Monitor the Spreader process to ensure material alignment and Spreader mass
7. Rewind after Spreader
Notice
• The power supply of the equipment is 380V, make sure the power supply matches
• The application width does not exceed 400mm to avoid exceeding the limit
• Drying tunnel temperature up to 150 ° C, pay attention to temperature control
• Fitting speed range 1~ 10m/min, need to be adjusted within the range
• Pay attention to material alignment during operation and use the deviation correction function
• Regularly check the status of the coating roller group and the traction roller group
• Dimensions of the equipment may be subject to actual customization, and the space needs to be confirmed during installation
