Overview

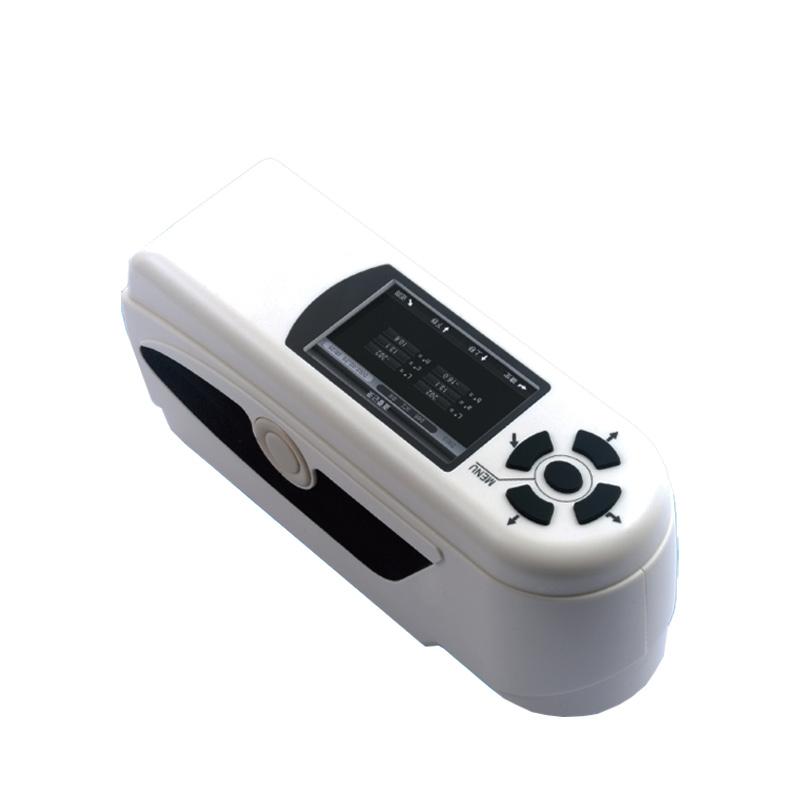

The NR200 cost-effective computer color difference meter is another masterpiece of the 3NH brand, inheriting the advantages of high stability and High Accuracy of the Portable color difference meter, and has a high cost performance.
Features
1. Humanized design and ease of operation, including one-click entry test, structural design in line with human mechanics, and fool-style Operating interface
2. Stable measurement performance, the average fluctuation of AE is less than 0.08
3. Portable structural design is more conducive to maintaining the stability of the fuselage during application
4. Convenient and fast positioning, with lighting positioning function
5. The PC-side software realizes more functional extensions, owns intellectual property rights, and is equipped with genuine software serial numbers and password protection with the product
6. Advanced power management design, using high-capacity lithium-ion battery, charging can be measured more than 3000 times
Principle
The NR200 computer color difference meter uses D/8 ° illumination mode and is equipped with a silicon photodiode sensor to obtain Color data by measuring the reflected light on the surface of the object. The instrument works in CIE LAB, LCh, XYZ and other Color spaces, using CIE 10 ° Standard Observer and D65 observation Illuminant for Color measurement.
Applications
Plastics, coatings, inks printing, automotive, Spinning & weaving, food, pharmaceuticals
Standards
CIE No.15、GB/T 3978
Steps
1. One-click entry test
2. Use the light positioning function to quickly locate the measurement area
3. Color measurement
4. Extended functions such as color difference analysis, color difference cumulative analysis, chroma index, and color sample library management through PC software
Notice
• Temperature range 0~ 40 ° C (32~ 104 ° F)
• Storage Temperature range -20~ 50 ° C (-4~ 122 ° F)
• Make sure the battery is fully charged before use
• Measurement accuracy by keeping the fuselage stable during measurement
Periodically calibrate instruments to ensure measurement accuracy
