Overview

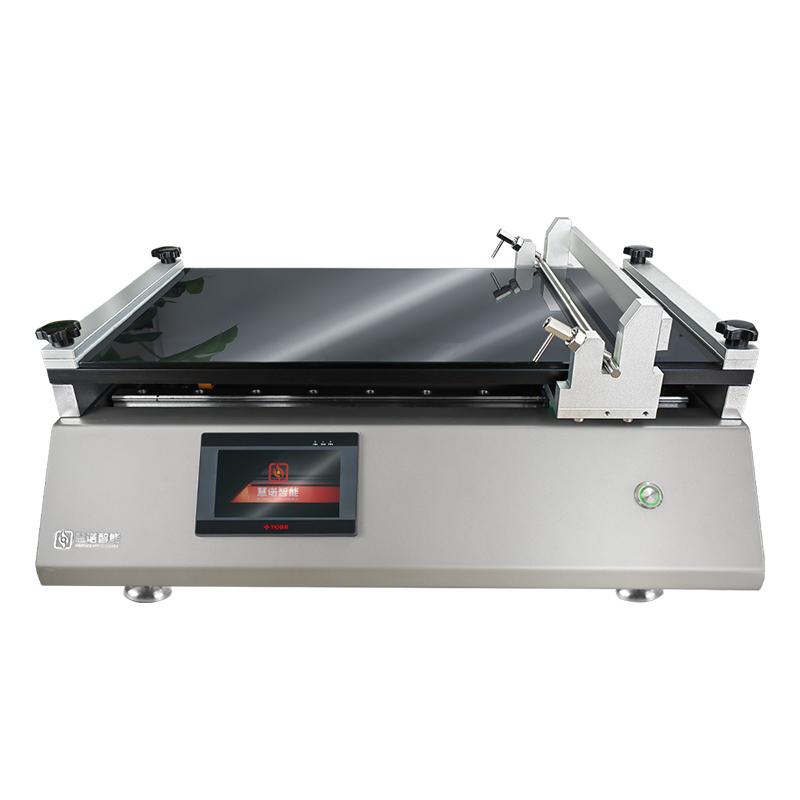

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a basic bar Coater. It adopts a new bar Installation method with speed control and application length adjustment functions. It is suitable for High Accuracy automatic film in laboratories and Moulding proofing in laboratories such as university research institutes, New material, and lithium batteries.
Features
1. Glass countertop is 3c certified national standard genuine full tempered Glass plate, high Smoothness, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. High Accuracy film applicator, original imported bar film uniform accuracy
3. Touchscreen control panel, easy to operate
4. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Polymer materials, pharmaceuticals and other film sample preparation
Steps
1. Prepare the substrate and samples
2. Set application length and Spreader speed parameters
3. Fix the substrate to the coating table
4. Start the device for automatic filming
5. Remove the sample after finishing the film
Notice
• Confirm that the power supply is 220V 50HZ before use
• The coating table material can be aluminum alloy or Glass, if the specified material needs to be confirmed with customer service
• The coating speed can be stepless speed regulation, the range is 1~ 300mm/s
• Optional features include Drawdown blade, Heating, Vacuum chuck, depending on requirements
