Overview

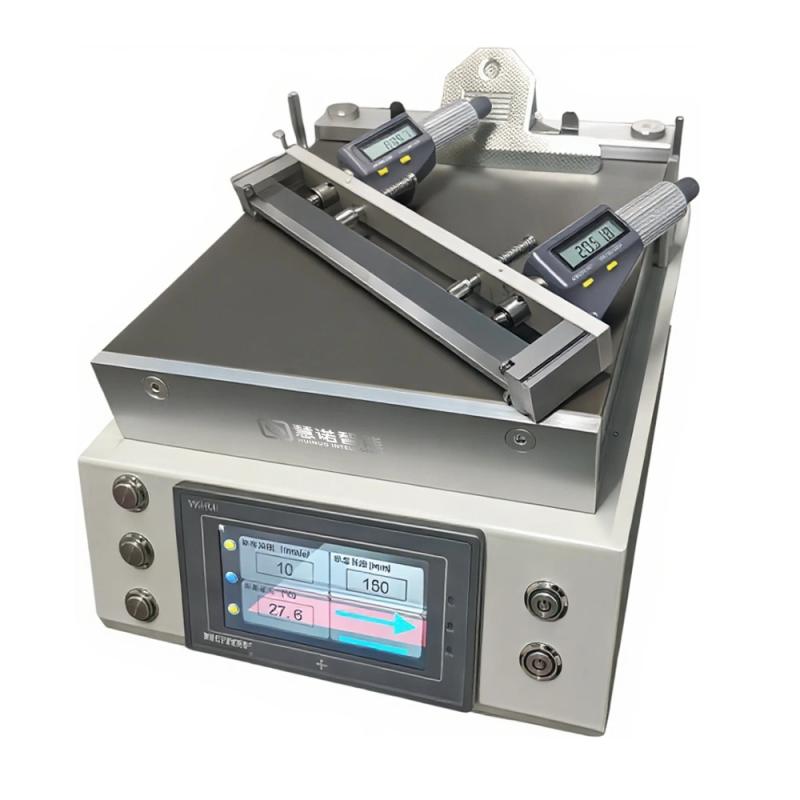

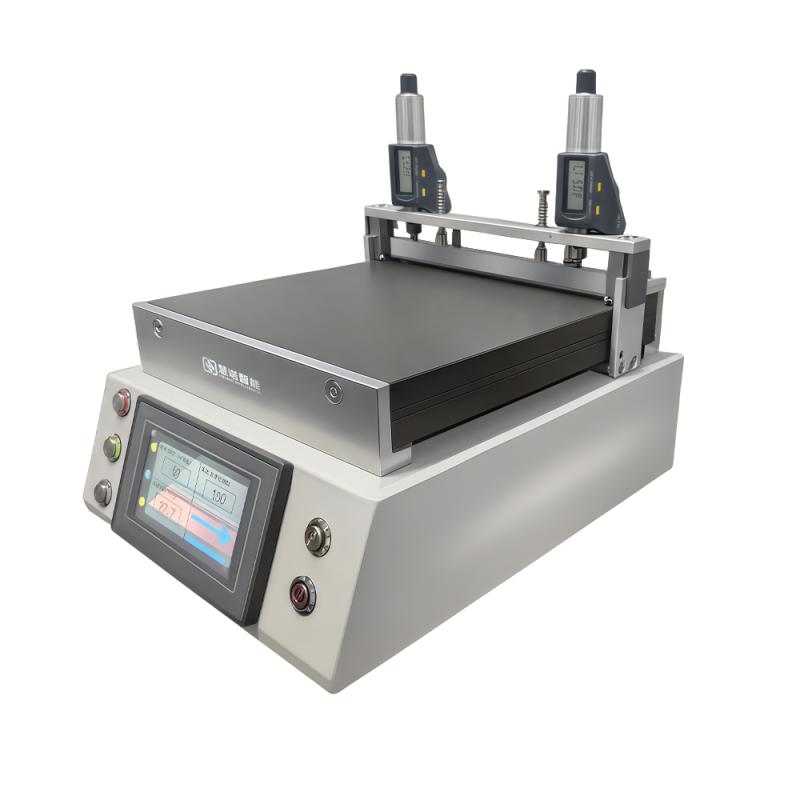

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a small film Applicator that can be used in glove boxes. It adopts bar and Drawdown blade double coating methods. The separable tool holder is designed to be easy to clean. Drawdown blades are quickly replaced. Closed-loop motor drive precisely controls the scraping distance and speed. Planetary gear reducer + rack and pinion drive is more reliable and durable.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy

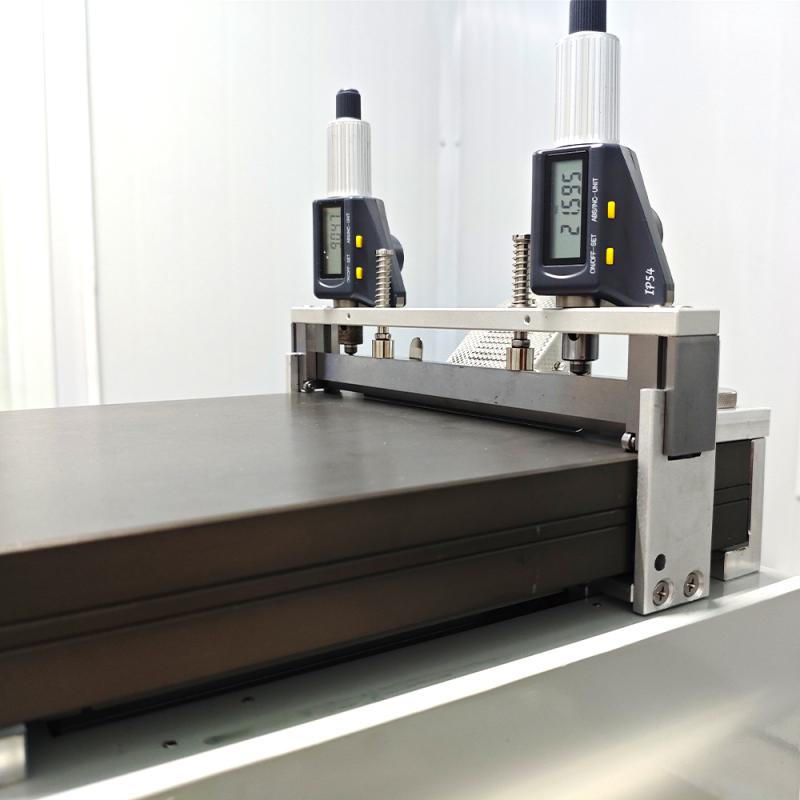

3. Separable tool holder for easy cleaning, Magnetic Drawdown blade for easy replacement
4. High Accuracy film applicator, original imported bar film uniform accuracy

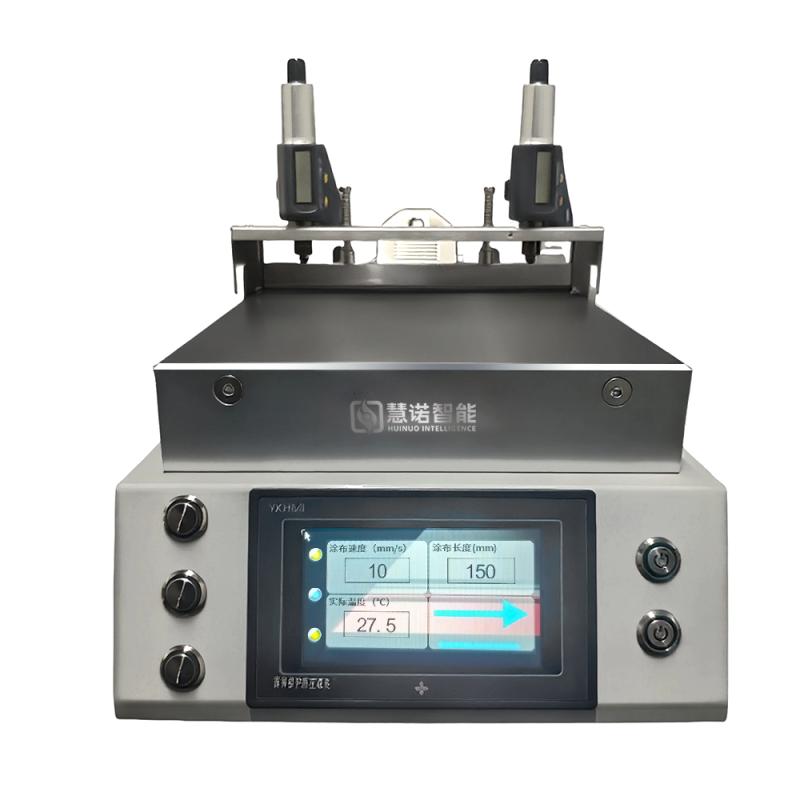

5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
7. Vacuum chuck and heating
8. Close-loop motor drive precisely controls scraping distance and speed
9. Planetary gear reducer + rack and pinion drive is more reliable and durable
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed, etc.)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Select coating method (bar or Drawdown blade)
5. Start Film Applicator Spreader
6. Clean the device after finishing the Spreader
Notice
• Please read the instructions carefully before operation
• Ensure that the power supply of the equipment meets the requirements (100V~ 220V/50~ 60HZ)
• The size of the coating table and the effective coating area are subject to the actual product
• The meyer rod coating thickness range depends on the different rod numbers
• Blade Coating thickness range is 0.1~ 10mm
• Heating Temperature range is RT +~ 180 ℃
• Device weight is about 25kg, pay attention to safety when handling
• Customized functions need to be confirmed in advance
