Overview

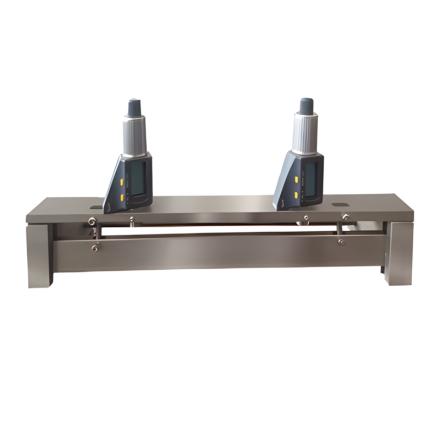

HuiNuo KTQ Series Adjustable Film Applicator is a new generation of Drawdown blade removable film applicator. Drawdown blade design solves the cleaning problem of high viscosity and easy curing materials. The series provides a variety of application widths from 50mm to 600mm to meet the needs of different application scenarios.
Features
1. Magnetic detachable Drawdown blade structure, easier to clean
2. Precise thickness adjustment with Qingliang differential head (scale and digital display optional)
3. Drawdown blade High Hardness die steel material, hard aluminum oxide frame, lightweight and wear-resistant and corrosion-resistant
4, film thickness range 0~ 5000μm adjustable
5. Drawdown blade accuracy +/- 2μm to 5μm (depending on the specific model)
6. Provide a variety of application widths of 50-600mm and support customization
Principle
Based on the principle of differential gap scraping, the device realizes the uniform preparatory of wet-film through the magnetic suction Drawdown blade structure, and uses the green differential head to precisely adjust the Drawdown blade gap to control the film thickness.
Applications
Coatings, inks R & D and Quality control, Lithium battery Electrode prepative, Optical inspection Film Spreader, Adhesive testing, Nanomaterials research
Steps
1. Select the desired application width and install the Drawdown blade
2. Adjust the Drawdown blade gap to the target thickness using the Qingliang differential head
3. Place the material to be coated on the substrate
4. Smooth scraping and preparing wet-film
5. Drawdown blade for cleaning
Notice
• Make sure the surface of the substrate is flat and clean before scraping
• Avoid damage to the differential head with excessive force when adjusting the thickness
• Drawdown blade cleaning in time after use to prevent material curing
• Keep the equipment drying during storage to avoid corrosion
• Drawdown blade sharp edges to prevent scratches
