Overview

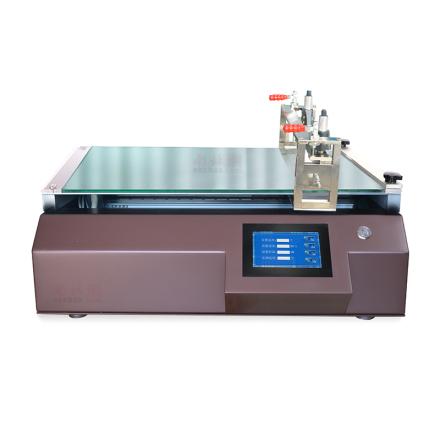

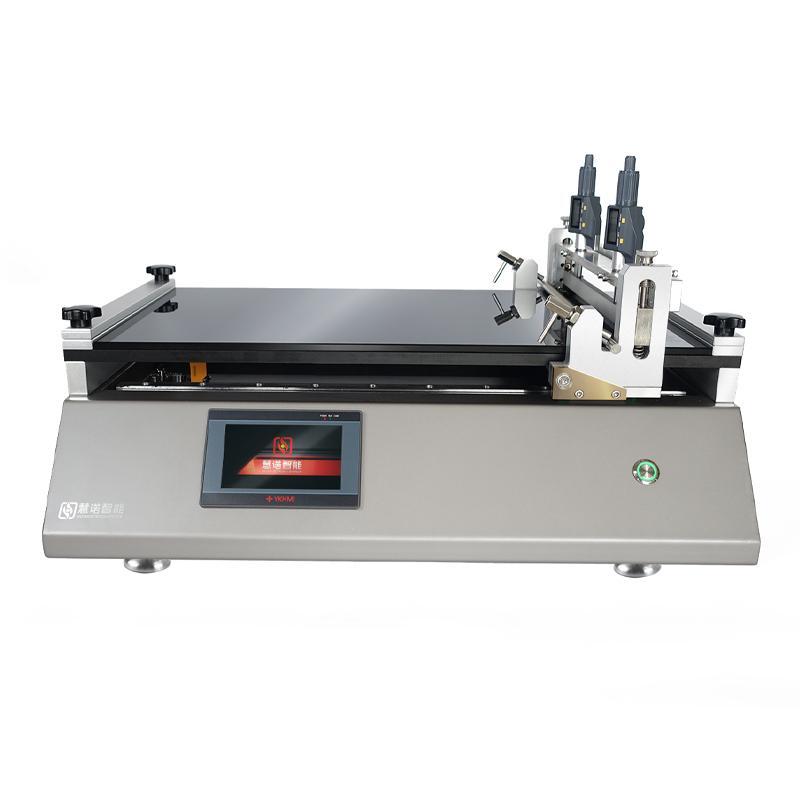

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a drawdown blade type Automatic film applicator, using adjustable Blade Coating, innovative clamshell drawdown blade head design greatly improves cleaning efficiency, easy to clean, with speed control and application length adjustment function, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New materials, lithium batteries, glue, Resin, etc.
Features
1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Touchscreen control panel, easy to operate
5. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. High Accuracy film is achieved by adjusting the drawdown blade and Spreader parameters by using Blade Coating.
Applications
Moulding proofing is carried out in laboratories such as research institutes in colleges and universities, New materials, lithium batteries, glues, Resin, etc. Coatings, inks, paints, Stock, lithium batteries, Pressure sensitive adhesives, Resin, glues, polymer materials, pharmaceuticals and other film samples can be scraped on Glass, cardboard, cloth.
Standards
Glass countertop is 3c certified national standard genuine full tempered Glass plate
Steps
1. Set Spreader parameters through the Touchscreen control panel
2. Adjust application length and Spreader speed
3. Use a fixture to fix the substrate
4. Start the device for automatic filming
5. Use clamshell drawdown blade for cleaning after completion
Notice
• Glass countertop heat resistance 600 ℃, pay attention to temperature control when using
• Spreader thickness range 0~ 10mm, need to be used within the range
• Clean the clamshell drawdown blade in time after use
• Device power 400w, ensure that the power supply matches 100V~ 220V/50~ 60HZ
• Optional functions such as heating and Vacuum chuck need to be configured according to actual needs
