Overview

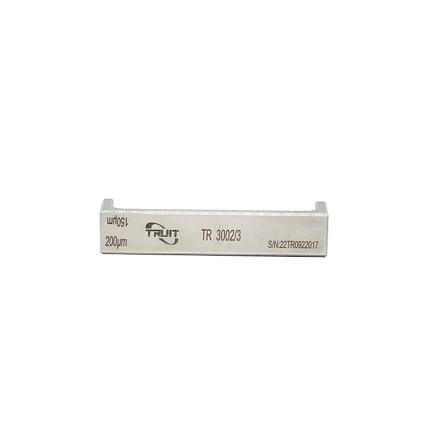

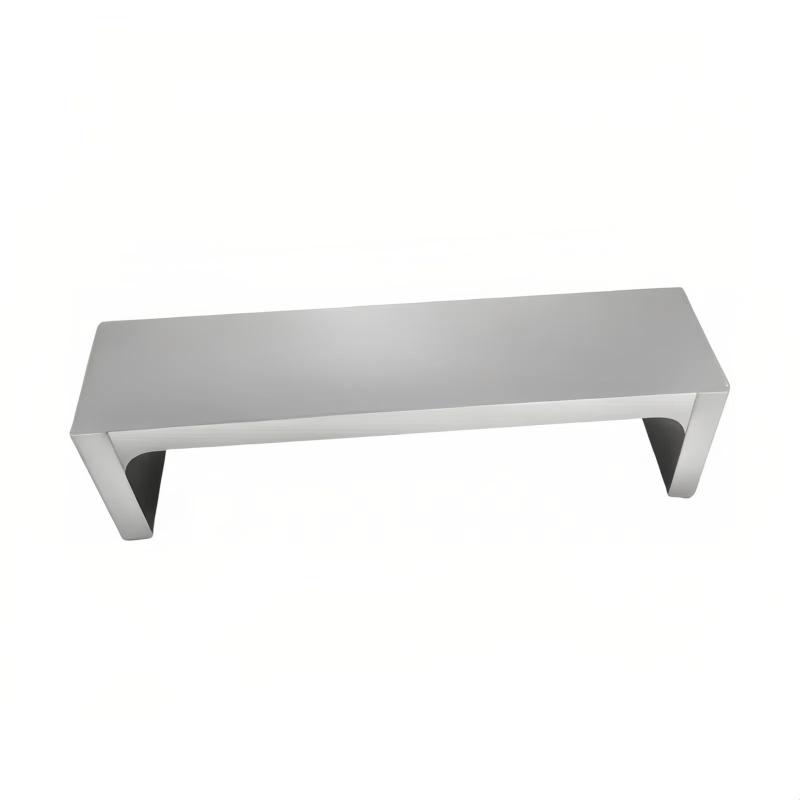

QTG 150/200μm double-sided Applicator is a laboratory manual film applicator with a film thickness of 150μm and 200μm, an application width of 100mm, a total length of 120mm, and an accuracy of +/- 2μm. It is made of high-carbon chromium wear-resistant and anti-corrosion stainless steel. It is tested by imported three-coordinate before leaving the factory to ensure dimensional accuracy. It is suitable for glue, Coating paints, inks, polymer materials and other Moulding. It can be equipped with Film Applicator to automatically scrape the film and support customized services.
Features
1. Made of 9Cr18Mo High Hardness Stainless Steel, Abrasion Resistance and corrosion resistance are good, Hardness value reaches 50~ 55HRC
2, film accuracy of +/- 2μm
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications
4, using imported three coordinate detection accuracy, with factory test report, stand Measurement
Principle
The Double Sided Applicator manually scrapes the substrate to create a uniform wet-film. Its double sided design offers different thickness options, and High Accuracy stainless steel ensures accurate film thickness and width for the lab Moulding process.
Applications
Glue, Coating paints, inks, Polymer materials
