China TBJ-A1-DJ13 Automatic Film Applicator bar Film Applicator with automatic feeding system

Name: China TBJ-A1-DJ13 Automatic Film Applicator bar Film Applicator with automatic feeding system
Brand: zy
SKU: NB048952
Price: 5172.0 USD
Availability: PreOrder

$ 5172.00Ex works

Spreader thickness range 1~ 571.5μm, accuracy +/- 0.001mm, speed 5~ 200mm/s, automatic feeding system with stirring and air source pressure control, can be customized to improve application flexibility.

Model

TBJ-A1-DJ13

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB048952

Service :The delivery and service By NBCLab.Com

Overview

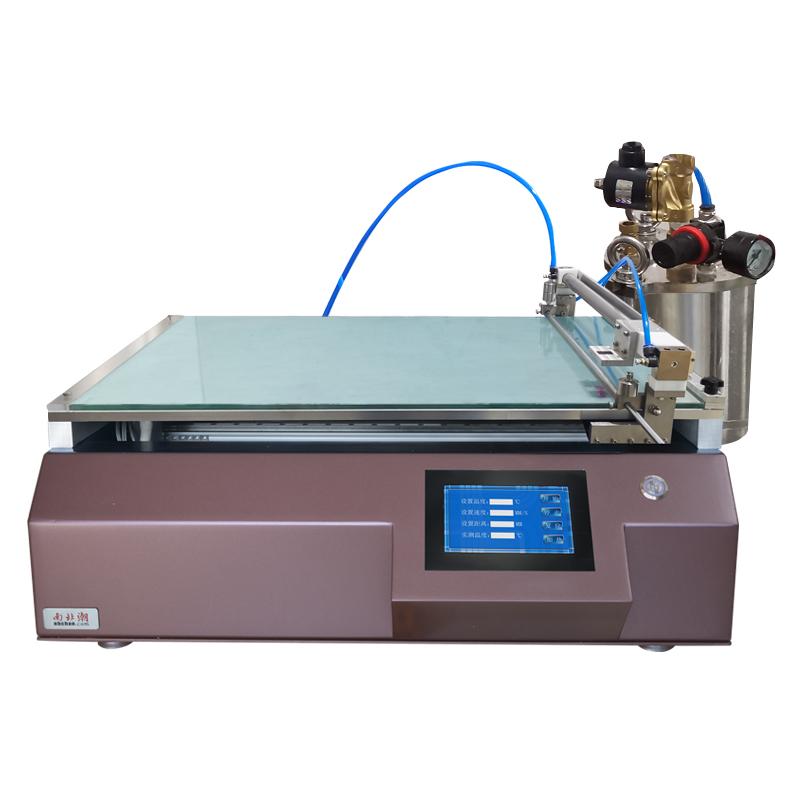

The Touch Lab TBJ-A1 bar Film Applicator (with automatic feeding system) is a newly upgraded product for Spreader accurate wet-film on different substrates, which can repeatedly and continuously prepare smooth, flat and flawless test samples. After the equipment was put into the market, it has been favored by many familiar companies, R & D institutions, Universities & colleges.

Features

1. Adopt bar coating method, Spreader thickness range 1~ 571.5 μm, accuracy +/- 0.001mm; 2. Coating speed 5~ 200mm/s, support customization; 3. Effective coating area 1000 * 300mm, can be customized; 4. Equipped with automatic feeding system, add Mixing Tank volume 1L, with automatic stirring function; 5. Feeding motion mode is reciprocating linear motion, adjustable speed; 6. Control mode is LCD Touchscreen; 7. Substrate clamping method is mechanical fixed fixture; 8. Optional Accessories and custom functions.

Principle

Spreader wet-film on different substrates by bar coating method, automatic feeding system uses air source pressure to extrude the material from the Mixing Tank, realizes uniform feeding by reciprocating linear motion, and cooperates with precision transmission system to ensure Spreader accuracy and conformity.

Applications

Companies, Research Institutions, Universities & colleges

coating method
Bar Spreader
meyer rod coating thickness Range
1-571.5 μm (Spreader thickness according to bar model)
meyer rod coating accuracy
±0.001mm
coating speed
5~ 200mm/s (< 5mm/s can be customized)
Coating Size
300*1000mm
Dimension
880 * 1000 * 500Mm (subject to actual design parameters)
Coating table material
Glass plate
Control Panel
LCD Touchscreen
Substrate clamping method
Mechanical fixture
Power supply Voltage
Single phase 220V 50Hz 100VA
weight
180kg
Shaft transmission mode
timing belt
Mixing Tank Volume
1Kg (with automatic mixing function)
Power supply Voltage
220V,50Hz
Feeding principle
Air source pressure flows out
Feed Sport Mode
Reciprocating linear motion
Feeding back and forth traverse speed
2~150mm/s
spit Volume
Adjustable (by adjusting the air pressure and the running speed of the discharge port)
Feeding system air source
0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
Power Voltage of charging system
220V,50Hz
Mixing Tank Pressure
≤8Mpa
Mixing Tank Material
304 stainless steel (wall thickness 4mm)
Mixing Tank Configuration
Safety valve, pressure regulating valve, pressure gauge, discharge valve
Mixing Tank Volume
1L
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader
