Overview

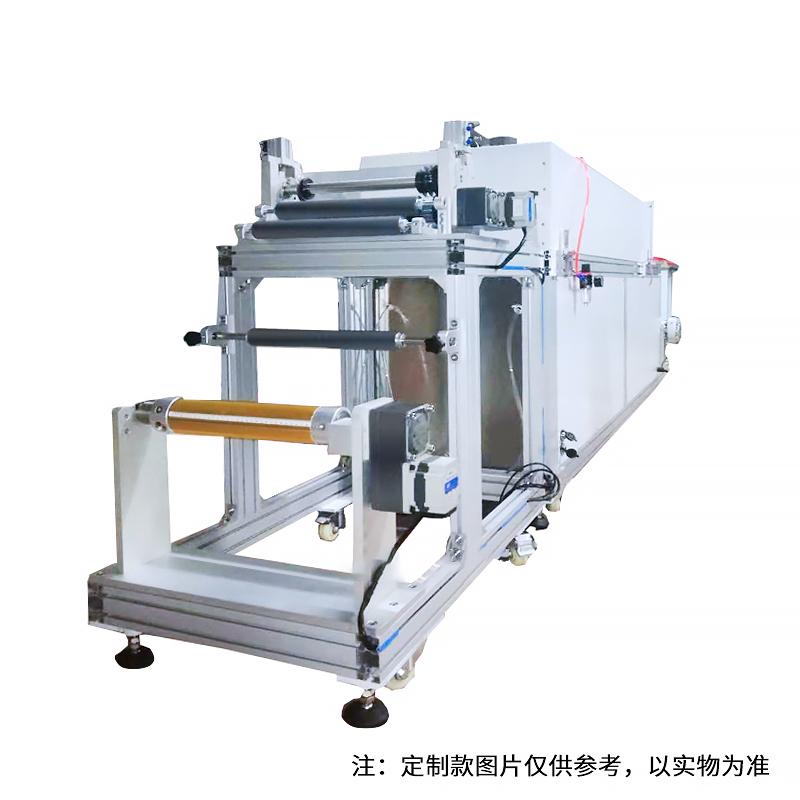

Rxg-10/600 Coil Blade Coating Machine is a continuous experimental Film Applicator with the functions of unwinding, scraping, drying and winding. The application width is 600mm, the wet film thickness is 0.005-3mm, and the heating temperature of the rubber roller reaches 200 ° C. It is suitable for UV, stickers, plasters, etc. The machine consists of a body, a glue width adjustment device, a discharge rack, a rubber roller group, a thickness adjustment dial, a transmission platform, a traction roller group, and a transmission mechanism.
Features
1. Using aluminum alloy + high electrostatic spray plate body structure
2. Equipped with a gluing width adjustment device, composed of food-grade plastic and adjustable braces
3. Configure two discharge racks with automatic deviation correction function
4. The coating roller group is made of double-drum precision machining parts, with smooth transmission
5. Equipped with a thickness adjustment dial meter to precisely control the thickness of the Spreader
6. The transmission platform is made of stainless steel
7. The traction roller set is well designed and easy to operate
Principle
The equipment releases the substrate through the unwinding device, and is glued by the Blade Coating device. The thickness of the Spreader is precisely adjusted by the dial meter. The glued substrate is smoothly transferred to the drying area through the transmission platform, and the drying tunnel temperature can reach 200 ° C. Finally, the winding is completed through the traction roller group to achieve continuous Spreader operation.
Applications
UV, sticker, plaster
Steps
1. Place the substrate on the discharge rack
2. Adjust the glue width and thickness to the required parameters
3. Drag the substrate between the upper and lower rollers of the traction roller
4. Tighten the handwheel on the rack to make the traction roller contact the substrate
5. Start the device for Spreader operation
6. Spreader process monitoring to ensure mass stability
Notice
• Spreader thickness adjustment needs to be operated accurately according to the indicator
• Check whether all components are normal before the equipment runs
• Pay attention to safety during operation and avoid contact with high-temperature parts
• Power supply voltage must meet equipment requirements
• Equipment parameters are subject to actual customization
