Overview
Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a Drawdown blade type Automatic film applicator with adjustable Blade Coating. The innovative clamshell Drawdown blade head design greatly improves the cleaning efficiency and is easy to clean. It has speed control and application length adjustment functions. It is suitable for laboratory High Accuracy automatic film. Moulding proofing is carried out in laboratories such as university research institutes, New material, lithium battery, glue, Resin, etc.
Features
1. Glass countertop is 3c certified national standard genuine all tempered Glass plate, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2. Big brand differential regulator, high film thickness control accuracy
3. Clamped Blade Coating Head for Easy Cleaning
4. Touchscreen control panel, easy to operate
5. Free adjustment of application length and Spreader speed
Principle

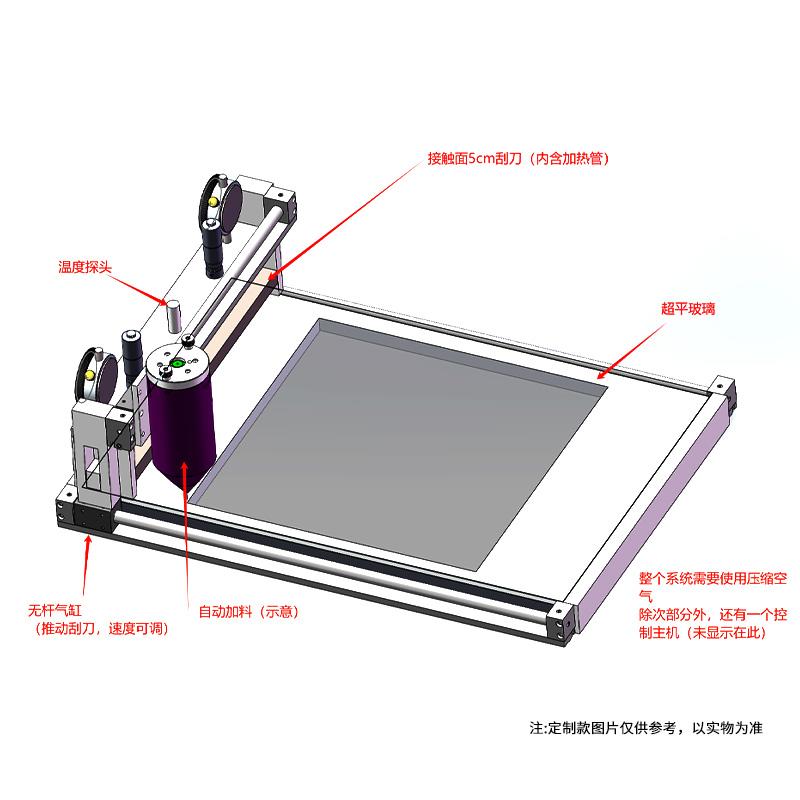

The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. The coating method is to push the Blade Coating by the cylinder, and the operation mode of the Drawdown blade is to flow the pressure of the air source outward, reciprocating linear motion, and controlling the coating speed through the stepless speed regulation of the cylinder valve.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Standards
3C certification national standard
Steps
1. Prepare the substrate (e.g. Glass, cardboard, fabric) and fix it to the fixture
2. Set Spreader parameters (application length, Spreader speed, Drawdown blade heating temperature, etc.) through the Touchscreen control panel
3. Start the device for automatic filming
4. After the Spreader is completed, use the clamshell Drawdown blade for easy cleaning
Notice
• Glass coating table material, use to avoid violent collision
• Blade Coating thickness range is 0~ 10mm, which needs to be adjusted according to sample characteristics
• The air source of the feeding system needs to be provided by the customer to provide compressed air, and the pressure is 0.6Mpa.
• Device power is 400w, ensure that the power supply meets the requirements of 100V~ 220V/50~ 60HZ
• Customized features such as automatic feeding systems need to be configured on demand
