$ 3706.00Ex works
Measurement accuracy of +/- 0.1 °, support for dynamic contact angle analysis, equipped with High Accuracy Optical inspection swirl/spin table and 3 million pixel camera, can handle powder and superhydrophobic materials, database storage 2 million records.
Category : Contact Angle Goniometer
Brand : DeYouTe
SKU : NB048990
Service :The delivery and service By NBCLab.Com

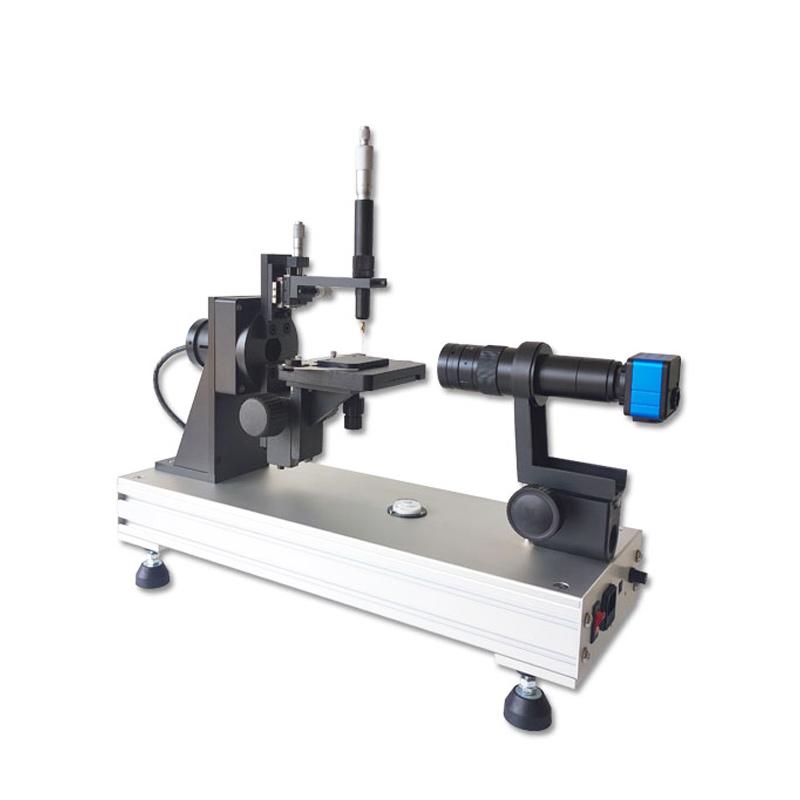

The JY-PHB contact angle tester is a surface performance testing instrument for the measurement of liquid-to-solid contact angle. It can measure contact angle, forward angle, backward angle, rolling angle, surface energy, wetting performance and other indicators through image contour acquisition and analysis. It has high cost performance and comprehensive functions to meet the needs of conventional and some unconventional measurement.
1. measurement of static contact angle, analysis of liquid on the solid surface spread, penetration, absorption and other wetting behavior 2. Measurement of dynamic contact angle, including rolling angle, forward angle, backward angle, evaluate material surface uniformity and Smoothness 3. Real-time monitoring of contact angle and surface energy changes, generation time-result Linear dispersion analysis map 4. Support the measurement of powder, non-planar materials, superhydrophobic, superhydrophilic materials 5. Calculate solid surface energy, dispersion force, polar force, non-polar force, electron receptor, electron donor 6. Automatic analysis of adhesion work, moisture invasion work, and spread coefficient

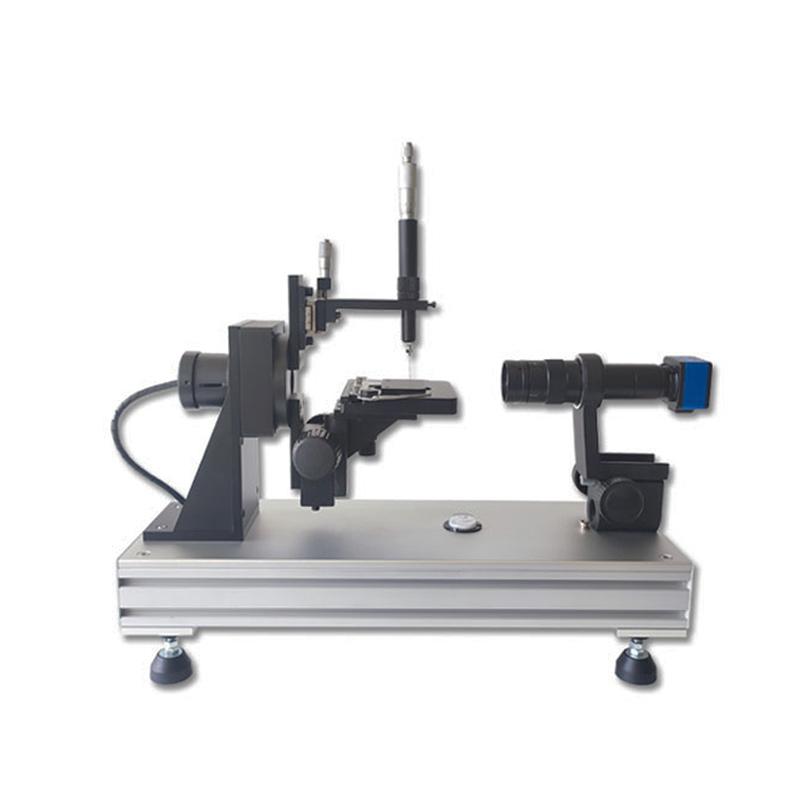

The contact angle measuring instrument is composed of a hardware drive system, a manual liquid inlet system, a sample stage, an image acquisition and a software analysis system. The hardware drive system supports instrument operation, dripping, Illuminant adjustment and software operation; the accuracy of the manual liquid inlet system reaches 0.1 μL; the sample stage adopts three-dimensional design and High Accuracy Optical inspection swirl/spin stage to realize the turning method test; the image acquisition uses SONY high-speed industrial chip, 30 frames/S, 3 million pixels; the software system provides international popular fitting methods and a powerful database, which can store 2 million test records.
Medical, chemical, surface preparation, Glass manufacturing, screens, lenses, semiconductors, electronic circuits, paint inks, biological sciences, Spinning & weaving fibers, university materials research and analysis
Not mentioned
Not mentioned
Not mentioned
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
