Overview

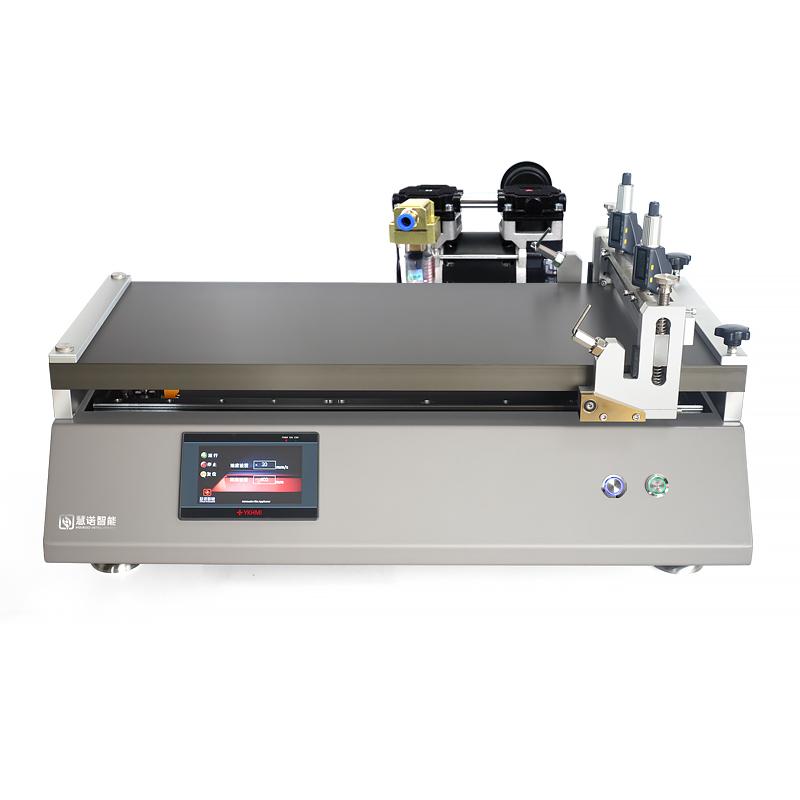

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is Drawdown blade type Automatic film applicator, with heating function, clamshell Drawdown blade head greatly improves Spreader efficiency, easy cleaning, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in university research institutes, New material, lithium battery, glue, Resin and other laboratories.
Features
1) Surface hard treatment aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument.
2) Big brand differential regulator, high film thickness control accuracy
3) With heating and Vacuum chuck function
4) Drawdown blade design, fast and convenient cleaning
5) Touchscreen control panel, easy to operate
6) Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Paint, inks, hot-melt adhesive, Stock, Lithium battery, Pressure sensitive adhesive, Resin, Glue, Polymer material, Pharmaceutical and other film sample preparation
Steps
Set Spreader parameters, including application length and Spreader speed.
2) Fix the substrate on the Spreader table.
3) Adjust the heating temperature as required.
4) Start the device for automatic filming.
5) After the film is completed, clean the clamshell Drawdown blade.
Notice
• Ensure that the power supply of the equipment meets the requirements before operation.
• Spreader process pay attention to safety, avoid contact with heating parts.
• Regularly clean the coating table and Drawdown blade to maintain accuracy.
• Turn off the power supply in time after use to prevent accidental startup.
