Overview

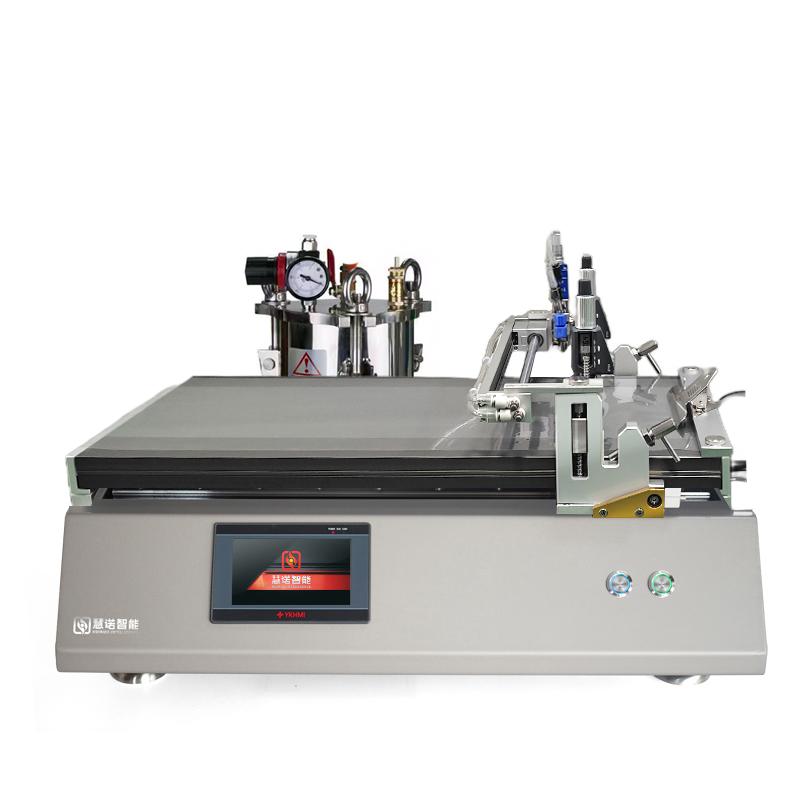

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a bar type Automatic film applicator with heating and Vacuum chuck functions. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, which is easy to clean. It supports speed control and application length adjustment. It is suitable for laboratory High Accuracy automatic film. Moulding proofing in laboratories such as university research institutes, New material, lithium batteries, glue, Resin, etc.
Features
1) Surface Hard Treatment Aluminum Alloy Table, Hardness High Wear Resistance, Table Smoothness Imported High Accuracy Instrument for Testing
2) Big brand differential regulator, high film thickness control accuracy
3) With heating and Vacuum chuck function
4) High Accuracy film applicator with high accuracy of original imported bar film
5) Touchscreen control panel, easy to operate
6) Free adjustment of application length and Spreader speed
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Paint, inks, paints, Stock, Lithium Battery, Pressure sensitive adhesive, Resin, Glue, Polymer Materials, Pharmaceuticals and other film sample preparation, can be scraped on Glass, cardboard, fabric
Steps
Spreader parameters (such as application length and speed)
2) Fixed substrate (using Vacuum chuck or fixture)
3) Install bar film applicator
4) Start the film process
5) Cleaning equipment after completion of film
Notice
• Make sure the vacuum pump air source meets the requirements before use (0.6Mpa compressed air)
• Select the appropriate bar and Spreader parameters according to the sample characteristics
• Regularly check countertop Smoothness and equipment cleaning
• Pay attention to temperature control when heating to avoid overheating
• Customized functions require advance confirmation of technical specifications
