Overview

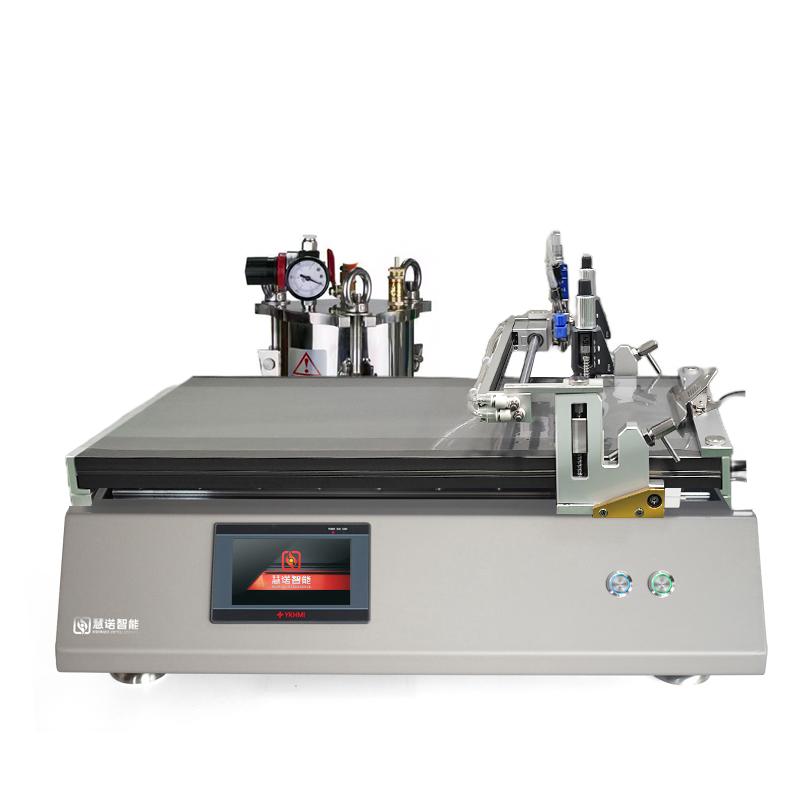

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a bar type Automatic film applicator with heating and Vacuum chuck function, innovative bar Installation method and clamshell Drawdown blade greatly improve the efficiency of Spreader, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as University Research Institute, New material, lithium battery, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
Automatic Film Applicator controls the Spreader head and Spreader parameters to evenly Spreader the sample on the substrate to form the desired film. Using the bar coating method, the coating speed is controlled by the stepless speed regulation of the cylinder valve, and the substrate is fixed by Vacuum chuck and fixture. Optional heating function ensures film uniformity.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate (Glass, cardboard, fabric, etc.) and place it on the Spreader table
2. Vacuum chuck and fixture fixing substrate
3. Set Spreader parameters (speed, length, temperature, etc.)
4. Install bar film applicator
5. Start the device for automatic filming
6. Cleaning equipment after film
Notice
• Make sure that the equipment power supply and vacuum pump are connected normally before use
• Vacuum chuck function needs to check whether the vacuum hole is smooth
• Pay attention to the temperature setting when using the heating function to avoid overheating
• The bar film applicator is cleaned in time after use to maintain accuracy
• Customized functions such as automatic feeding system require customers to provide their own compressed air source (0.6Mpa)
• Follow the equipment specifications during operation to avoid over-limit use
