Overview

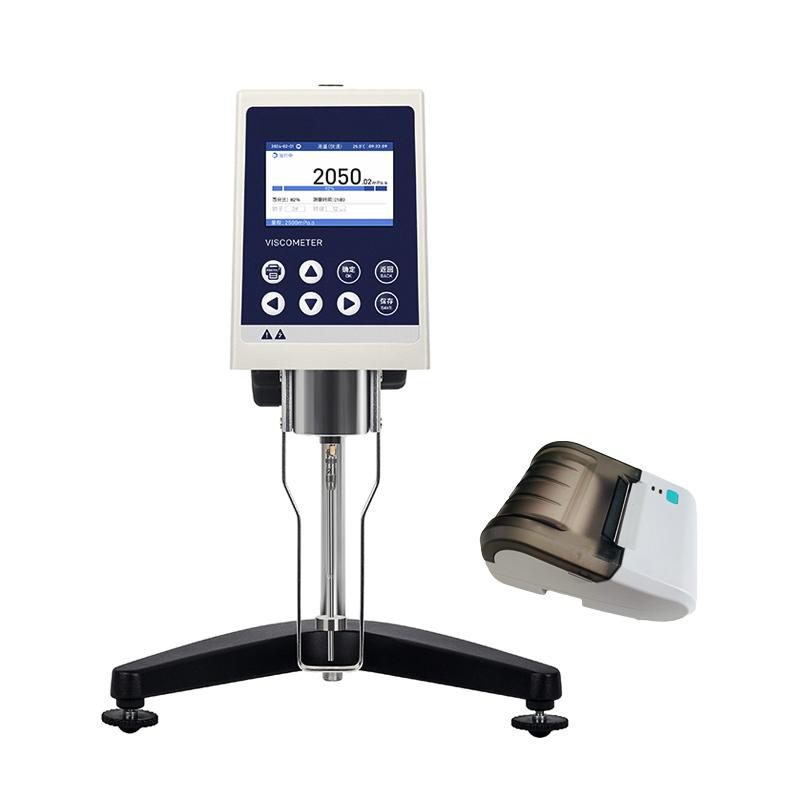

The NDJ-5S rotational viscometer is a HuiNuo brand laboratory instrument designed for efficient and accurate measurement of fluid viscosity. The device features a digital display Operating interface, viscosity measurement range of 1 to 100,000 mPa · s, standard 1/2/3/4 rotor, optional No. 0 rotor for low viscosity sample measurement, Rotation speed is set to 6/12/30/60 rpm, High Accuracy measurement capability, reproducibility is +/- 1% F. S, Measurement accuracy is +/- 2% F. S, Display resolution up to 0.01 mPa · s. The system is feature-rich and supports conventional measurement, Linear dispersion measurement, recording, viscosity conversion and printing functions. Equipped with USB and RS232 Interface, it can easily record and transfer measurement data, and can store up to 50 measurement records. In addition, the device supports switching between Chinese and English Operating languages, and has a compact design. The lifting Travel is 250mm, the Dimension is 280 × 260 × 395mm, and the Net weight is about 5kg, which is suitable for use in a laboratory environment.
Features
1. Digital Operating interface, intuitive and easy to use
2. Wide viscosity measurement range, covering 1~ 100000 mPa · s
3. Standard with a variety of rotors, optional No. 0 rotor for low viscosity samples
4. Multi-gear Rotation speed setting (6/12/30/60 rpm) to adapt to different application scenarios
5. High Accuracy measurement, reproducibility +/- 1% F.S, accuracy +/- 2% F.S
6. High resolution display up to 0.01 mPa · s
7. Multifunctional system for conventional measurement, Linear dispersion measurement, recording, viscosity conversion and printing
8. Equipped with USB and RS232 Interface for easy data transfer
9. Can store 50 measurement records
10. Operating language switch
11. Compact Design, 250mm Lift Travel, Easy Operation
12. Adapt to a variety of environmental conditions, Operating temperature 0 ℃~ 40 ℃, Humidity 20%~ 80%
Principle
The rotational viscometer measures the viscosity by the resistance of the rotor as it swirls/spins in the fluid. The device drives the rotor to set the Rotation speed (e.g. 6/12/30/60 rpm) swirl/spin, and the resistance of the fluid to the rotor is converted into the viscosity value, which is displayed through the digital display interface. The system utilizes High Accuracy Sensors and algorithms to ensure the accuracy and reproducibility of measurement results.
Applications
Laboratory fluid viscosity measurement, low viscosity sample testing, high viscosity sample testing, scientific research experiments, industrial quality control
Steps
1. Connect the power supply and turn on the device.
2. Operating language (English)
3. Install appropriate rotor (such as standard 1/2/3/4 or optional 0)
4. Set the required Rotation speed (6/12/30/60 rpm)
5. Immerse the rotor in the sample to ensure the correct depth
6. Start the measurement and observe the digital display interface reading
7. Linear dispersion measurement, recording data or viscosity conversion
8. Export data using USB or RS232 interface
9. Print measurement results (if required)
10. Store or erase measurement records
Notice
* Ensure that the Working Ambient Temperature is within the range of 0 ℃~ 40 ℃
* Keep the relative humidity at 20%~ 80%, no condensation
Check whether the rotor is in good condition before use to avoid damage
* Correct selection of rotor and Rotation speed to suit sample viscosity
Avoid operating equipment in extreme environment conditions
* Periodically calibrated to ensure Measurement accuracy
Make sure the interface connection is stable during data transmission
* Note the capacity limit when storing measurement records (up to 50 pieces)
Adhere to laboratory safety standards when operating
