Overview

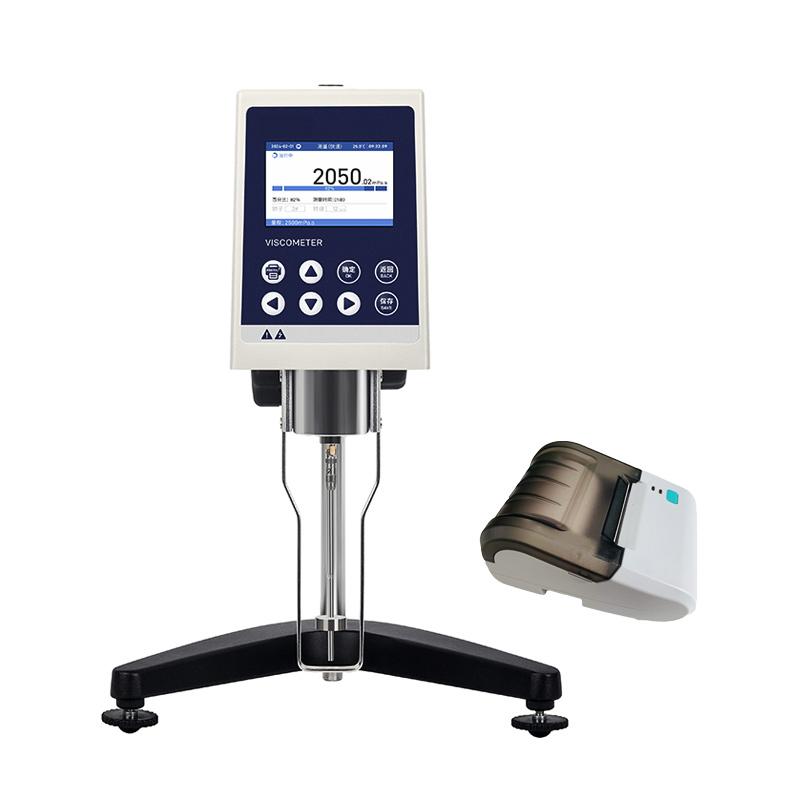

The NDJ-8S rotational viscometer is a high-performance laboratory measuring instrument from the HuiNuo brand, designed to meet the needs of different fluid viscosity measurement. It features a digital display Operating interface for a wide range of viscosity measurement from 1 to 2,000,000 mPa · s, standard 1/2/3/4 rotor, optional 0 rotor to extend low viscosity measurement capabilities, Rotation speed settings are diverse, and support for conventional measurement, Linear dispersion measurement, recording, viscosity conversion and printing functions.
Features
The viscosity measurement range is wide, from 1 to 2 million mPa · s, covering low viscosity to high viscosity samples.
2. Standard 1/2/3/4 rotor, optional 0 rotor can be extended low viscosity measurement.
3. Rotation speed settings are various, including 0.3, 0.6, 1.2, 3, 6, 12, 30, 60 rpm.
4. High Accuracy measurement, reproducibility +/- 1% F.S, Measurement accuracy +/- 2% F.S, Display resolution 0.01 mPa · s.
5. The system is rich in functions and supports conventional measurement, Linear dispersion measurement, recording, viscosity conversion and printing.
6. Equipped with USB and RS232 Interface to store up to 50 measurement records.
7. Operating language switch to adapt to different user habits.
8. Compact design, Lift Travel 250mm, Dimension 280 × 260 × 395mm, Net weight of about 5kg, easy to operate and store.
9. Working Ambient Temperature 0 ℃~ 40 ℃, relative humidity 20%~ 80%, power supply 100~ 240V, 50~ 60Hz, globally applicable.
Principle
The NDJ-8S rotational viscometer measures viscosity by swirling/spinning the rotor in the fluid. Rotation speed swirl/spin is preset. The resistance of the fluid to the rotor is detected and converted into viscosity value. The digital display interface displays the results in real time. Measurement mode and data processing are supported.
Applications
Laboratory fluid viscosity measurement, industrial quality control, scientific research experiments, chemical production, food testing, pharmaceutical research and development, Petrochemicals, coating analysis
Steps
1. Connect the power supply and turn it on, select Operating language.
2. Install the appropriate rotor to ensure sample readiness.
3. Set the desired Rotation speed and start the measurement.
4. Observe the digital display interface and record the viscosity value.
5. Linear dispersion measurement, recording or viscosity conversion using function keys.
6. Export data or print results via USB or RS232 interface.
7. After the measurement is completed, turn off the equipment and clean the rotor.
Notice
• Ensure that the working Ambient Temperature is between 0 ℃~ 40 ℃, the relative humidity is 20%~ 80%, and there is no condensation.
• Power supply voltage is 100~ 240V, 50~ 60Hz to avoid voltage instability.
• Install the rotor correctly to avoid damaging the equipment or affecting the Measurement accuracy.
• Keep the sample uniform during measurement to avoid bubble interference.
• Regularly calibrate equipment to ensure reproducibility and accuracy.
When storing measurement records, pay attention to the stability of the Interface connection.
• Clean the rotor and equipment in time after operation to prolong the service life.
