Overview

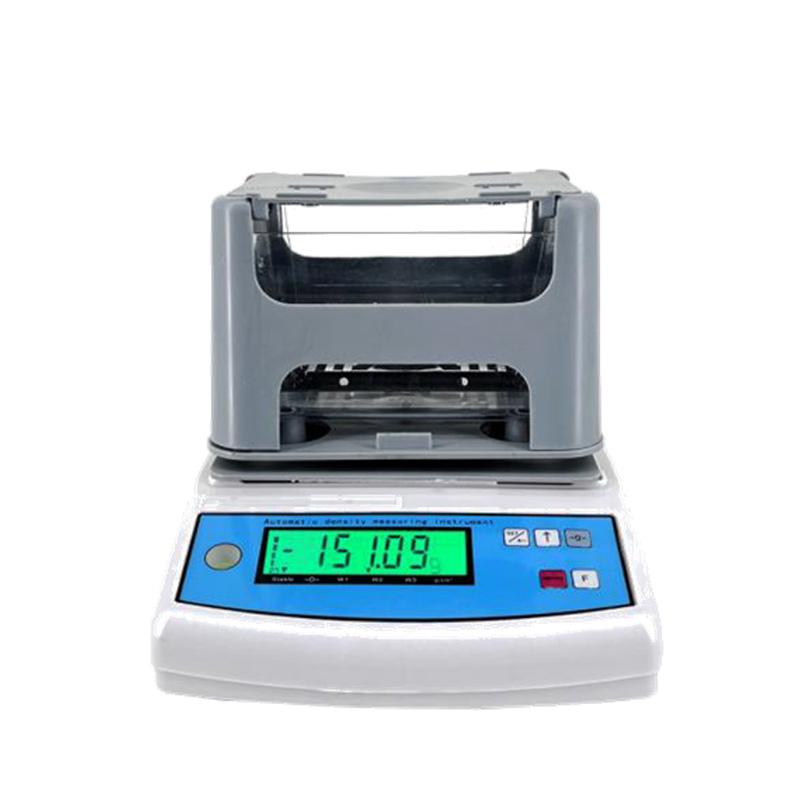

Jinheyuan MH-300A Solid Density Meter is a cost-effective digital density measuring instrument. It adopts China host, with stable performance, simple and fast operation, and can read the density value instantly. The weighing accuracy can reach one thousandth, and the density value can be displayed in only two steps. No manual calculation is required. The operation is convenient and time-saving, and the measurement is accurate and efficient. It is suitable for production sites and quality monitoring and other fields.
Features
1. Directly read the density and volume of any shape density > 1 or < 1 solid, block, particle, float, foam
2. No need for manual calculation, quickly measure the specific gravity of the product
3. Automatic Zero tracking, buzzer alarm, overload alarm function
4. With temperature compensation setting, solution compensation setting function, the operation is more user-friendly
5. Integrally formed transparent sink with water level line, easy to assemble, wear-resistant, drop-resistant, anti-corrosion, can clearly observe the sample in the medium
6. True color screen display makes observation more comfortable
7. Built-in battery, more suitable for field testing
8. Purchase different density test devices to achieve liquid and solid density testing
Principle
The Density Meter automatically calculates density and volume by measuring the weight of the sample in an air neutralizing medium without manual calculation. High Accuracy Weighing Sensor combined with temperature compensation and solution compensation ensures accurate measurement.
Applications
Rubber, Plastic, Wire and cable, Aluminum products, Fiber, Powder metallurgy, Mineral rock, Precision ceramics, Glass industry, Metal products, Precision ceramics, Refractories, Magnetic materials, Alloy materials, Mechanical parts, Metal recycling, Mineral and rock, Cement manufacturing, Jewelry industry, Liquid and other New material research laboratory
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183
Steps
1. Prepare the sample and place it in the measurement device
2. Start the instrument, automatically measure and display the density value
Notice
• The buoyancy in the air of the measured object should be < -0.12
• The size of the sink is 150 * 100 * 85mm, and the maximum size of the sample test is 100 * 70 * 35mm (the sink can be customized)
• Weighing range is 0.01g~ 300g, density resolution is 0.001 g/cm ³, Measurement time is about 10 seconds
• Make sure the solution compensation and temperature compensation are set correctly before use
• Pay attention to the overload alarm function to avoid overweight samples
