Overview

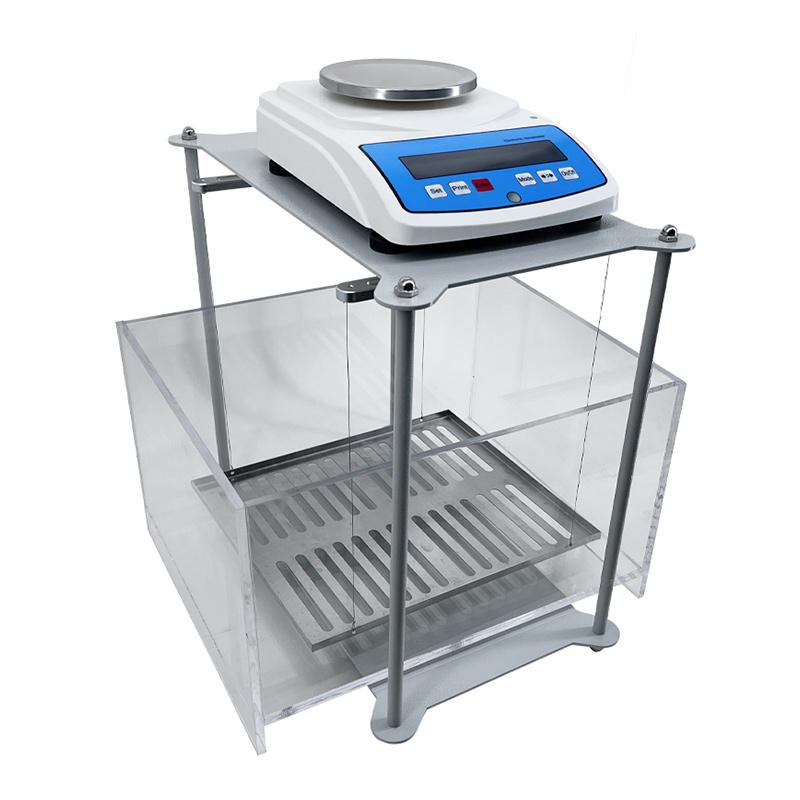

Jinheyuan JHY-3000FX Solid Density Meter is a professional density test instrument designed based on the principle of Archimedes buoyancy method. It is suitable for the overall density test of long solids and indivisible solids in rubber and plastic materials, molten parts, aluminum foundries, precious metal Hardware recycling and other industries. The product adopts a large aluminum alloy work frame design, with an internal large sink space of 400 * 320 * 200mm, a maximum scale weight of 3000g, and a density resolution of 0.001g/cm ³. It can effectively inspect material composition changes or product defects.
Features
1. Large aluminum alloy tool frame design, specific gravity measurement table structure is stable, easy to operate
2. Internal large sink space design, sink size up to 400 * 320 * 200mm
3. The size of the internal sink can be lengthened and customized according to customer requirements
4. Maximum weight 3000g, density resolution 0.001g/cm ³
5. Able to inspect material composition changes or product defects, such as cracking or bubbles
6. With mixing specific gravity function, the mixing ratio of the two mixtures can be set
7. The reading time of density and specific gravity and volume change rate of different mixtures can be set
Principle
The density is calculated by measuring the buoyancy of solids in liquids using the Archimedes principle buoyancy method combined with special specific gravity accessories. The pressure ring or tensile strength of the product is relatively related to the overall density, and the cracking or bubbles inside the material will directly affect the strength and density of the material.
Applications
Rubber and plastic materials, cast parts, aluminum foundries, precious metal Hardware recycling
Standards
ASTMD297-93、D792-00、D618、D891、GB/T1033、JISK6530、ISO2781
Steps
1. Set solution temperature and solution compensation parameters
2. Set specific gravity function (if required)
3. Place the sample on the measurement table
4. Read the overall density, volume, mixing ratio, specific gravity and volume change rate data
5. Read the results according to the set time
Notice
• Section may cause uncertainty in density measurement data during segmentation testing
Internal cracking or bubbles will directly affect the measurement results
• The solution temperature and compensation parameters need to be set correctly
• Samples must meet the requirements of elongated solids or indivisible solids
