Overview

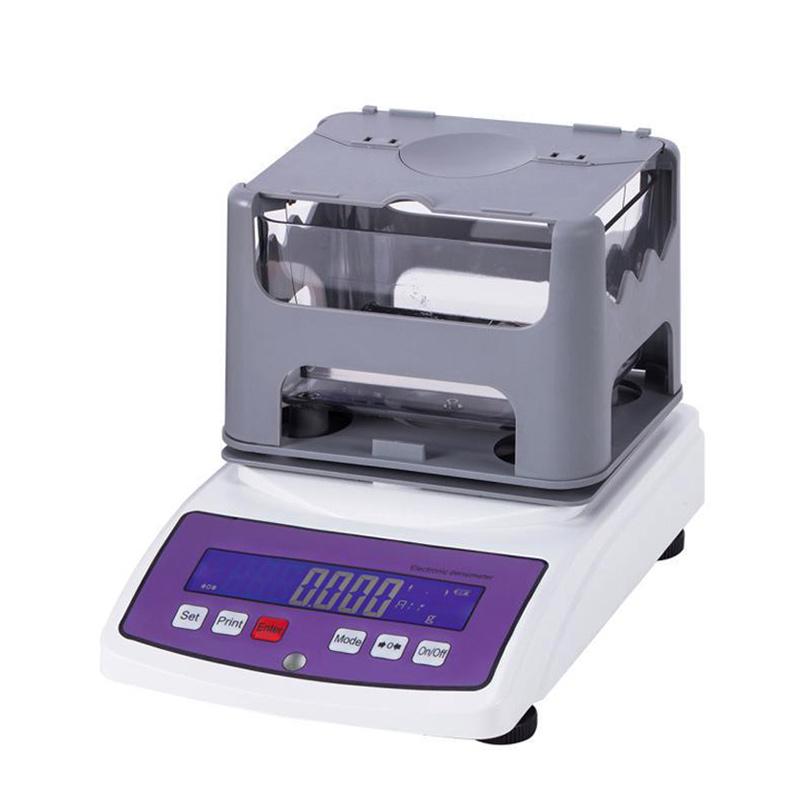

MD-120F High Accuracy Solid Density Meter is a factory-sold JHY-120F model product. It adopts imported host, with stable performance, simple and fast operation, and can read Density value instantly. The weighing accuracy can reach one thousandth, and the Density value can be displayed in only two steps without manual calculation. It is suitable for production sites and quality monitoring and other fields.
Features
1. Can be used as 1/1000 Balance
2. High Density Meter measurement accuracy, fast measurement speed, small sample size, simple operation
3. According to the different characteristics of the product, water, alcohol, silicone oil and other liquids can be replaced as the medium
4. Density direct reading, just two steps to directly read the Density value of the sample
5. Using integrated molding large volume design, it can measure the specific gravity of samples of any shape, including solids, blocks, particles, floats, films, water absorbers, foams
6. Density of non-absorbent rubber and absorbent rubber products can be accurately and quickly measured
7. Standard RS232 data output function, can easily connect PC and printer
8. Liquid or powder accessories can be purchased for measurement of liquid or powder Density
Principle
The Archimedes principle buoyancy method is used to accurately and directly read the measured values.
Applications
Rubber, Wire and cable, Aluminum, Fiber, EVA material, Composites, Powder Metallurgy, Mineral Rock, Precision Pottery and porcelain, Glass Industry, Metal Products, Precision Pottery and porcelain, Refractories, Magnetic Materials, Alloy Materials, Mechanical Parts, Metal Recycling, Minerals and Rocks, Cement Manufacturing, Jewelry Industry and other New material research laboratories
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183
Steps
1. Put the tested sample on the upper tray, and press the Mode button to automatically remember W1 when the weight in the air appears (the machine automatically records)
2. Put the test object into the water tray, the water weight appears, press the Mode button to automatically remember W2 (the machine automatically records) for about 3 seconds, and directly display the Density (specific gravity) value
Notice
• Weighing range: 0.001g~ 120g
• specific gravity accuracy: 0.0001g/cm3
• specific gravity range: > 1, < 1 can be tested
• Solution compensation setting: can be set freely
