Overview

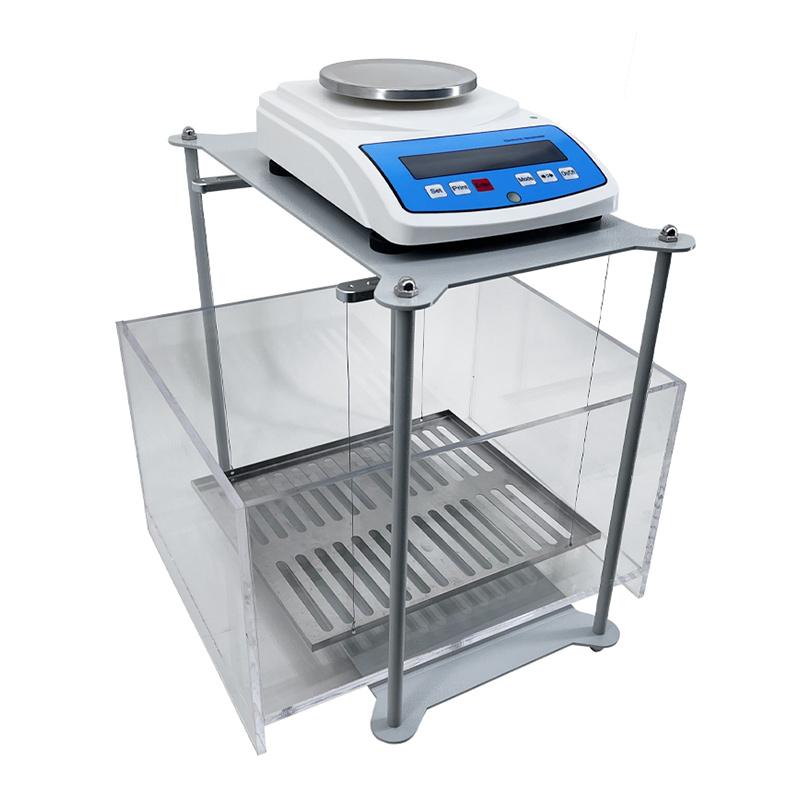

JHY-3000FX Solid Density Meter is a factory direct sales brand product. It is designed by Archimedes principle buoyancy method and combined with special specific gravity accessories. It is suitable for the overall Density test of elongated solids and indivisible solids in rubber and plastic materials, molten parts, aluminum foundries, precious metal Hardware recycling and other industries. The maximum weight can reach 3000g, and the Density resolution is 0.001 g/cm ³.
Features
1. Large aluminum alloy tool frame design, specific gravity measurement table structure is stable, easy to operate
2. Internal large sink space design, sink size can reach 400 * 320 * 200mm, can be lengthened and customized according to customer requirements
3. Maximum weight 3000g, Density resolution 0.001 g/cm ³
4. Able to inspect material composition changes or product defects, such as cracking or bubbles
5. Display Overall Density, Volume, Mixing Ratio, specific gravity & volume change rate
6. temperature compensation function: solution temperature can be set to 0~ 49 ℃
7. Solution compensation function: The solution can be set to 19.999.
8. Mixing specific gravity function: set the mixing ratio of the two mixtures
9. Setting function: Density and reading time of specific gravity and volume change rate of different mixtures can be set
Principle
The Archimedes principle buoyancy method is used, combined with special specific gravity accessories. The pressure ring or tensile strength of the product is relatively related to the overall Density of the product, and the cracking or bubbles inside the material will directly affect the strength and Density of the material.
Applications
Rubber and plastic materials, cast parts, aluminum foundries, precious metal Hardware recycling
Standards
ASTMD297-93、D792-00、D618、D891、GB/T1033、JISK6530、ISO2781
Steps
1. Prepare a long solid or indivisible solid sample to be tested
2. Place the sample on a specific gravity measurement table
3. Set solution temperature and solution compensation parameters according to test requirements
4. Set specific gravity function (if required)
5. Start the test, read the overall Density, volume, mixing ratio, specific gravity & volume change rate data
Notice
• Density measurement will be uncertain due to section sections
• The cracking or bubbles inside the material will directly affect the strength and Density of the material
Before testing, ensure that the sample meets the requirements of a long solid or an indivisible solid
• When using, the parameters should be correctly configured according to the set function
