Overview

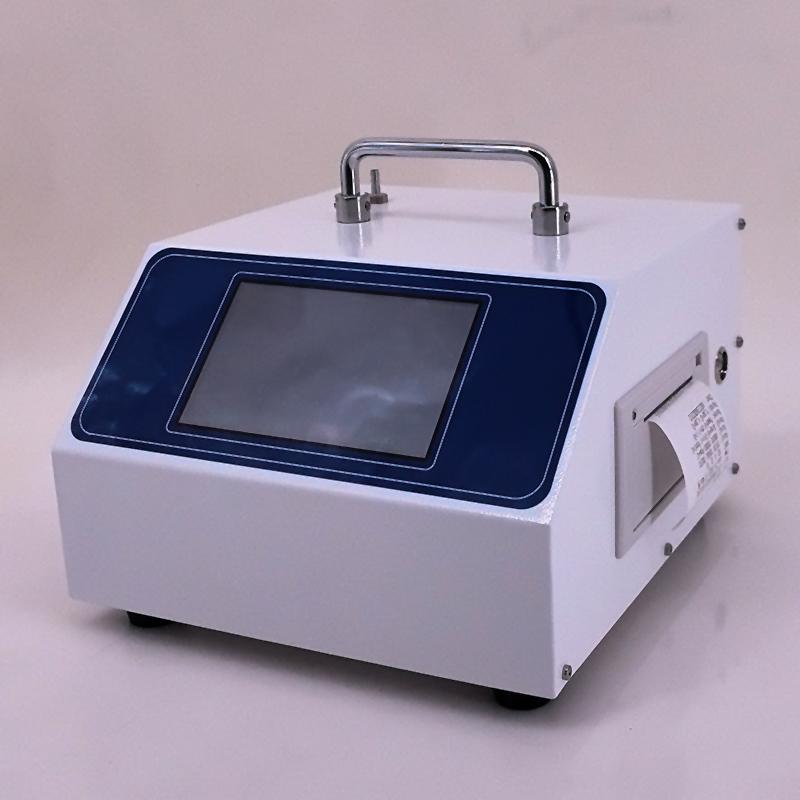

The CA-680B Laser Dust Particle Counter is used for the measurement of dust particle size distribution and number per unit volume in a clean environment. The instrument provides 0.3, 0.5, 1.0, 3.0, 5.0, 10 μm six-channel specific particle size, 2.83L/min (1ft3/min) flow.
Features

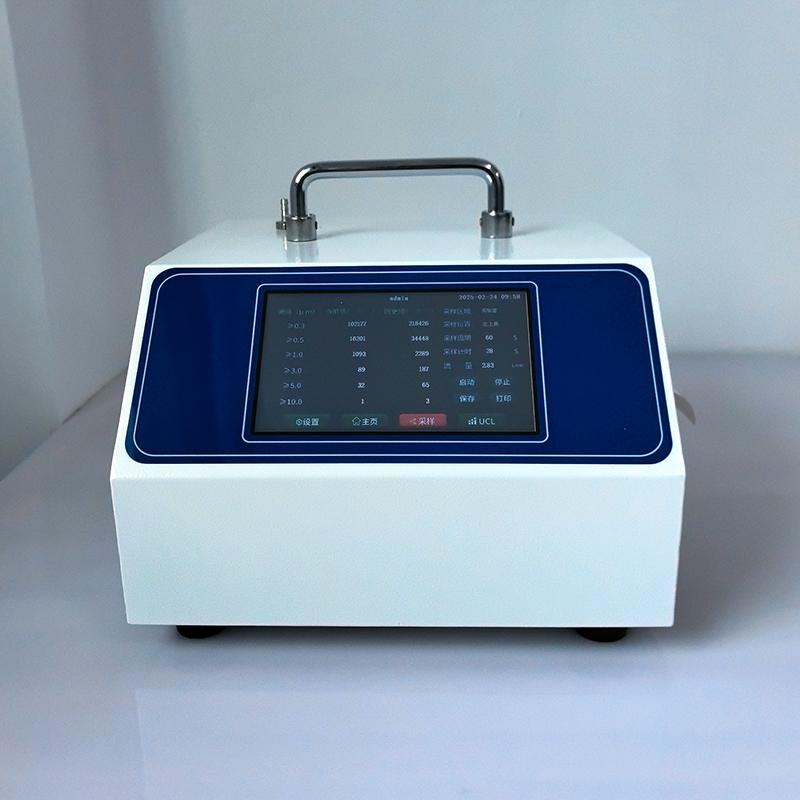

1. Touchscreen control, easy to operate, intuitive data results
2. Direct sampling 2.83L/min
3. Six-channel particle size sampling 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
4. UCL calculation (at 95% confidence level), can directly display particle concentration
5. Automatically determine the purification level
6. AC/DC type configuration optional
7. Long life laser Illuminant, stable performance

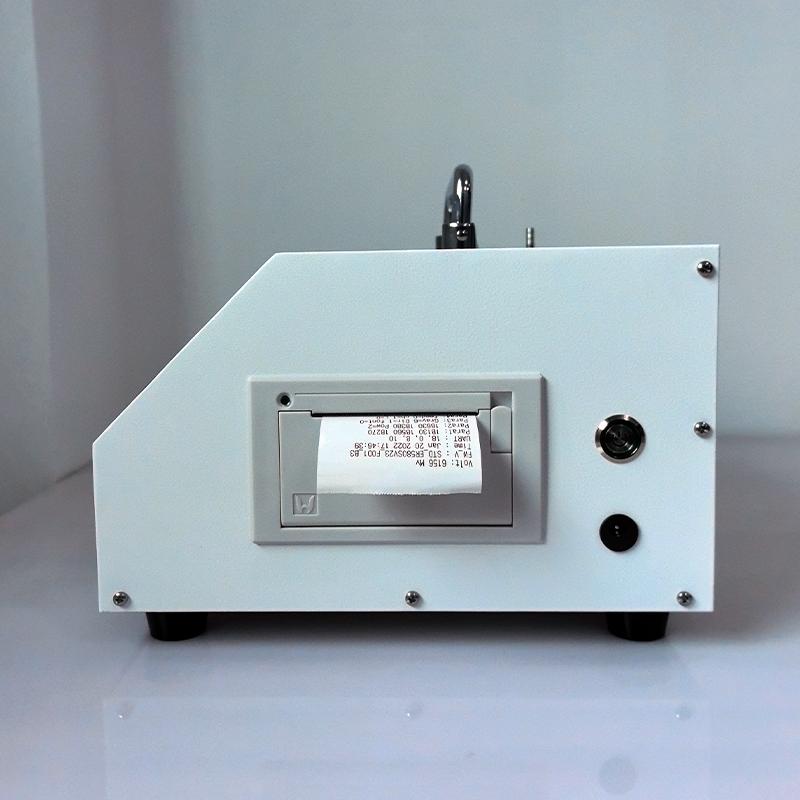

8. Built-in high-speed thermal printer
9. The printing method is optional, automatic instant printing, manually select the printing function
10. AC-DC dual-use, built-in rechargeable lithium battery, can support continuous sampling for more than 6 hours
Principle
The instrument adopts the principle of light scattering, which is sensed by the detection laser of the laser Optical inspection Sensor, and the light scattering intensity is proportional to its particle size. When the suspended particles in the air pass through the photosensitive area, the scattered light is accepted by the photosensitive element and generates a pulse signal. After photoelectric conversion, amplification and processing, the equivalent diameter and quantity of the collected particles are obtained, so as to detect the size and quantity of dust particles.
Applications
Electronics industry, pharmaceutical industry, semiconductor industry, Optical inspection, precision machining field, food manufacturing, cosmetics manufacturing, biological products, hospitals, environmental protection, inspection, aerospace and other industries production enterprises and scientific research departments, as well as epidemic prevention stations, disease control centers, blood centers, mass supervision institutions and other institutions
Standards
China GMP standard
Steps
1. Set the sampling period: 1s - 9999999s
2. Set the sampling delay: 1s - 9999999s
3. Set the number of sampling points: 2 - 50 points can be set arbitrarily
4. Set the number of sampling: 2-50 times to set it arbitrarily
5. Set the sampling area: according to needs, any combination of letters and numbers or set it separately
6. Select the sampling unit: particle, particle/m ³, particle/FT ³ and other three units to choose from
7. Start sampling
Notice
• Ambient Temperature 10 ℃ - 35 ℃, relative humidity ≤ 75%, atmospheric pressure 86kPa - 106kPa
• The sampling gas shall not contain acid, alkali, high temperature and other corrosive gases
• Self-cleaning time ≤ 10 minutes
• Instrument weight 2.8KG, pay attention to safety when handling
