HuiNuo TM2000Pro/02 Automatic Film Applicator Scratch Coater Servo Motor Drive +/- 0.002mm accuracy

Name: HuiNuo TM2000Pro/02 Automatic Film Applicator Scratch Coater Servo Motor Drive +/- 0.002mm accuracy
Brand: HuiNuo
SKU: NB049099
Price: 2463.0 USD
Availability: PreOrder

$ 2463.00Ex works

Servo motor drive, coating speed 1~ 500mm/S adjustable, film accuracy of +/- 0.002mm, magnetic head fixed and 4-sided Applicator design to improve the convenience of operation and Spreader uniformity.

Model

TM2000pro/02

Get Quote

Category : Automatic Film Applicator

Brand : HuiNuo

SKU : NB049099

Service :The delivery and service By NBCLab.Com

Overview

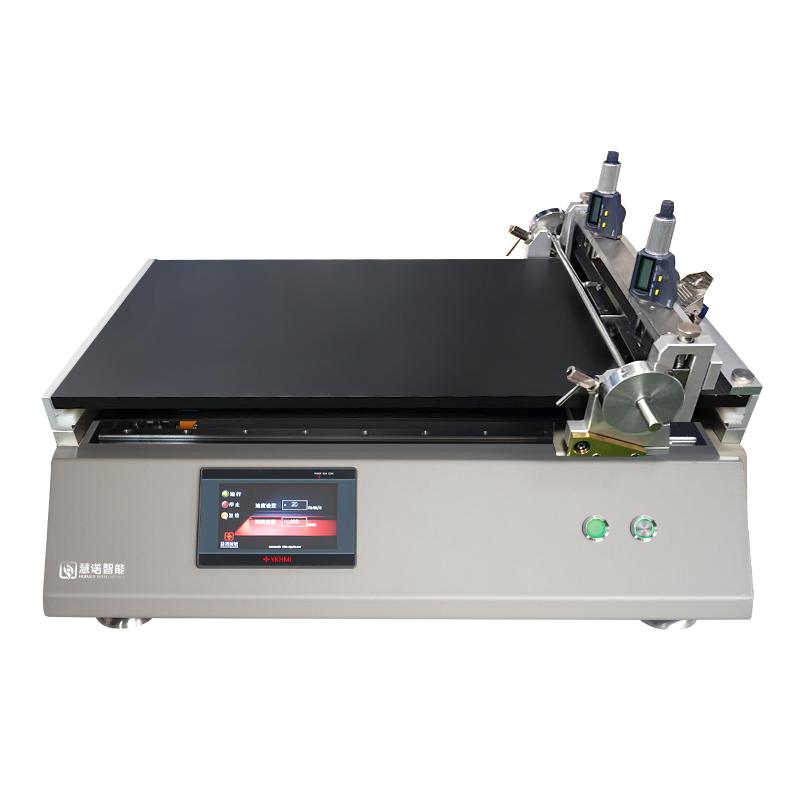

HuiNuo TM2000pro/02 Automatic Film Applicator is a professional Spreader device using scratch coating method, equipped with servo motor drive and color LCD Touchscreen Operating interface, supporting Chinese and English Operating languages. The device has High Accuracy film capability, film thickness can be selected 5/10/15/20μm (realized through 4-sided film applicator, thickness can be customized), film accuracy up to +/- 0.002mm, effective coating area is 400 * 300mm.

Features

1. Adopt scraping method, coating speed range 1~ 500mm/S, flexible and adjustable 2. Equipped with 4-sided Applicator Drawdown blade, die steel material, magnetic suction cutter head fixing (can be customized) 3. Servo motor drive, Power 400w, stable and reliable operation 4. Color LCD Touchscreen display, support Chinese and English Operating languages (customizable) 5. Glass plate coating table, fixture fixing substrate method 6. Customized film thickness, effective application width and length

Principle

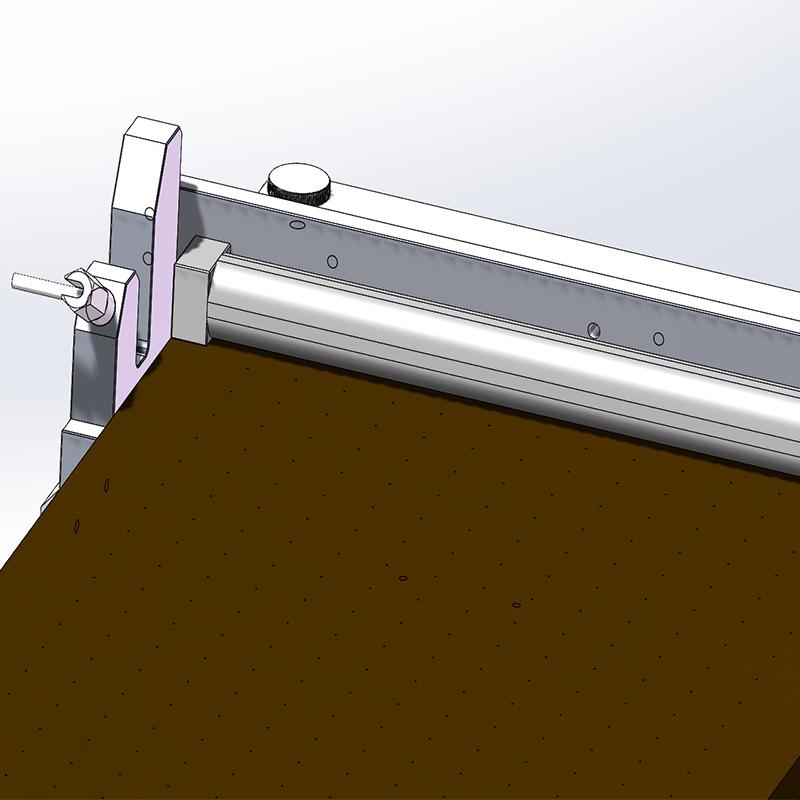

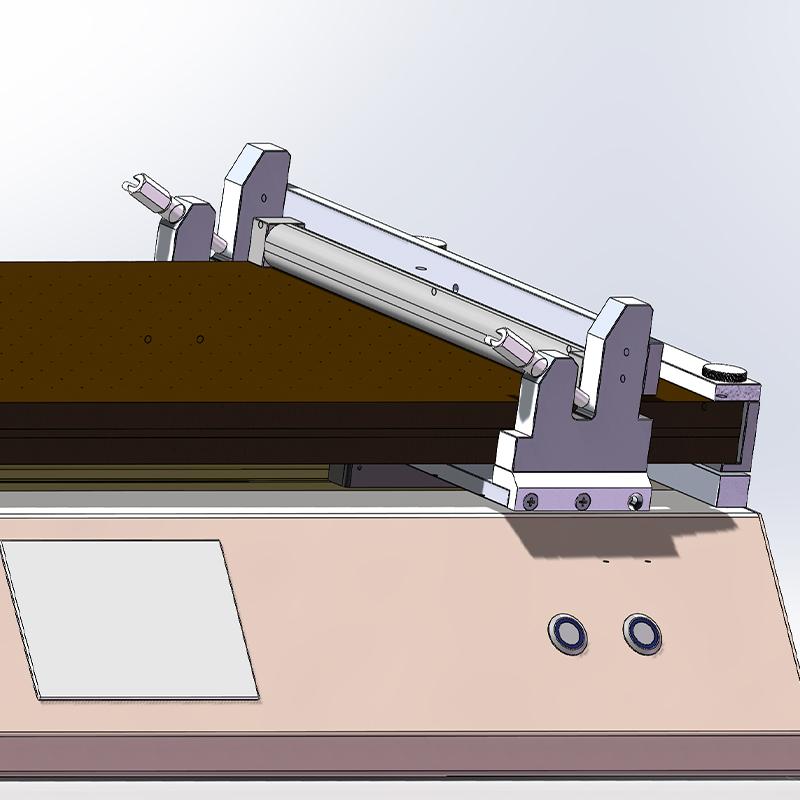

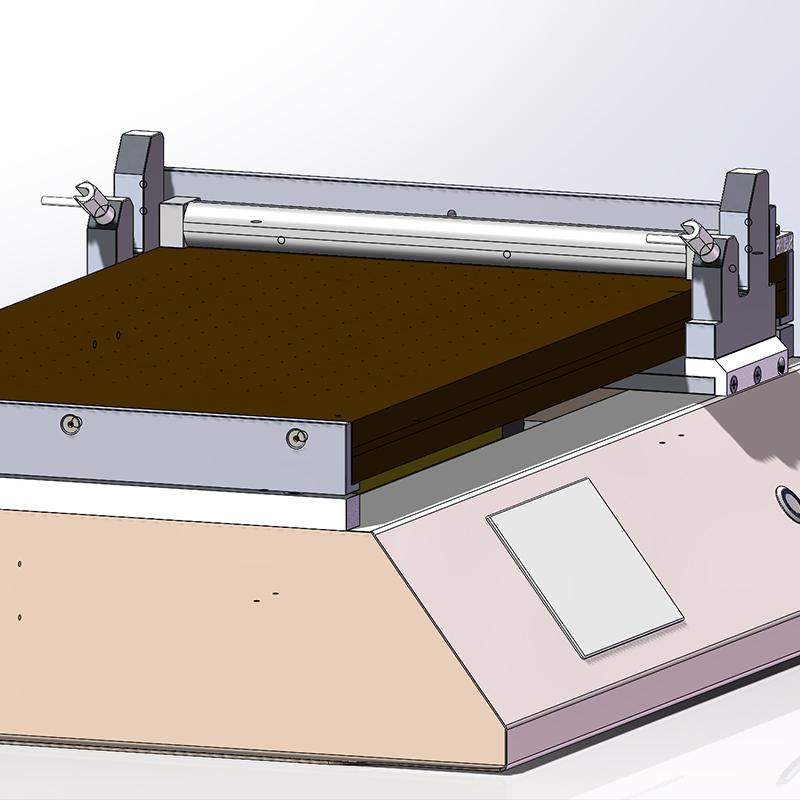

The device drives the Drawdown blade system through the servo motor to perform the scraping operation on the Glass plate Spreader stage at the set coating speed. The 4-sided Applicator Drawdown blade is installed on the cutter head by magnetic attraction fixing to uniformly Spreader the material on the surface of the substrate to achieve accurate film thickness control.

Applications

Scientific research experiment, material prepative, coating development, quality inspection

Steps

1. Fix the substrate on the Glass Spreader by means of a fixture 2. Spreader parameters (coating speed, film thickness, etc.) set by color LCD Touchscreen 3. Start the device, servo motor drive Drawdown blade for Spreader operation 4. Remove the sample after completing the Spreader

Notice

• Power supply voltage meets 100V~ 220V/50~ 60HZ requirements before use • Drawdown blade and coating table safety protection during operation • Customized parameters need to be confirmed with the supplier in advance • Dimensions of equipment are subject to the actual product

coating method
scraping
coating speed
1~500mm/S
Substrate clamping method
fixture fixing
Coating table material
Glass plate
Film thickness
5/10/15/20μm (4-sided film applicator, thickness can be customized)
Spreader accuracy
±0.002mm
Coating Size
400*300mm
application width
300Mm (width can be customized)
Spreader Travel
400Mm (length can be customized)
Drawdown blade Type
4-sided Applicator
Blade Coating Width
150Mm (can be customized)
Cutting head fixing method
Magnetic suction (customized)
Motor Type
Servo motor
Power
400w
display screen
Color LCD Touchscreen
Operating language
Chinese (can be customized in English)
Host power supply
100V~220V/50~60HZ
Dimension
Subject to the actual product
