Overview

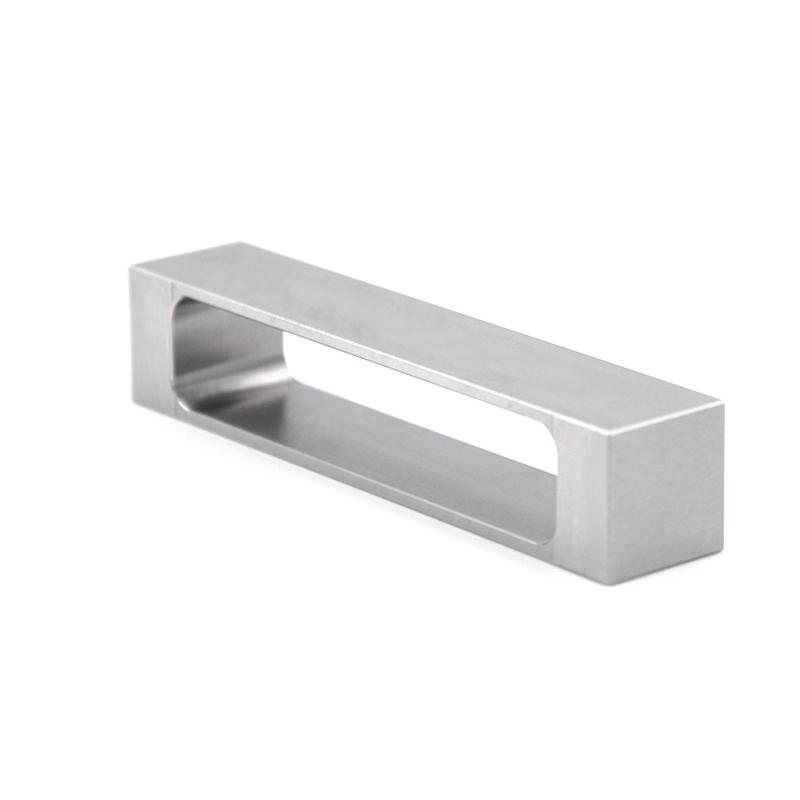

HuiNuo SZQ-100 frame Applicator is a multi-faceted film laboratory manual film applicator, providing 250 μm, 500 μm, 750 μm, 1000 μm four wet film thickness specifications, effective application width 100mm, total length 110mm. The Applicator is made of high carbon chromium wear-resistant and anti-corrosion stainless steel, which is tested by imported three coordinates to ensure dimensional accuracy before leaving the factory. It is suitable for wet-film preparatory film in paints, glues, coatings, inks, chemical New materials and other fields, and can cooperate with Film Applicator to realize automatic film scraping.
Features
1. Made of 9Cr18Mo High Hardness Stainless Steel, wear resistance and corrosion resistance, Hardness up to 50~ 55HRC
2, accuracy up to +/- 2μm to ensure experimental accuracy
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications
4. Imported three-coordinate detection accuracy, with factory test report, Measurement Traceability
Principle
The Frame Applicator manually scrapes the surface of the substrate, using its preset wet film thickness gaps (250μm, 500μm, 750μm, 1000μm) to form a uniform wet-film coating. When the Applicator comes into contact with the substrate, excess material is scraped off, leaving a wet-film of precise thickness, suitable for laboratory sample preparation and quality control.
Applications
Paints, Adhesives, Coatings, inks, Chemical New materials
Steps
1. Select the desired wet film thickness
2. Place the Applicator on the surface of the substrate
3. Manual even scraping
4. Remove Applicator and check wet-film uniformity
5. Clean Applicator for Next Use
Notice
• Before use, confirm that the Applicator's surface is clean and free of residue
• Maintain uniform strength and speed when scraping
• Avoid collisions with hard objects to prevent damage to accuracy
• Clean and store properly after use
• Customized specifications need to confirm the parameter requirements in advance
