Overview

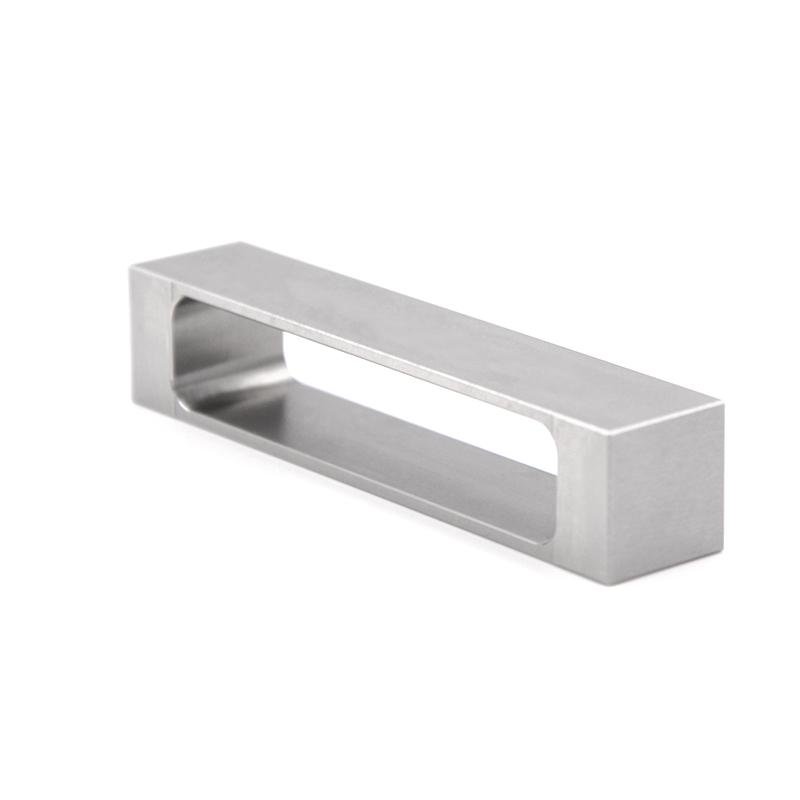

Frame Applicator SZQ-100 is a laboratory manual film applicator for multi-faceted films. The film thickness is 50μm, 75μm, 125μm, 200μm, the effective application width is 100mm, and the total length of the Applicator is 110mm. The product is made of high-carbon chromium wear-resistant and anti-corrosion stainless steel. It is tested by imported three-coordinate dimensional accuracy before leaving the factory to ensure the accuracy of the film. It is suitable for paints, glues, coatings, inks, chemical New materials and other Moulding, and can be equipped with Film Applicator for automatic film scraping.
Features
1. Made of 9Cr18Mo High Hardness Stainless Steel, it has good Abrasion Resistance and corrosion resistance, and the Hardness value reaches 50~ 55HRC.
The accuracy is up to +/- 2μm to ensure the accuracy of the experiment.
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications.
4. Adopt imported three-coordinate detection accuracy, with factory inspection report, can stand Measurement.
Principle
The Film Applicator is a manual laboratory film applicator that scrapes the substrate with different thicknesses of Drawdown blades to form a uniform wet-film for subsequent experimental analysis. This product is a frame design and provides multi-sided film function for precise control of film thickness.
Applications
Paints, Adhesives, Coatings, inks, Chemical New materials
Steps
1, select the appropriate film thickness surface.
2. Place the Applicator on the substrate.
3, Manual or Film Applicator evenly scraping.
4. Applicator is removed to form a wet-film.
Notice
• Check whether the Applicator's surface is smooth and free of damage before use.
• Ensure that the application width and thickness meet the experimental requirements.
• Regularly clean the Applicator to avoid residue affecting accuracy.
• Support customized specifications, parameters need to be confirmed in advance.
