Overview

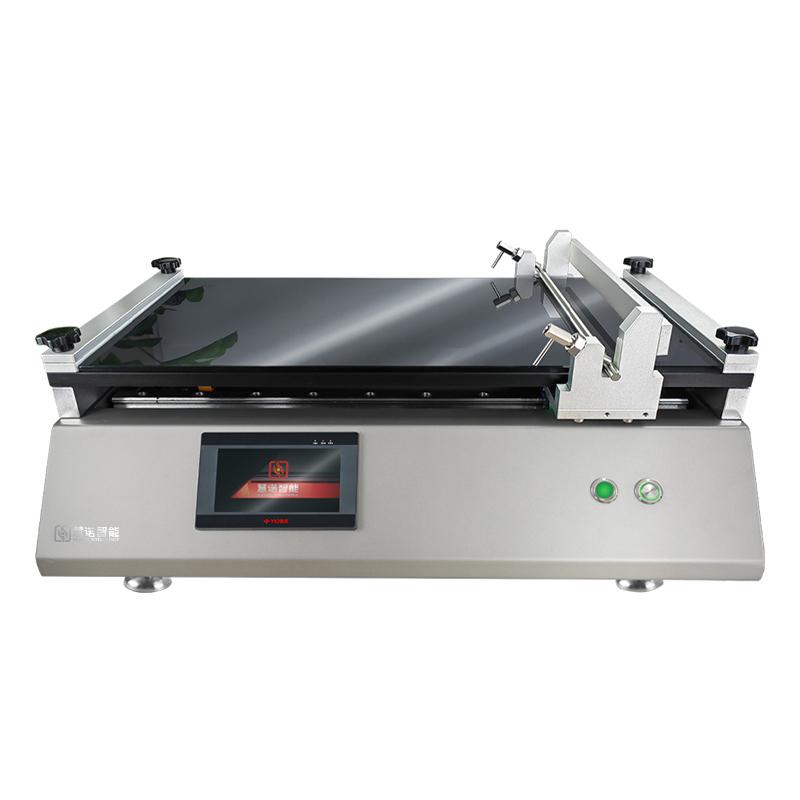

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve film accuracy and efficiency. This Film Applicator is a basic bar Coater. It adopts a new bar Installation method with speed control and application length adjustment functions. It is suitable for High Accuracy automatic film in laboratories and Moulding proofing in laboratories such as university research institutes, New material, and lithium batteries.
Features
1) Glass countertop is 3C certified national standard genuine full tempered Glass plate, high Smoothness, gold crystal original sheet, heat resistance 600 ℃, scratch resistance
2) High Accuracy film applicator with high accuracy of original imported bar film
3) Touchscreen control panel, easy to operate
4) Free adjustment of application length and Spreader speed
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Polymer materials, pharmaceuticals and other film sample preparation
Steps
1. Fix the substrate to the fixture
2. Set application length and Spreader speed via Touchscreen
3. Select and install bar film applicator
4. Start the device for automatic filming
Notice
• Glass countertop heat resistance 600 ℃, avoid overtemperature use
• The film thickness is controlled by bar to ensure the use of original imported bar
• The coating speed can be stepless and adjusted according to the characteristics of the sample
• Optional functions such as Drawdown blade, Heating, Vacuum chuck need to be customized
