$ 51068.00Ex works
Blade Coating method, wet film thickness range 0.005-3mm, Spreader accuracy +/- 5%, equipped with hot air Oven temperature up to 200 ℃, supports a variety of coils and Coating types, to achieve stable tension control.
Category : R2R Coater
Brand : BoLaiDe
SKU : NB049137
Service :The delivery and service By NBCLab.Com

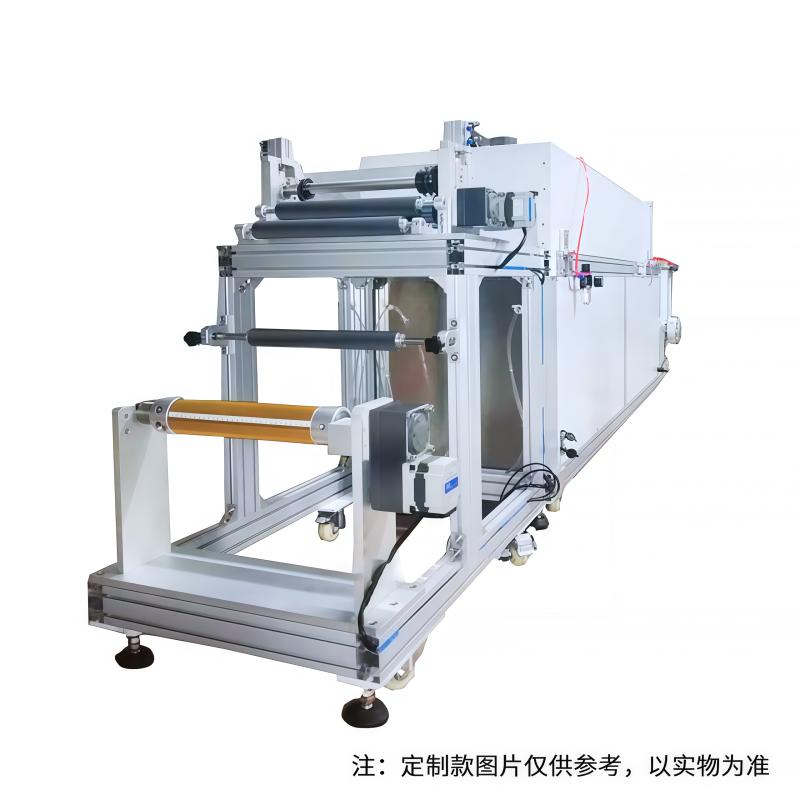

Rxf-10/600pupro Coil Blade Coating Machine is a continuous experimental Film Applicator with unwinding, scraping, drying and rewinding functions. The application width is 600mm, the wet film thickness is 0.005-3mm, and the heating temperature of the rubber roller reaches 200 ° C. It is suitable for UV, stickers, plasters, etc. The equipment adjusts the unwinding tension by controlling the torque of the unwinding shaft, and adjusts the rewinding tension by controlling the torque of the reeling shaft. The main drive steel roller swirl/spin linear speed is the main driving speed to realize belt control.
1. Substrate tension control, belt stability 2. Main drive servo drive, speed can be set 3. hot air oven 4. PLC control, HMI operation, easy to use 5. Fully automatic constant tension control 6. Automatic correction control 7. Digital display thickness adjustment, high accuracy
The equipment adjusts the unwinding tension by controlling the torque of the unwinding shaft, adjusts the unwinding tension by controlling the torque of the reeling shaft, and realizes the belt control with the swirl/spin linear speed of the main drive roller. The drying oven uses electric heating air, and the hot air heats and dries the substrate.
UV coatings, stickers, plaster, Plastic film, metal foil, paper, non-woven fabric and other coil Spreaders
Three-phase five-wire power supply standard
1. Drag the substrate by hand between the upper and lower rollers of the traction roller 2. Tighten the handwheel on the rack to make the rubber ring of the upper roller of the traction roller contact the lower roller 3. Adjust the thickness of the glue by swirling/spinning the left and right handwheels on the rubber roller rack clockwise or counterclockwise 4. Determine the specific thickness according to the percentage table instructions 5. The traction roller group pulls the substrate over through the power transmission to complete the Spreader work
• Operating Environment Temperature should be within the range of 10 ℃~ 40 ℃ • Operating Environment Humidity should be within the range of 30%~ 90% RH • The air source pressure should be maintained at 0.5 to 0.8 MPa • Pay attention to the position of the emergency stop button when operating • Spreader thickness adjustment needs to be precisely controlled according to the indicator • Check whether the connection of each component is firm before the equipment runs
