Overview

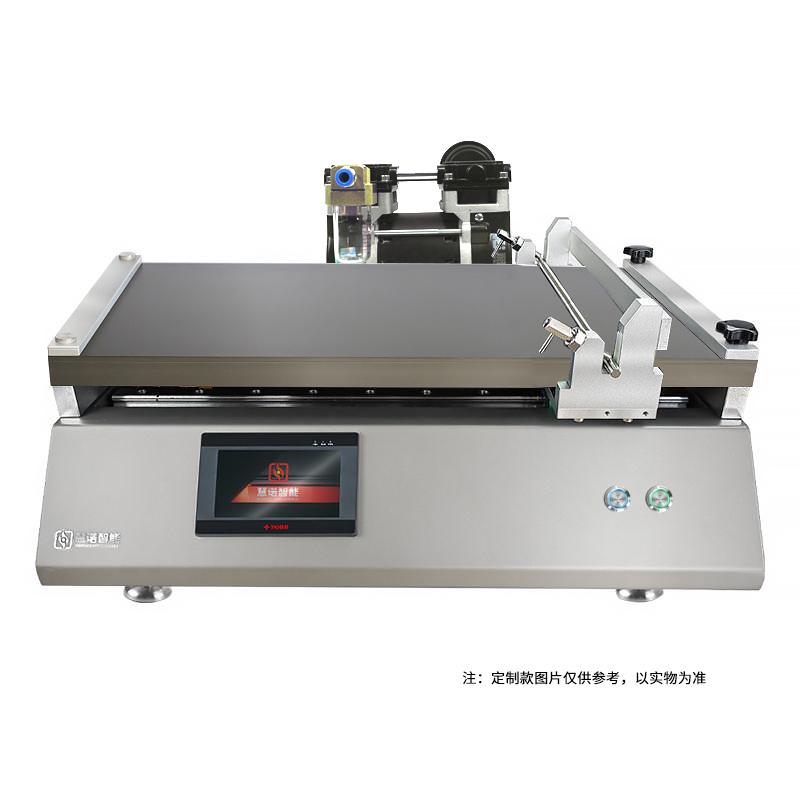

Automatic Film Applicator is a device for intermediate coating film in laboratories. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a bar type Automatic film applicator with heating and Vacuum chuck functions. The innovative bar Installation method and clamshell Drawdown blade head greatly improve the efficiency of Spreader, which is easy to clean. It supports speed control and application length adjustment. It is suitable for laboratory High Accuracy automatic film. Moulding proofing in laboratories such as university research institutes, New material, lithium batteries, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. High Accuracy film applicator, original imported bar film uniform accuracy
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare the substrate and samples
2. Set Spreader parameters (application length, Spreader speed)
3. Fixed substrate (using Vacuum chuck or fixture)
4. Start Film Applicator for Auto Spreader
5. Remove the sample after finishing the film
Notice
• Please read the instructions carefully before operation
• Power supply voltage meets equipment requirements (100V~ 220V/50~ 60HZ)
• Make sure the substrate is firmly fixed before Spreader
• Pay attention to temperature control when using the heating function
• Regularly clean equipment to maintain good working condition
