Overview

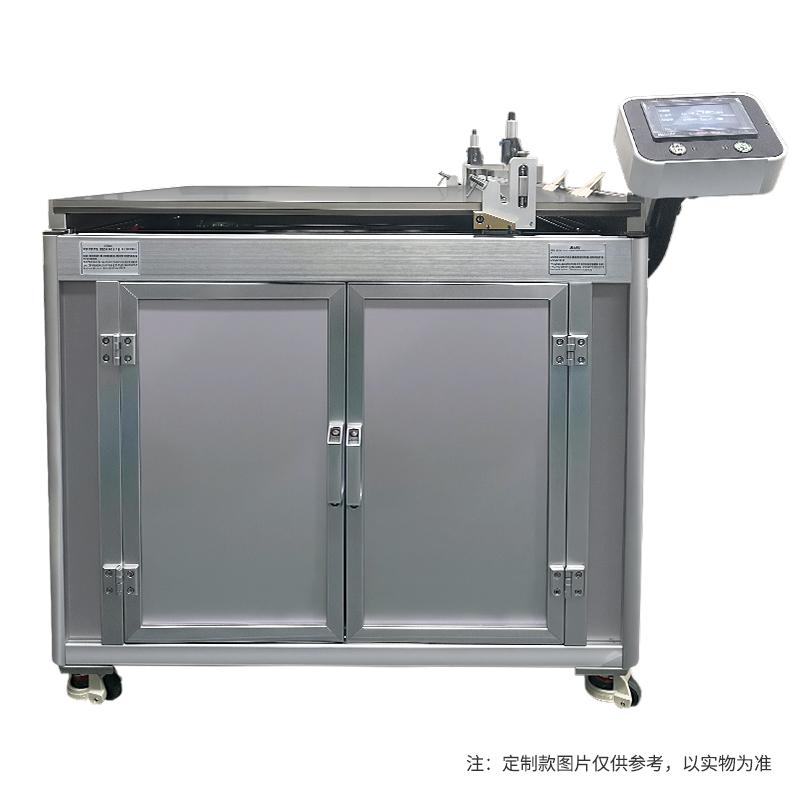

HuiNuo TM3200/11D Automatic Film Applicator is a multi-functional Spreader equipment, using bar + Drawdown blade double coating method, the coating speed can be stepless speed regulation in the range of 1~ 300mm/s. The equipment is equipped with Vacuum chuck + fixture substrate fixing system, the coating table is made of surface hard treated aluminum alloy, the size is 1440 * 1030mm, and the effective coating area is 1200 * 1000mm.
Features
1.The meyer rod coating thickness range varies according to different rod numbers, equipped with High Accuracy import bar, accuracy up to +/- 0.001mm
2. Blade Coating thickness range 0.1~ 10mm, using clamshell design for easy cleaning
3. Drawdown blade made of die steel, application width 1000mm, accuracy +/- 0.003mm
4. Vacuum chuck system size 1280 * 960mm, aperture φ 0.8mm, hole spacing 20 * 20mm
5. Equipped with a vacuum pump with a pumping rate of 5.4m ³/h, Ultimate vacuum degree 50KPa
6. Color LCD Touchscreen operation, support Chinese interface
7. Parameters such as coating table and Vacuum Area can be customized according to needs
Principle
The device fixes the substrate on the Spreader stage through Vacuum chuck and fixture, and uses bar or Drawdown blade for Spreader operation. Bar Spreader controls the Coating thickness through different rod numbers, and Blade Coating controls the thickness by adjusting the distance between the Drawdown blade and the substrate. During the Spreader process, uniform movement is achieved through a precision Control system to ensure coating uniformity.
Applications
Coating R & D, Inks Testing, Adhesive Spreader, Functional Film Preparative, Lab Sample Making
Steps
1. Place the substrate on the Spreader table and start the Vacuum chuck system to fix the substrate
2. Choose the bar or Blade Coating method as needed
3. Set coating speed and parameters on Touchscreen
4. Install the appropriate Spreader tool (bar or Drawdown blade)
5. Start the Spreader program, and the device will automatically complete the Spreader process
6. Turn off the device after the Spreader is complete and clean up the Spreader tool
Notice
• Power supply voltage meets 100V~ 220V/50~ 60HZ requirements before use
• Spreader check Vacuum chuck system working properly
• Drawdown blades should be cleaned and maintained in time after use
• Customized parameters need to be clearly stated when booking
• Dimensions of equipment are subject to the actual product
