Overview

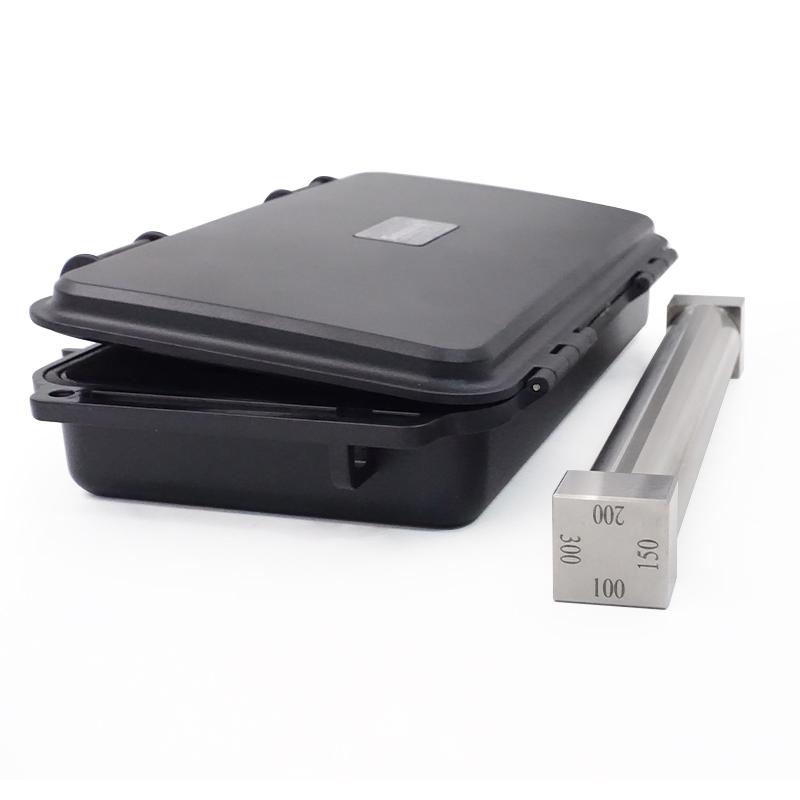

HuiNuo SZQ-160 250/300/500/550 4-sided Applicator is a device for experimental manual film proofing of coatings, inks, paints, etc. It can also be used with Automatic Film Applicator. The product is made of high-quality wear-resistant and corrosion-resistant alloy steel with four film thickness specifications (250, 300, 500, 550 μm), application width is 160mm, and can precisely control the wet-film or dry-film thickness to ensure the conformity and Repeatability of coatings.
Features
1. Made of 9Cr18Mo High Hardness Stainless Steel, with Good Abrasion Resistance and corrosion resistance, Hardness value of 50~ 55HRC
2, accuracy up to +/- 2μm to ensure experimental accuracy
3. Smooth surface, diverse styles, wide range of applications, support for customized specifications
4. Adopt imported three-coordinate detection accuracy, with factory inspection report, can stand Measurement
Principle
The 4-sided Film Applicator uses a precisely designed Drawdown blade structure to scrape on the surface of the substrate to form a wet-film coating of a specific thickness. Its four different height Drawdown blade edges can produce wet film thicknesses of 250, 300, 500, and 550 μm respectively, ensuring the conformity and Repeatability of the Coating thickness to meet various mass testing requirements.
Applications
Paint, inks, paints and other experiments Manual film proofing, automatic film mechanism film
Standards
With Factory Test Report, Can Stand Measurement
Steps
1. Select the desired film thickness surface
2. Place the Applicator on the surface of the substrate
3. Scratch manually or by Automatic Film Applicator
4. Clean the Applicator after finishing the film
Notice
• Ensure that the Applicator's surface is clean and free of contamination before use
• Select the appropriate thickness surface for film operation
• Keep moving at a constant speed during operation to ensure uniform coating
• Clean and maintain in time after use
• Avoid scratching with hard objects to maintain accuracy
