Overview

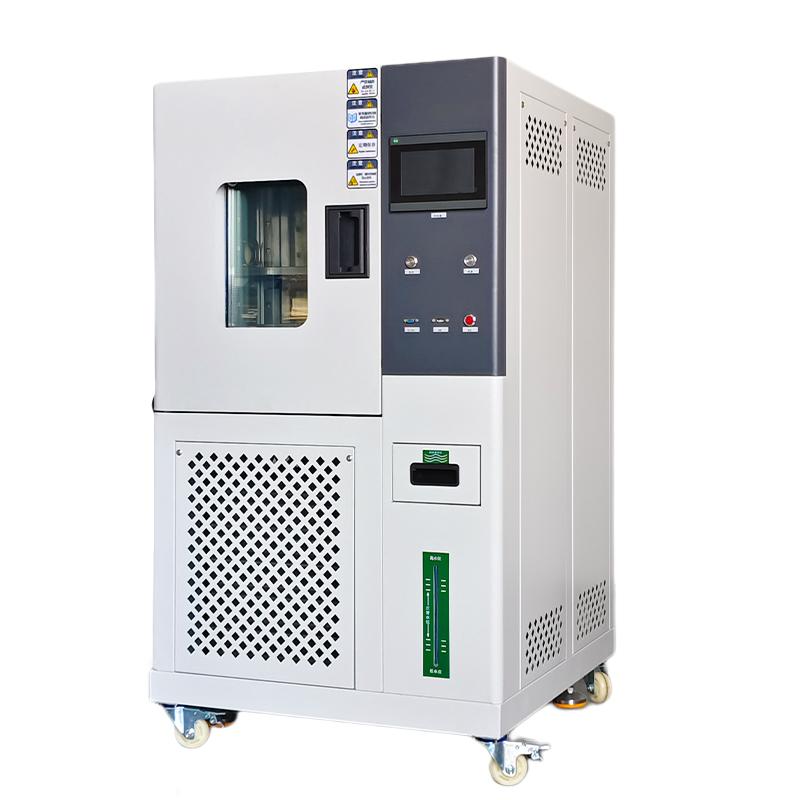

Lugong ST-50LB humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered in the transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc., inspection materials, accessories or equipment High temperature resistance, cold resistance, moisture resistance performance and possible damage life reduction.
Features
1. The inner box is made of SUS304 #stainless steel plate, which has the advantages of acid resistance, corrosion resistance and easy cleaning
2. Cold rolled steel plate for the outer box
3. Adopt non-reactive explosion-proof door handle, easy and safe to operate
4. The thermal insulation system is filled with ultra-fine fiberglass, and the box door is sealed with refined silicone rubber
5. High-quality fixed PU movable wheels are installed at the bottom, which is convenient for mobile positioning
6. The sample holder is punched and bent into a mesh with SUS304 #stainless steel, and the spacing can be adjusted
7. Equipped with double-decked vacuum reinforced Glass observation window, with heating and defrosting function
8, using Japan's Panasonic Compressor and the United States DuPont environmental protection refrigerant
9. Humidity control adopts P.I.D + S.S.R system co-channel coordinated control
10. Heating with nickel-chromium alloy high-speed heating wire
11. The humidification system adopts stainless steel tube with built-in nickel-chromium alloy high-speed heating wire
12. Adopt precision liquid crystal display programmable temperature controller
13. Equipped with USB data transfer interface, can be connected to the printer
14. Equipped with a complete protection system, including over-temperature, fan overheating, and under-phase/inverse equivalent protection
Principle
The equipment uses the cooperation of the freezing system, the heating and humidification system and the Control system, adopts the thermal equilibrate temperature regulation mode, and coordinates the control through the same channel of the P.I.D + S.S.R system to achieve accurate temperature and Humidity regulation. The refrigeration unit adopts a binary low temperature circuit system design, different temperature domains use different Compressors for work, the heating system adopts nickel-chromium alloy high-speed heating wire, and the humidification system adopts isolated humidification to realize the simulation of high temperature, low temperature, heating and humidity environment.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the device to the designated position and fix the casters
2. Connect the power supply and water source
3. Set test parameters through Touchscreen
4. Select the program mode or the fixed value mode to run
5. Start the equipment and start the test
6. Monitor the test process through the observation window
7. After the test is completed, the equipment will automatically stop
8. Export the test data through the USB interface
Notice
• Make sure the power connection is correct before the equipment runs
• Regularly check the humidification system water level
• Pay attention to the operating status indicator light of the equipment
• When a fault alarm occurs, it should be stopped immediately for inspection
• Keep equipment well ventilated
• Regularly clean the inner and outer boxes of the equipment
• Non-professionals are not allowed to disassemble the equipment
• Do not open the box door at will during the operation of the equipment
