Overview

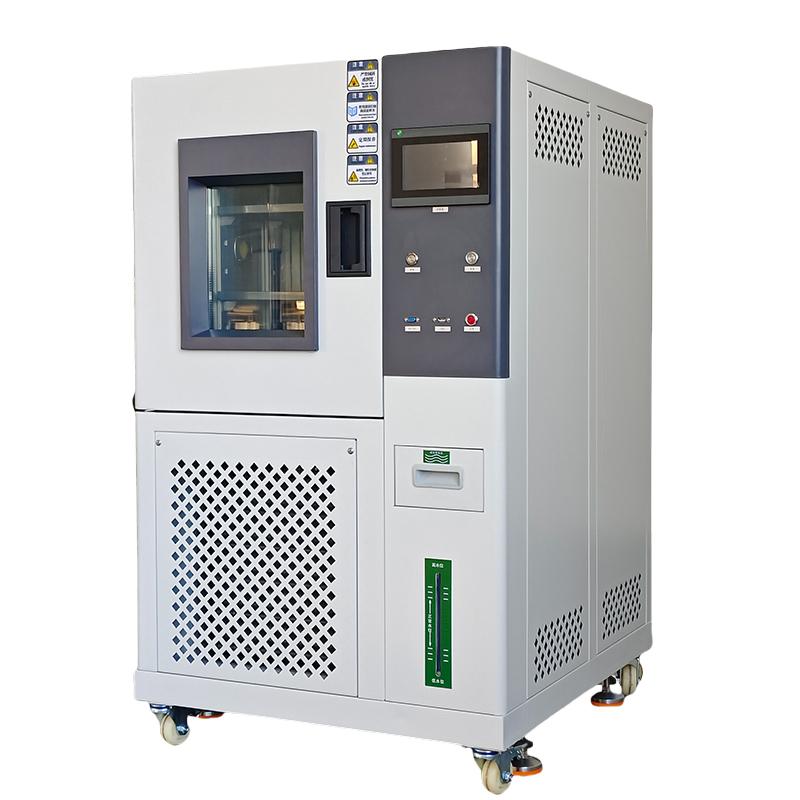

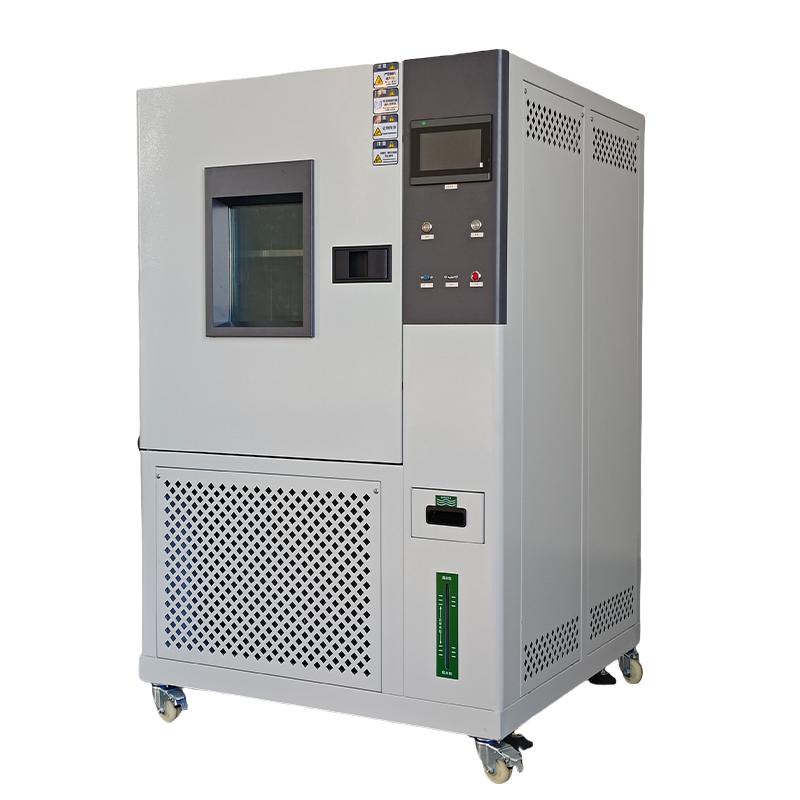

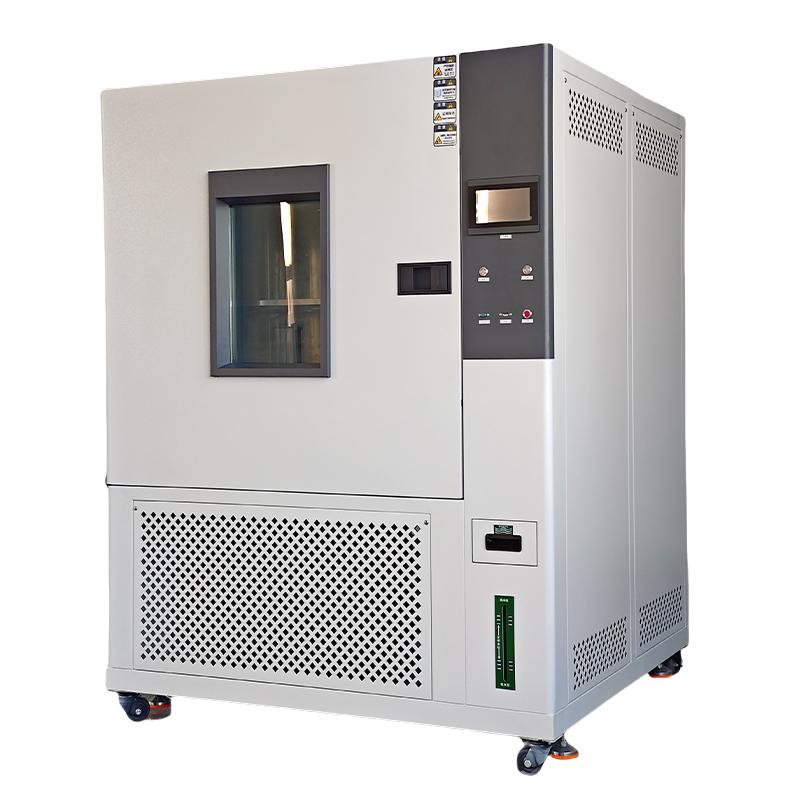

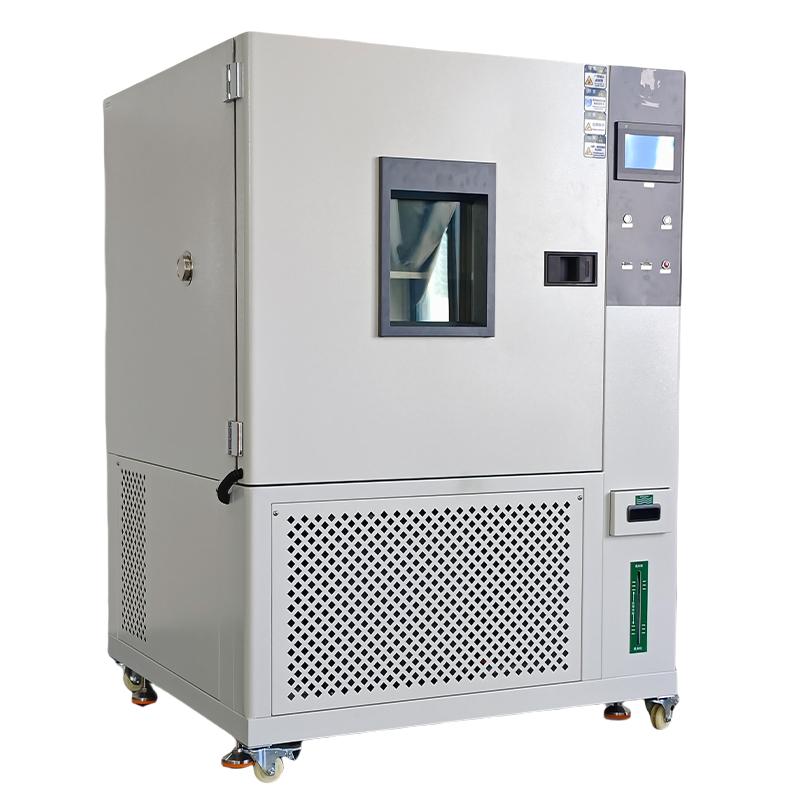

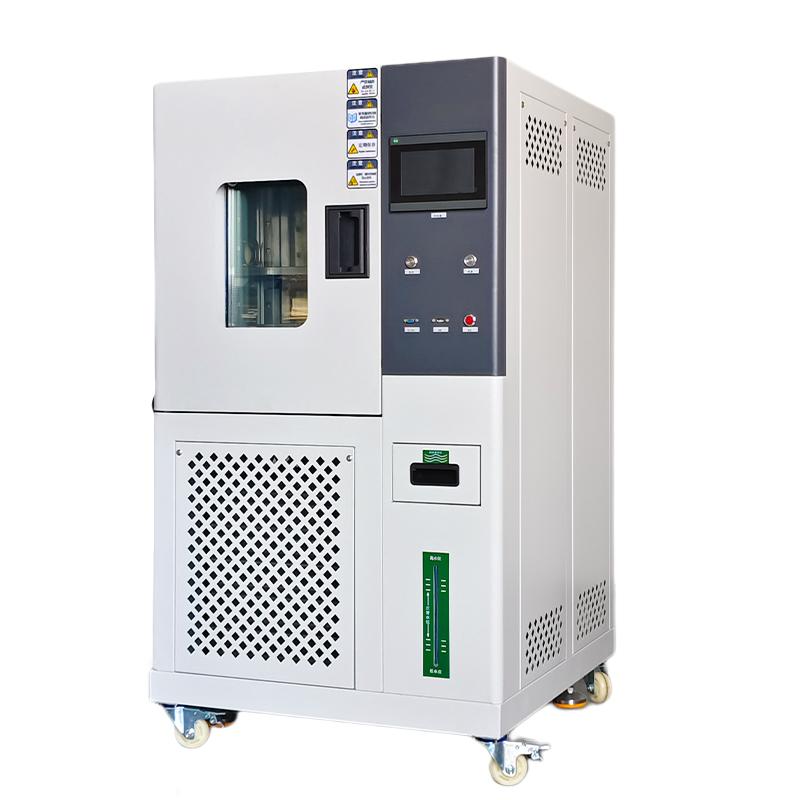

Lugong ST-50LD humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered during transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc. The equipment can inspect the weathering performance and possible damage life of materials, accessories or instruments in high temperature, low temperature, heat and humidity alternating environments.
Features
1. The box adopts SUS304 #stainless steel inner box and Cold rolled steel plate paint outer box
2, equipped with explosion-proof door handle and refined silicone rubber sealing
3. Using ultra-fine fiberglass insulation area and isolated humidification system
4. A fixed PU movable wheel is installed at the bottom for easy mobile positioning
5. The sample holder is made of stainless steel punching and bending mesh design, with a load-bearing capacity of 25kg.
6. Double-decked Vacuum Enhanced Glass Observation Window with Heating and Defrosting Function
7, using Japan's Panasonic Compressor and the United States DuPont environmental protection refrigerant
8. Humidity control using P.I.D + S.S.R system co-channel coordinated control
9. Heating with nickel-chromium alloy high-speed heating wire
10. Equipped with precision liquid crystal display programmable temperature controller
11, with USB data transfer interface and Communication interface
12. Safety protection system includes over temperature, under phase/inverse equivalent protection
Principle
The equipment uses Japanese Panasonic Compressor and binary low temperature loop system design through the refrigeration system to achieve accurate control of different temperature domains. Temperature Humidity Control adopts P.I.D + S.S.R system co-channel coordinated control, with automatic calculation function, which can immediately correct the temperature Humidity change conditions. The heating system adopts nickel-chromium alloy high-speed heating wire, and the humidification system adopts stainless steel tube built-in nickel-chromium alloy high-speed heating wire and high temperature oxidation mg powder to achieve rapid Response and long-term stable operation.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the device to the designated position and fix the casters
2. Connect Power and Necessary Interface
3. Set test parameters through the touch setting interface
4. Select the program mode or the fixed value mode to run
5. Start the equipment and start the test
6. Monitor the test process through the observation window
7. After the test is completed, the data is exported through the USB interface
Notice
• Make sure the power connection is correct before the equipment runs
• Pay attention to the protection function status of over-temperature, under-phase/inverse equipment
• Regularly check the automatic hydration device of the humidification system
• Keep the test hole sealing plug intact
• The sample load-bearing should be evenly distributed and not exceed 25kg.
• After the equipment failure alarm, it will automatically shut down and need to be dealt with in time
• Confirm that all protection systems are functioning properly before use
