Overview

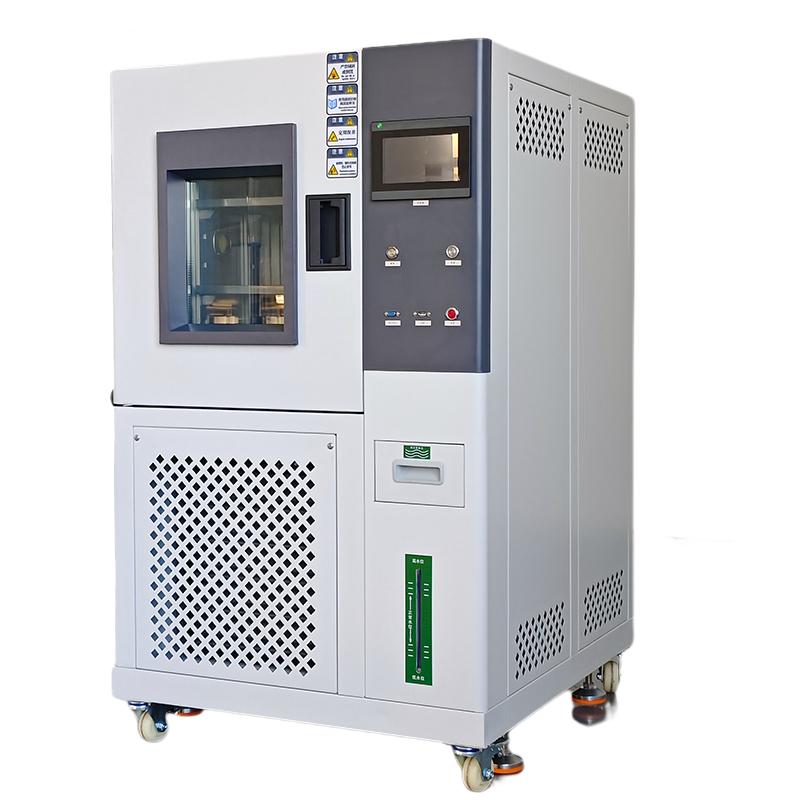

Lugong ST-80LB humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered during transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc.; or under high temperature, low temperature, heat and humidity alternating environment, inspection materials, accessories or instruments are resistant to high temperature, cold, moisture and heat performance and possible damage life reduction.
Features
1. The inner box is made of SUS304 #stainless steel plate, which has the advantages of acid resistance, corrosion resistance and easy cleaning
2. Cold rolled steel plate for the outer box
3. Adopt non-reactive explosion-proof door handle, easy to operate, safe and reliable
4. The thermal insulation system is filled with ultra-fine fiberglass, and the box door is sealed with refined silicone rubber
5. High-quality fixed PU movable wheels are installed at the bottom, which is convenient for mobile positioning
6. The sample holder is punched and bent into a mesh with SUS304 #stainless steel, bearing 25kg.
7. Equipped with φ 50mm test hole and double-decked vacuum strengthened Glass observation window
8. The refrigeration unit adopts Japanese Panasonic Compressor and American DuPont environmental protection refrigerant
9. Humidity control adopts P.I.D + S.S.R system co-channel coordinated control
10. Heating with nickel-chromium alloy high-speed heating wire
11. Adopt precision liquid crystal display programmable temperature controller
12. Safety protection system
Principle
The equipment realizes accurate temperature and Humidity control through the coordination of refrigeration system, heating and humidification system and Control system. The refrigeration system adopts Japanese Panasonic Compressor and binary low temperature circuit system design, the heating system adopts nickel-chromium alloy high-speed heating wire, and the humidification system adopts stainless steel tube built-in nickel-chromium alloy high-speed heating wire. Control system adopts smart digital display PID microcomputer temperature control instrument, and realizes accurate temperature and Humidity control through thermal equilibrate temperature regulation.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the device to the designated position and fix the casters
2. Connect the power supply and water source
3. Set test parameters through Touchscreen
4. Select the program mode or the fixed value mode to run
5. Start the equipment and start the test
6. Monitor the test process through the observation window
7. After the test is completed, the equipment will automatically stop
8. Export the test data through the USB interface
Notice
• Make sure the power connection is correct before the equipment runs
• Check whether the water supply system is normal before use
• Sample load-bearing should be evenly distributed and should not exceed 25kg
• Do not open the box door at will during the operation of the equipment
• Regularly check the functions of each protection system of the equipment
• Automatic shutdown after equipment failure alarm
• Clean and maintain the equipment in time after use
