Overview

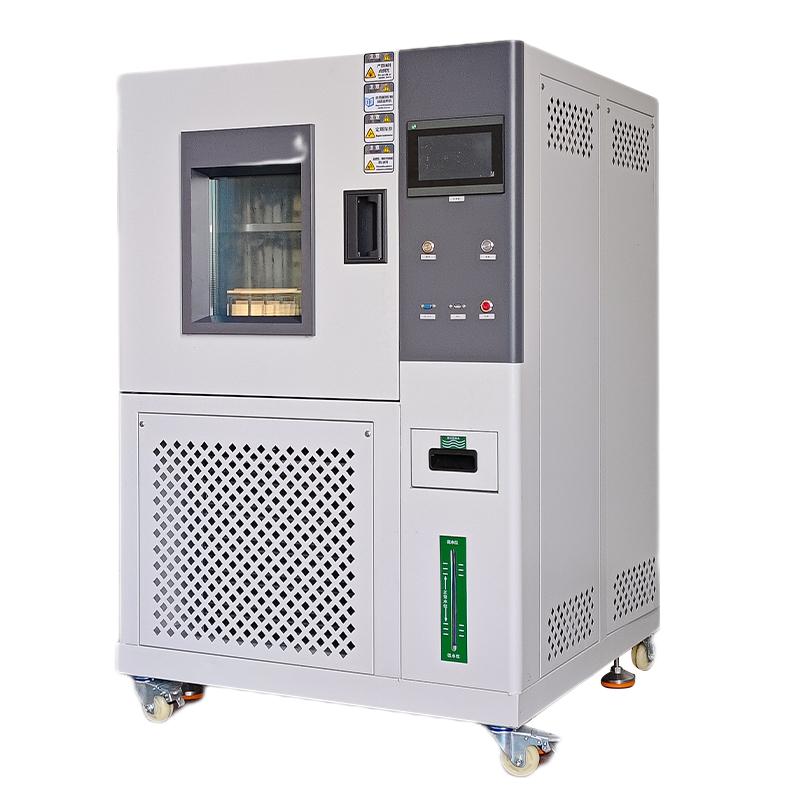

Lugong ST-100LB humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered in the transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc., inspection materials, accessories or equipment High temperature resistance, cold resistance, moisture resistance performance and possible damage life reduction.
Features
1. The box adopts SUS304 stainless steel inner box and Cold rolled steel plate paint outer box, equipped with explosion-proof door handle and ultra-fine fiberglass insulation system
2. Using Japanese Panasonic Compressor and American DuPont environmental protection refrigerant, equipped with binary low temperature circuit system
3. Temperature and Humidity control adopts P.I.D + S.S.R system co-channel coordination control, with automatic calculation function
4. The heating adopts nickel-chromium alloy high-speed heating wire, and the humidification adopts stainless steel tube with built-in nickel-chromium alloy high-speed heating wire
5. Equipped with precision liquid crystal display programmable temperature controller, supports multiple sets of multi-stage programming operations
6. With USB data transfer interface, can connect printer and computer to display Humidity Linear dispersion
7. Equipped with a complete protection system, including multiple protections such as over-temperature, fan overheating, and underphase/inverse
Principle
Humidity Control system to achieve environment simulation, using thermal equilibrate temperature control and isolation humidification system, coordinated control by P.I.D + S.S.R system, to achieve accurate Humidity regulation. The refrigeration system uses a binary low temperature circuit design, which is convenient for different temperature domains to use different Compressors for work.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the machine to the designated position through the bottom PU movable wheel and fix the casters
2. Connect the power supply (single-phase 220V)
3. Set the test parameters through the touch setting interface
4. Select the program mode or the fixed value mode to run
5. Monitor the test process through the observation window
6. Download the test data through the USB interface
Notice
• Samples should be evenly distributed on the sample rack according to the load-bearing capacity of 25kg
• Make sure the equipment is well grounded before use
• Regularly check the automatic replenishment device of the humidification system
• Pay attention to the status of the equipment running indicator light
• The equipment will automatically shut down after the fault alarm
• The test hole should be equipped with a special sealing plug when used
