Overview

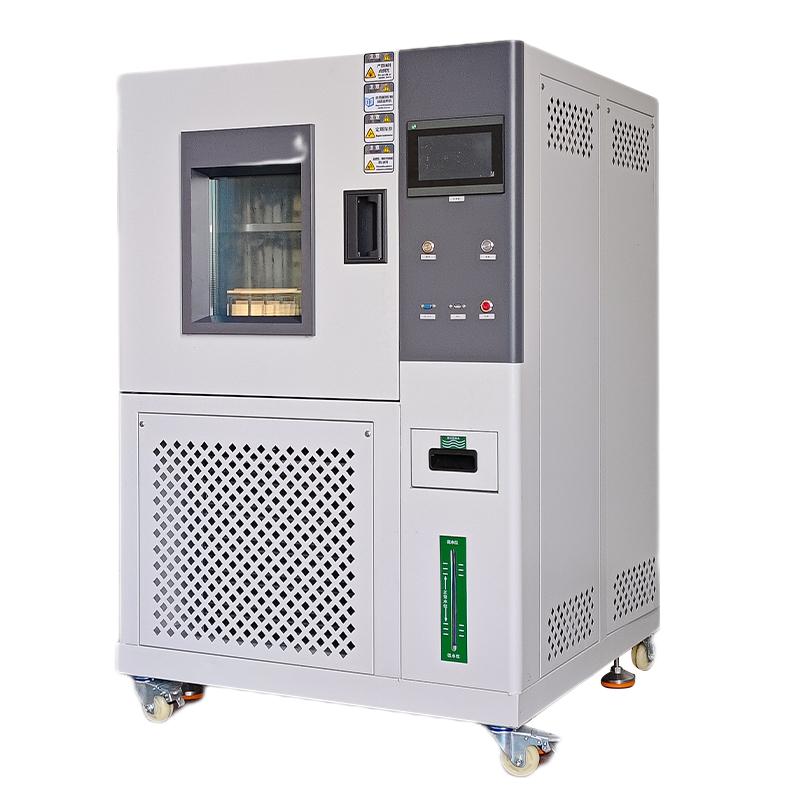

Lugong ST-100LC humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered during transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc.; or under high temperature, low temperature, heat and humidity alternating environment, inspection materials, accessories or instruments are resistant to high temperature, cold, moisture and heat performance and possible damage life reduction.
Features
1. The inner box is made of SUS304 #stainless steel plate, which has the advantages of acid resistance, corrosion resistance and easy cleaning
2. Cold rolled steel plate for the outer box
3. Adopt non-reactive explosion-proof door handle, easy to operate, safe and reliable
4. The thermal insulation system is filled with ultra-fine fiberglass, and the box door is sealed with refined silicone rubber
5. High-quality fixed PU movable wheels are installed at the bottom, which is convenient for mobile positioning
6. The sample holder is punched and bent into a mesh with SUS304 #stainless steel, bearing 25kg.
7. Equipped with φ 50mm test hole and double-decked vacuum strengthened Glass observation window
8. The refrigeration unit adopts Japanese Panasonic Compressor and American DuPont environmental protection refrigerant
9. Humidity control adopts P.I.D + S.S.R system co-channel coordinated control
10. Heating with nickel-chromium alloy high-speed heating wire
11. Adopt precision liquid crystal display programmable temperature controller
12. Main electrical components adopt Chint brand
13, with USB data transfer interface and Communication interface
14. Equipped with a complete protection system, including over-temperature, fan overheating, and under-phase/inverse equivalent protection
Principle
The equipment uses Japanese Panasonic Compressor and American DuPont environmental protection refrigerant to achieve low temperature environment through refrigeration system, uses nickel-chromium alloy high-speed heating wire to achieve high temperature environment through heating system, and realizes Humidity control through stainless steel humidifier. Temperature Humidity control adopts P.I.D + S.S.R system co-channel coordinated control, with automatic calculation function, which can immediately correct the temperature Humidity change conditions, making the temperature Humidity control more accurate and stable.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the machine to the designated position through the bottom PU movable wheel and fix the casters
2. Connect the power supply (single-phase 220V)
3. Set the test parameters through the touch setting interface
4. Select the program mode or the fixed value mode to run
5. Monitor the test process through the observation window
6. After the test is completed, the data can be downloaded through the USB interface
Notice
• Make sure the power connection is correct before the equipment runs
• Samples should be evenly distributed on the sample rack according to the load-bearing capacity of 25kg
• Pay attention to observe the running status of the equipment during use
• When a fault alarm occurs, it should be stopped immediately for inspection
• Regularly check the working status of the automatic water replenishment device
• Keep equipment well ventilated
• Non-professionals should not disassemble and repair
