Overview

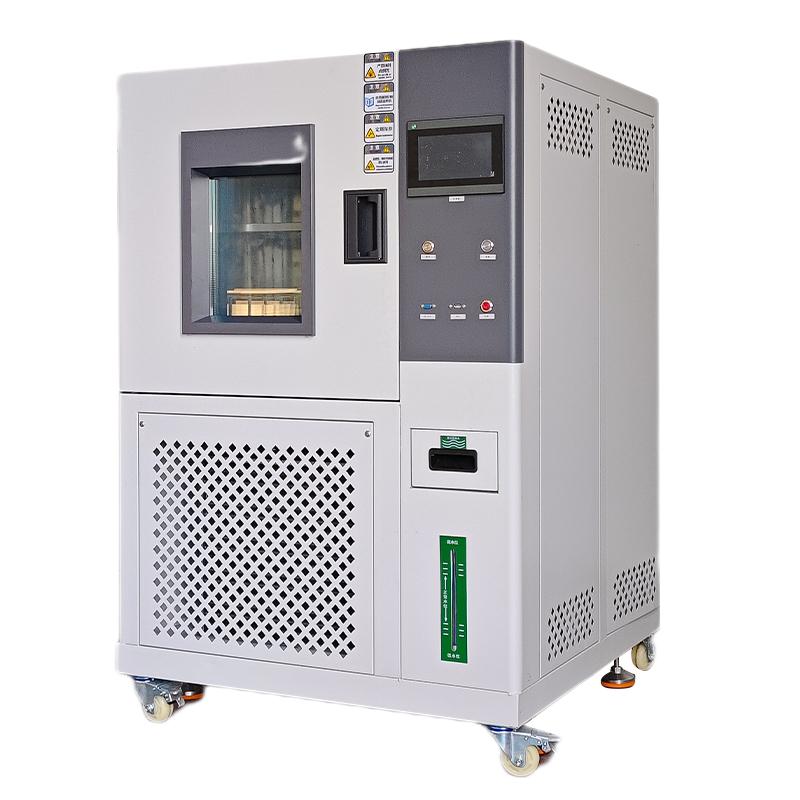

Lugong ST-100LD humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered during transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc.; or under high temperature, low temperature, heat and humidity alternating environment, inspection materials, accessories or instruments are resistant to high temperature, cold, moisture and heat performance and possible damage life reduction.
Features
1. The box adopts SUS304 #stainless steel inner box and Cold rolled steel plate paint outer box
2. Explosion-proof door handle design, easy and safe to operate
3.Ultra-fine fiberglass insulation system, refined silicone rubber sealing
4. Install high-quality fixed PU movable wheel at the bottom
5. SUS304 #stainless steel sample holder, load-bearing 25kg
6.Double-decked Vacuum Reinforced Glass Viewing Window with Heating Defrost
7. Using Japanese Panasonic Compressor and American DuPont environmental protection refrigerant
8. P.I.D + S.S.R Temperature and Humidity Coordinated Control system
9. Nickel-chromium alloy high-speed heating wire heating system
10. Built-in nickel-chromium alloy humidification system for stainless steel pipes
11. Precision LCD programmable temperature controller
12. Safety protection system
Principle
The equipment adopts thermal equilibrate temperature control mode, and coordinates the temperature and Humidity through the P.I.D + S.S.R system in the same channel. The refrigeration system uses Japanese Panasonic Compressor and American DuPont environmental protection refrigerant, and realizes precise temperature control through binary low temperature circuit system design. The heating system adopts nickel-chromium alloy high-speed heating wire, and the humidification system adopts stainless steel tube with nickel-chromium alloy high-speed heating wire to achieve rapid Response and stable control.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the device to the designated position and fix the casters
2. Connect the power supply (single-phase 220V)
3. Set test parameters through Touchscreen
4. Select the program mode or the fixed value mode to run
5. Monitor the test process through the observation window
6. Automatic shutdown after the test is completed
Notice
• Check the power connection before the equipment runs
• Sample load-bearing should be evenly distributed, no more than 25kg
• Regularly check the automatic hydration device of the humidification system
• Pay attention to the operating status indicator light of the equipment
• The equipment will automatically shut down after the fault alarm
• Confirm that the test hole sealing is in good condition before use
• Keep equipment well ventilated
