Overview

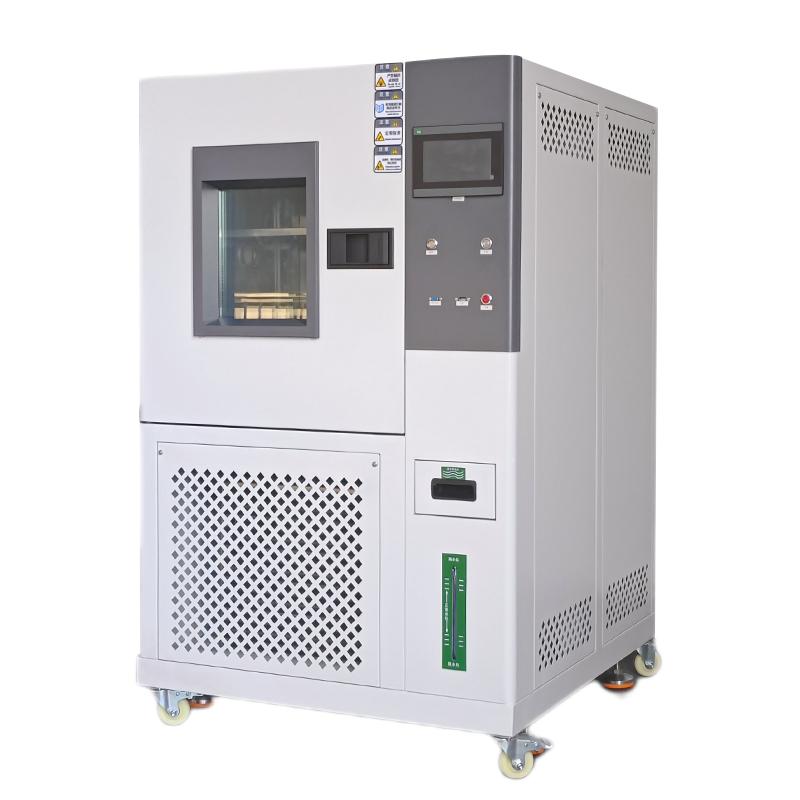

Lugong ST-150LB humidity chamber is mainly used to simulate the high temperature, low temperature or heat and humidity environment that may be encountered in the transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc., inspection materials, accessories or equipment High temperature resistance, cold resistance, moisture and heat resistance performance and possible damage life reduction.
Features
1. The box adopts SUS304 stainless steel inner box and Cold rolled steel plate paint outer box, equipped with explosion-proof door handle and double-decked vacuum reinforced Glass observation window
2. The thermal insulation system is filled with ultra-fine fiberglass, and the box door is sealed with refined silicone rubber
3. The refrigeration system adopts Japanese Panasonic Compressor and American DuPont environmental protection refrigerant, and adopts binary low temperature circuit system design
4. Temperature and Humidity control adopts P.I.D + S.S.R system co-channel coordination control, with automatic calculation function
5. The heating adopts nickel-chromium alloy high-speed heating wire, and the humidification adopts stainless steel tube with built-in nickel-chromium alloy high-speed heating wire
6. Control system adopts precision liquid crystal display programmable temperature controller, supports multiple groups of multi-stage programming operation
7. Equipped with a complete protection system, including over-temperature, fan overheating, underphase/reverse phase, overload and other protection functions
8. A fixed PU movable wheel is installed at the bottom for easy movement and positioning
Principle
Humidity Control system is used to simulate the environment, equilibrate the temperature and isolate the humidification system. Humidity Sensor monitors the environment parameters in real time, and the controller automatically adjusts the heating, cooling and humidification system according to the set value to maintain the constant Humidity conditions in the test chamber.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the device to the designated position and fix the casters
2. Connect power and water
3. Set test parameters and procedures through Touchscreen
4. Place the sample on a sample rack with adjustable spacing
5. Start the equipment operation test
6. Monitor the test process through observation windows and data displays
7. After the test is completed, the data can be exported through the USB interface
Notice
• The load-bearing capacity of the sample should be evenly distributed, and the load-bearing capacity of each sample holder should not exceed 25kg.
• Check whether the Power supply voltage meets the equipment requirements before use
• Regularly check the automatic replenishment device of the humidification system
• Pay attention to the status of the protection system when the equipment is running
• The test hole should be equipped with a special sealing plug when used
• It will automatically shut down when the equipment fails and alarm, and it can only be restarted after troubleshooting.
