Overview

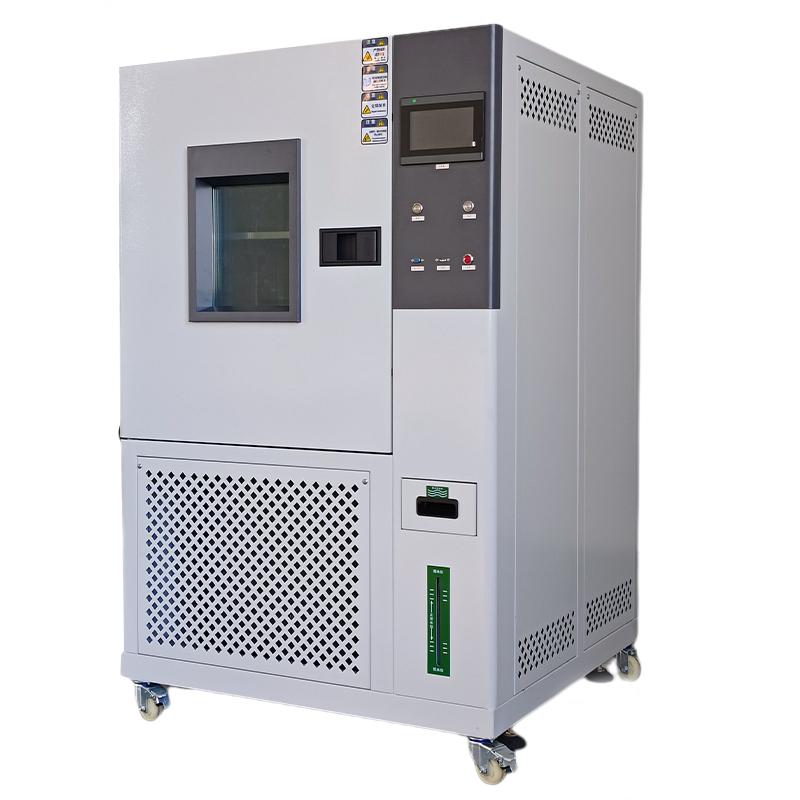

Lugong ST-225LA humidity chamber is mainly used to simulate the severe high temperature, low temperature or heat and humidity environment that may be encountered during transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc.; or under high temperature, low temperature, heat and humidity alternating environment, inspection materials, accessories or instruments are resistant to high temperature, cold, moisture and heat performance and possible damage life reduction.
Features
1. The inner box is made of SUS304 #stainless steel plate, which has the advantages of acid resistance, corrosion resistance and easy cleaning
2. Cold rolled steel plate paint treatment
3. Adopt non-reactive, explosion-proof door handle, easy to operate, safe and reliable
4. The thermal insulation system uses ultra-fine fiberglass to fill the thermal insulation area, effectively reducing temperature conduction
5. High-quality fixed PU movable wheels are installed at the bottom for easy movement and positioning
6. The sample holder is punched and bent into a mesh with SUS304 #stainless steel, and the spacing can be adjusted
7. The observation window adopts double-decked vacuum reinforced Glass, and the inner conductive film is heated and defrosted
8. The refrigeration unit adopts Japanese Panasonic Compressor and American DuPont environmental protection refrigerant
9. Temperature and Humidity Control Using P.I.D + S.S.R System Co-channel Coordinated Control
10. Heating with nickel-chromium alloy high-speed heating wire
11. The heating and humidification systems are completely independent, and Humidity has an automatic water replenishment device
12. Adopt precision liquid crystal display programmable temperature controller
13. With USB data transfer interface, can connect to printer or 232 Communication interface
14. Equipped with a complete protection system, including over-temperature, fan overheating, and under-phase/inverse equivalent protection
Principle
The equipment realizes the simulation of constant temperature and humidity environment through the coordination of refrigeration system, heating and humidification system and Control system. The refrigeration system adopts binary low temperature circuit system design, and different Compressors are used for work in different temperature ranges; the heating system adopts nickel-chromium alloy high-speed heating wire; the humidification system adopts stainless steel tube built-in nickel-chromium alloy high-speed heating wire; the Control system adopts thermal equilibrate temperature regulation method and the same channel coordination control of P.I.D + S.S.R system, with automatic calculation function, which can accurately control the temperature Humidity.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the machine to the designated position through the bottom PU movable wheel and fix the casters
2. Connect the three-phase 380V power supply
3. Supply water to the equipment through the front-mounted water supply tank
4. Use the touch setting interface to set test parameters
5. Select the program mode or the fixed value mode to run
6. Monitor the test process through the observation window
7. After the test is completed, the data can be downloaded through the USB interface
Notice
• Rated power 7.3kw, current 18A, need to use three-phase 380V power supply
• Samples should be evenly distributed on the sample rack according to the load-bearing capacity of 25kg
• Check whether the protection system function is normal before use
• Pay attention to protection functions such as equipment overtemperature and fan overheating
• Regularly check the overload of the refrigeration system and the overpressure protection of the refrigeration unit
• Device weight is about 265kg, pay attention to safety when moving
• A special sealing plug should be installed in time after the test hole is used
• If there is a failure alarm during the operation of the equipment, it will automatically shut down
