Overview

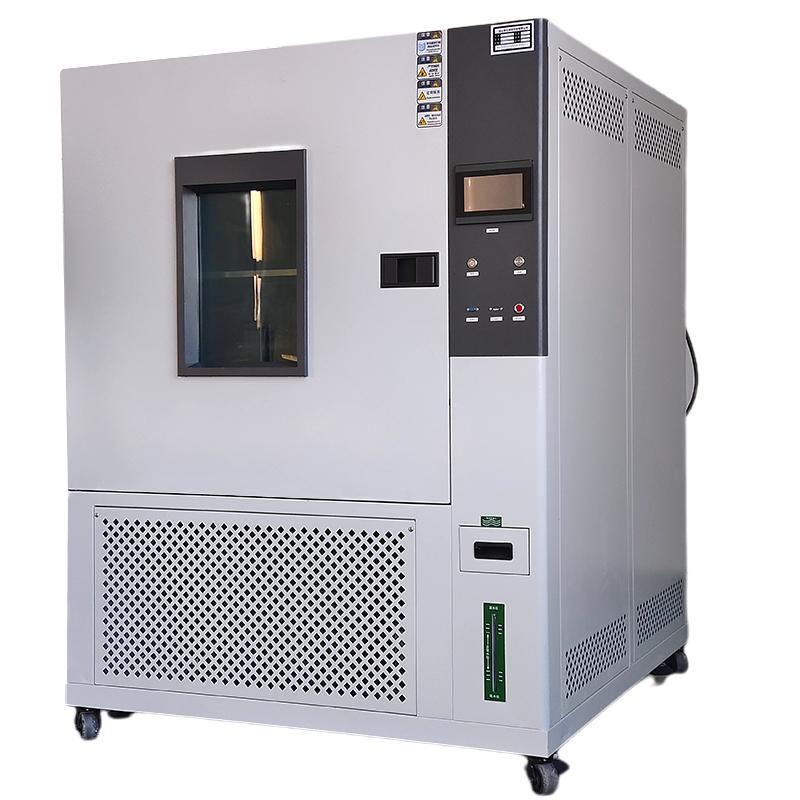

Lugong ST-1000LA humidity chamber is mainly used to simulate the high temperature, low temperature or heat and humidity environment that may be encountered in the transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc., inspection materials, accessories or instruments and equipment High temperature resistance, cold resistance, moisture and heat resistance performance and possible damage life reduction.
Features
1. The box adopts SUS304 #stainless steel inner box and Cold rolled steel plate paint outer box, equipped with explosion-proof door handle and ultra-fine fiberglass insulation system
2. Using Japanese Panasonic Compressor and American DuPont environmental protection refrigerant, equipped with binary low temperature circuit system
3. Temperature and Humidity control adopts P.I.D + S.S.R system co-channel coordinated control, with automatic calculation function
4. The heating adopts nickel-chromium alloy high-speed heating wire, and the humidification adopts stainless steel tube with built-in nickel-chromium alloy high-speed heating wire
5. Adopt precision liquid crystal display programmable temperature controller to support multiple sets of multi-segment programming operations
6. Equipped with a complete protection system, including over-temperature, fan overheating, underphase/reverse phase, and refrigeration system overload protection
Principle
Humidity is controlled by P.I.D + S.S.R system, thermal equilibrate is adopted, and the Compressor, heater and humidifier work together to accurately simulate high temperature, low temperature, heat and humidity environment, and realize the test of material performance.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the machine to the designated position through the bottom PU movable wheel and fix the casters
2. Connect the power supply (three-phase 380V)
3. Set the test parameters through Touchscreen, and choose the program mode or the fixed value mode
4. Place the sample on a sample rack with adjustable spacing
5. Start the equipment and start the test
6. Monitor the test process through the observation window
7. After the test is completed, the data can be exported through the USB interface
Notice
• Samples should be evenly distributed on the sample rack according to the load-bearing capacity of 25kg
• Make sure the equipment is well grounded before use
• Pay attention to the current and Power requirements when the equipment is running
• Regularly check the automatic water replenishment device
• It will automatically stop after the fault alarm, and it can only be restarted after troubleshooting.
• The device has a power-off memory function, and the power-off recovery mode can be set
