Overview

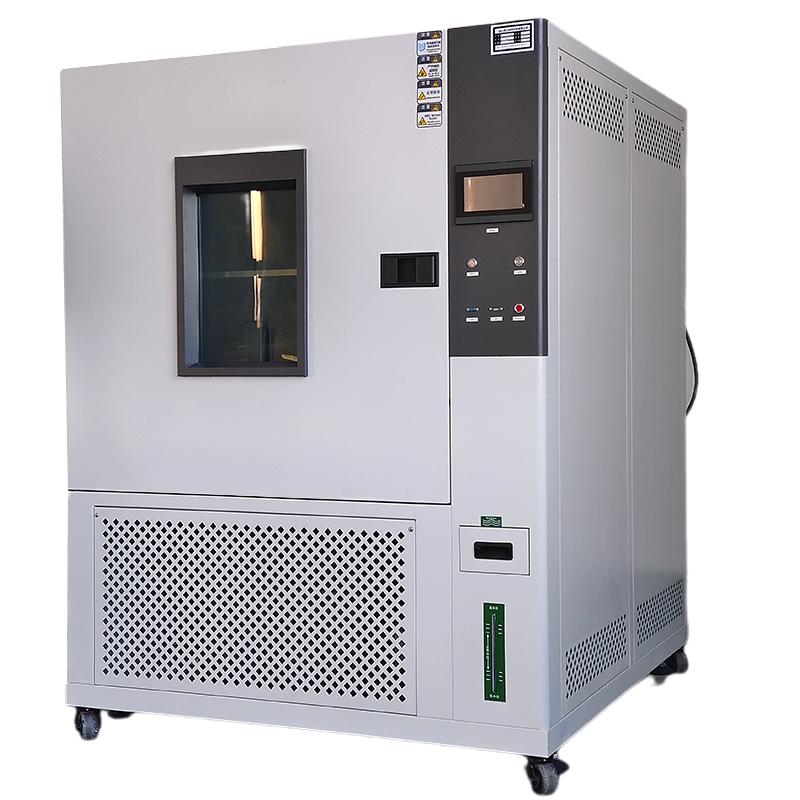

Lugong ST-1000LB humidity chamber is mainly used to simulate the high temperature, low temperature or heat and humidity environment that may be encountered in the transportation, storage and use of electronic Instruments, new materials, electricians, vehicles, metals, electronic products, aerospace materials, etc., inspection of materials, accessories or equipment High temperature resistance, cold resistance, moisture resistance performance and possible damage life reduction. The equipment adopts a precision Humidity Control system, which can be tested for high temperature, low temperature, heat humidity and alternating environment.
Features
1. The box adopts SUS304 #stainless steel inner box and Cold rolled steel plate paint outer box, which has the characteristics of corrosion resistance and easy cleaning
2. Equipped with explosion-proof door handle and refined silicone rubber sealing, safe and reliable
3. The insulation system is filled with ultra-fine fiberglass, which effectively reduces temperature conduction
4. Using Japanese Panasonic Compressor and American DuPont environmental protection refrigerant, the refrigeration system is stable and efficient
5. Temperature and Humidity control using P.I.D + S.S.R system, accurate and stable control
6. Equipped with double-decked vacuum reinforced Glass observation window, can clearly observe the test process
7. With USB data transfer interface, can connect printer and computer display Linear dispersion
8. Equipped with a complete protection system, including over-temperature, under-phase, overload and other protection functions
Principle
The equipment realizes the simulation of constant temperature and humidity environment through the coordinated work of refrigeration system, heating humidification system and Control system. The refrigeration system adopts Japanese Panasonic Compressor and binary low temperature circuit design, the heating system adopts nickel-chromium alloy high-speed heating wire, and the humidification system adopts stainless steel tube built-in heating device. Temperature Humidity control adopts P.I.D + S.S.R system co-channel coordinated control, with automatic calculation function, which can immediately correct the temperature Humidity change conditions and realize accurate and stable environment control.
Applications
Electronic Instruments, New Materials, Electrical, Vehicles, Metals, Electronics, Aerospace Materials
Standards
GB2423.1-2008/IEC6008-2-1-2007、GB/T 2423.2-2008、GJB150.3A－2009、GJB150.4A－2009、GB2423.22-2008、GBT 2424.5-2006、GB/T 10589-2008、GB/T2423.3-2008(IEC68-2-3)
Steps
1. Move the device to the designated position and fix it through the bottom PU activity wheel
2. Connect the three-phase 380V power supply
3. Set the test parameters through Touchscreen, you can choose the program method or the fixed value method
4. Adjust the sample holder spacing and distribute the samples evenly on the sample holder
5. Start the equipment operation and monitor the test process through the observation window
6. Connect computer via USB interface to display and store Humidity Linear dispersion data in real time
7. After the test is completed, the equipment automatically stops running
Notice
• Sample load-bearing should be evenly distributed, with a maximum load-bearing capacity of 25kg for a single sample holder.
• Make sure the casters are fixed before the equipment runs
• Pay attention to check the power phase, the device has underphase/reverse phase protection function
• Regularly check the automatic hydration device to ensure that the humidification system is working normally
• The equipment has protection functions such as overtemperature and overload, and will automatically shut down after fault alarm
• When using the test hole, a special sealing plug needs to be used together
• After the device is powered off, the recovery mode can be set to hot/cold/stop
