Overview

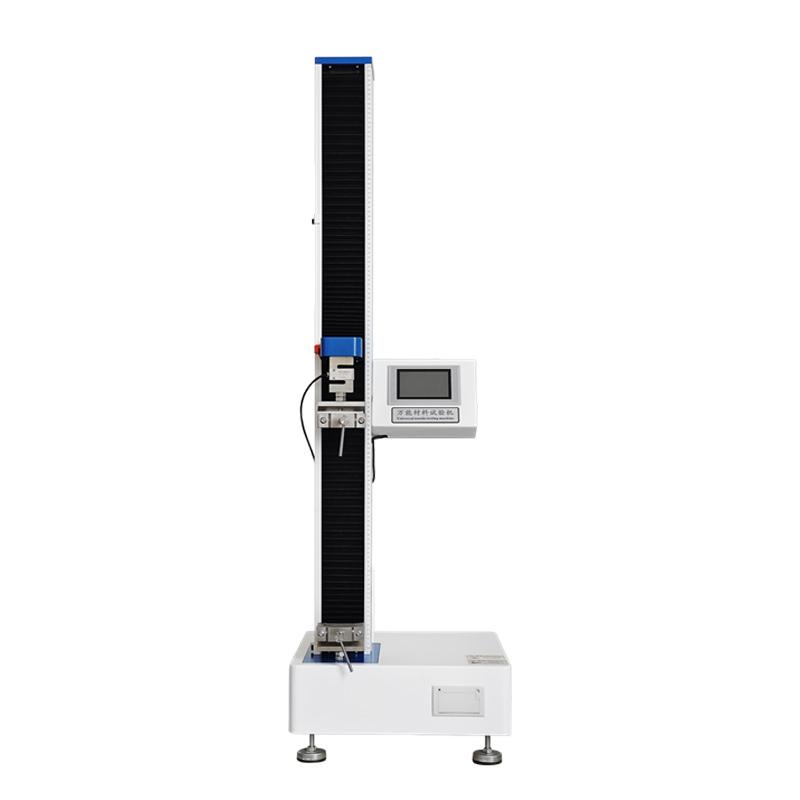

Digital single-arm Universal Testing Machine STX5000 is a new generation of microcomputer-controlled electronic universal testing machine specially designed for universities and scientific research institutes. High Accuracy stepper motor and driver are used to drive the precision ball drive screw and guide rod to load after deceleration to complete the test of tensile, compression, bending, shear and other mechanical properties of the sample. It has a wide and accurate loading speed and force measurement range.
Features
1. The main engine adopts a high-steel single-arm structure with a beautiful appearance
2. High Accuracy Ball Screw for Efficient and Smooth Transmission
3. The transmission part adopts arc tooth synchronous belt drive, and there is no gap in both directions during the transmission process
4. High Accuracy Stepper Motor and Drive System to Ensure Smooth Transmission and Precise Control
5. The fixture is specially designed for firm clamping, easy operation, and no jaw slippage
6. The special process guarantees the coaxiality of the testing machine and eliminates the influence of irregular samples on the Sensor
7. Large LCD screen real-time display control parameters and measurement results
8. With overload protection and other functions
Principle
High Accuracy stepper motor and driver are used to drive the precision ball drive screw and guide rod to load after deceleration to complete the test of tensile, compression, bending, shearing and other mechanical properties of the sample. Control system includes load measurement, displacement measurement and deformation measurement system, which has high accuracy and Sensitivity to the measurement and control of load, deformation and displacement.
Applications
Plastic film, Composite film, Soft Encasement material, Adhesive, Adhesive tape, sticker, rubber, paper and other products of tensile, disbonding tearing and other performance testing, scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments
Standards
Force Precision: Level 1 Force Indication Error: Better than indication +/- 1%
Steps
1. Turn on the power supply and start the device
2. Set test parameters
3. Install the specimen to the fixture
4. Start the test and observe the control parameters and measurement results displayed on the large LCD screen
5. Save the data after the test is completed
6. Power off the device
Notice
• The working environment should be kept at room temperature - 35 ° C, relative humidity should not exceed 80%
• power requirements single phase, 220V +/- 10%, 50Hz
• Pay attention to mechanical limit protection and software overload protection functions
• Test space can be customized according to user request
• Ensure that the sample is firmly clamped to avoid jaw slippage
