Overview

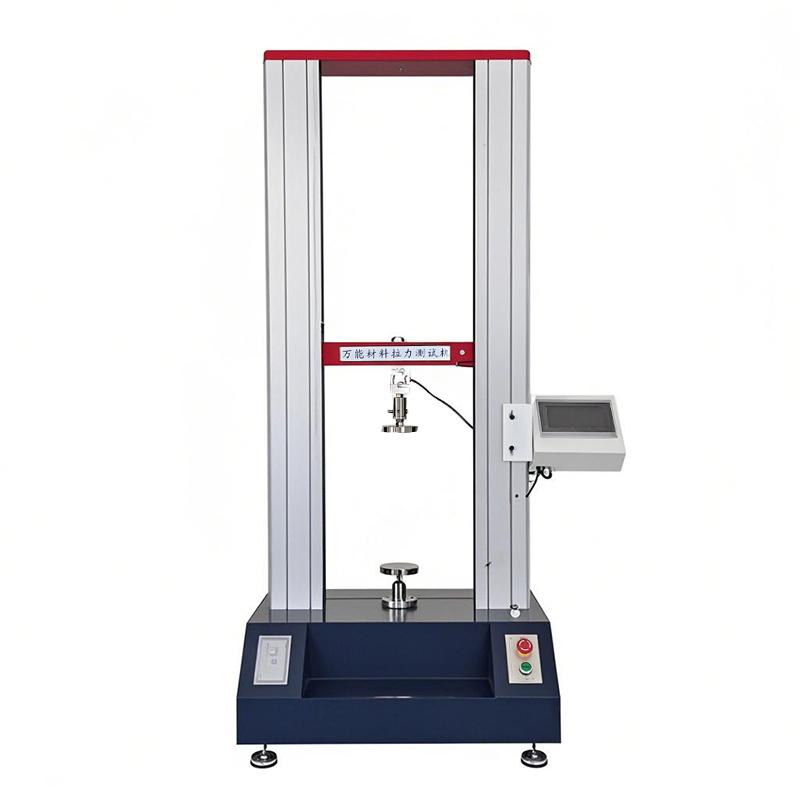

Digital Display Double Arm Universal Testing Machine STX20K is a micro-controlled electronic universal testing machine of Lugong brand. The host and auxiliary equipment design integrate advanced technology, with beautiful appearance, convenient operation, stable and reliable performance. The equipment is widely used in metal, Non-metallic, Building materials, aerospace, machinery manufacturing, Wire and cable industries for material inspection and analysis. It is a reliable testing equipment for scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Features
1. The speed control system adopts servo motor and synchronous belt deceleration mechanism, which has stable and reliable performance and protection devices such as overcurrent, overvoltage and overload.
2. The transmission part adopts arc synchronous toothed belt, precision ball screw pair transmission, smooth transmission, low noise and high transmission efficiency.
3. Touchscreen Operation mode, LCD real-time display, overcomes the problem that the old digital tube display is prone to failure, and is beautiful, convenient and fast.
Principle
System through the controller, the speed control system to control the rotation of the servo motor, decelerated by the deceleration system through the precision screw sub-belt beam rise, fall, complete the tensile mechanical properties of the sample test, no pollution, low noise, high efficiency, with a wide speed range.
Applications
Metal, Non-metallic, Building materials, Aerospace, Machinery manufacturing, Wire and cable industries
Steps
1. Set the test parameters through the controller.
2. The speed control system controls the rotation of the servo motor.
3. After the deceleration system is decelerated, it rises or falls through the precision screw sub-belt beam.
4. Complete the tensile mechanical properties test of the sample.
Notice
• The working environment should be kept at room temperature of about 35 ° C, and the relative humidity should not exceed 80%.
• The power supply of the whole machine is single-phase, 220V +/- 10%, 50Hz.
• When operating, pay attention to the status of overcurrent, overvoltage, overload and other protective devices.
• Ensure the smooth operation of the transmission part to avoid abnormal noise.
