Overview

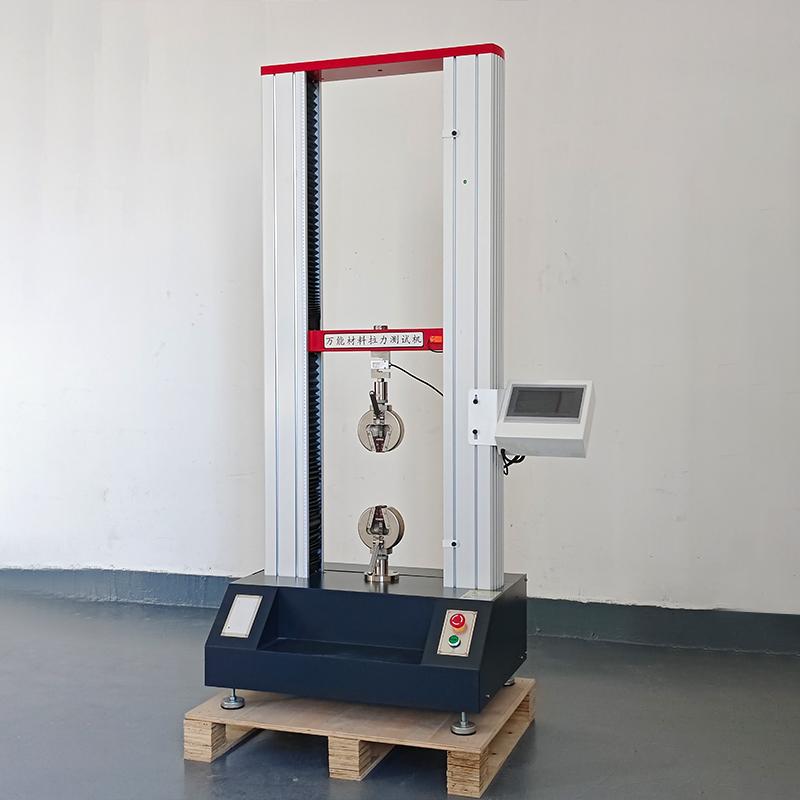

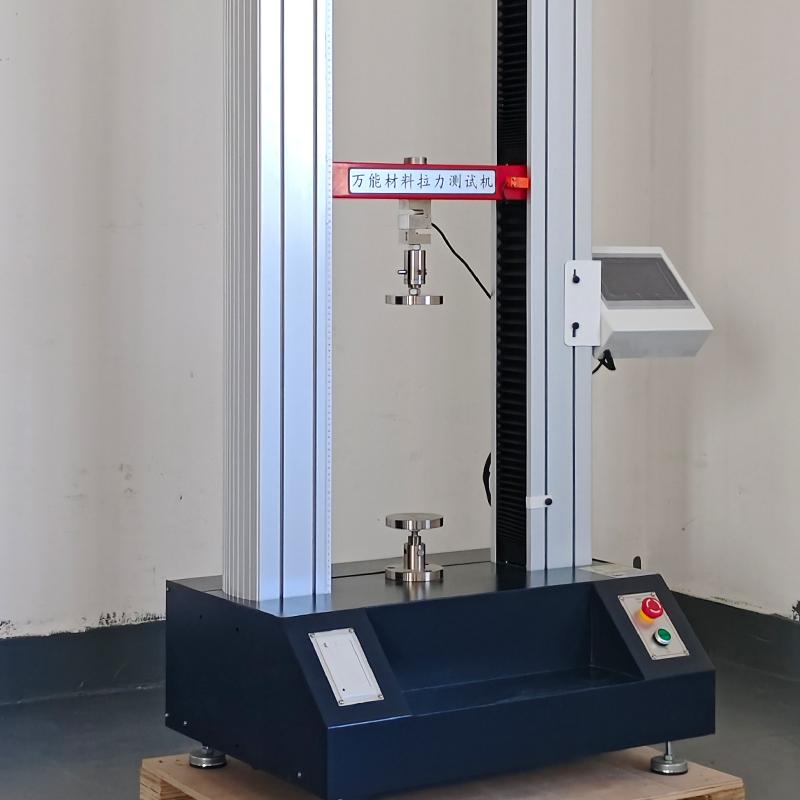

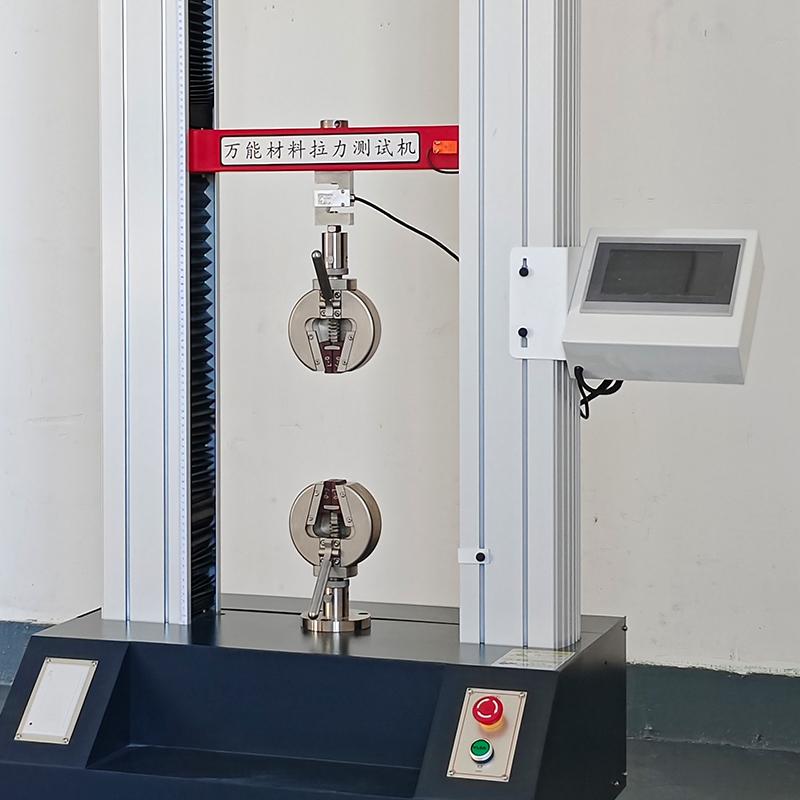

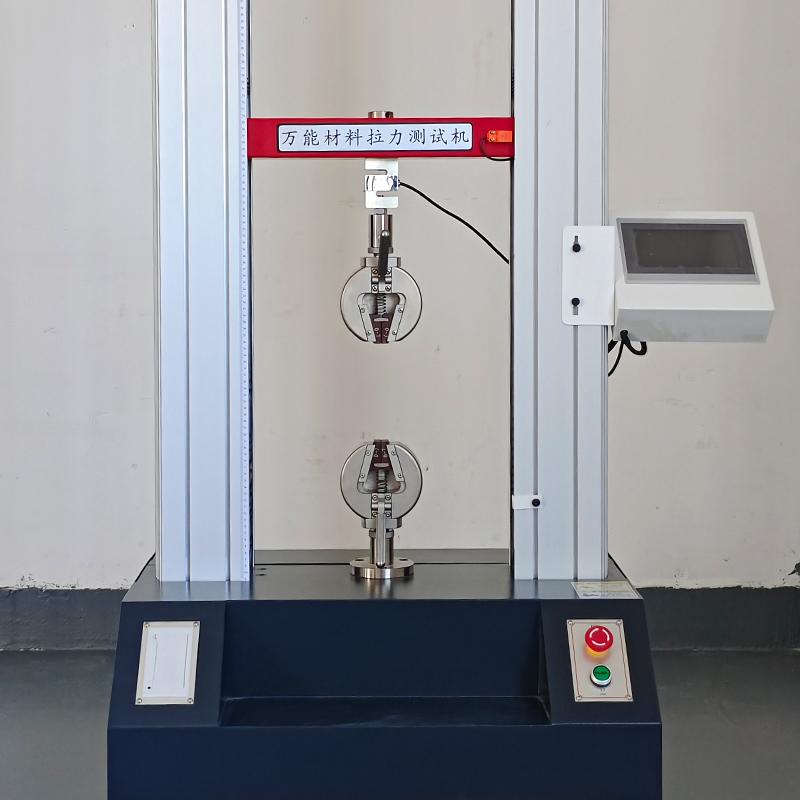

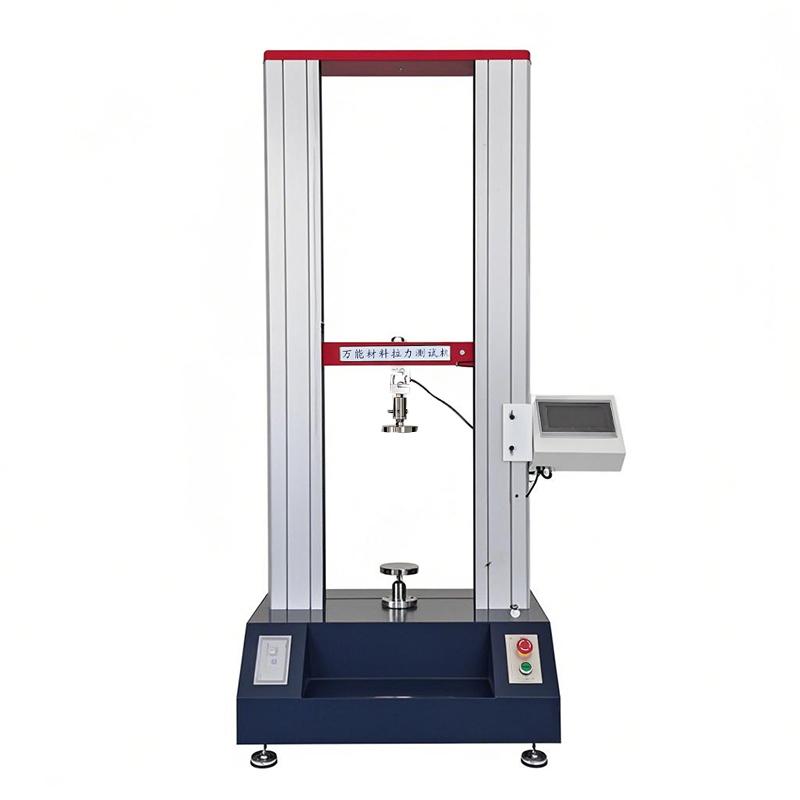

Lugong STX50K Digital Display Double Arm Universal Testing Machine is a digital display double arm micro-controlled electronic universal testing machine. The host and auxiliary equipment are designed to integrate advanced technology, with beautiful appearance, convenient operation and stable and reliable performance. The system controls the rotation of the servo motor through the controller, decelerates through the deceleration system, and completes the tensile mechanical properties test of the sample through the precision screw sub-belt beam. It has the characteristics of no pollution, low noise, high efficiency, and wide speed regulation range. It is widely used in metal, Non-metallic, Building materials, aerospace, machinery manufacturing, Wire and cable industries. Material inspection and analysis is a reliable test equipment for scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Features
1. The speed control system adopts servo motor and synchronous belt deceleration mechanism, which has stable and reliable performance and protection devices such as overcurrent, overvoltage and overload.
2. The transmission part adopts arc synchronous toothed belt, precision ball screw pair transmission, stable transmission, low noise and high transmission efficiency.
3. Touchscreen Operation mode, LCD real-time display, overcome the old digital tube display prone to failure, beautiful, convenient and fast.
Principle
The system is controlled by the controller and the speed control system to control the rotation of the servo motor. After the deceleration system is decelerated, the tensile mechanical properties of the sample are completed by the rise and fall of the precision lead screw sub-belt beam.
Applications
Metal, Non-metallic, Building materials, Aerospace, Machinery Manufacturing, Wire and cable and other industries Material inspection and analysis, Scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration departments
Steps
1. Select the menu (Chinese/English) through the Touchscreen Operating interface.
2. Set test parameters, such as beam traverse speed (0.1-500 mm/min).
3. Start the system, servo motor drive beam lift tensile test.
4. The LCD display displays the test data in real time.
Notice
• The working environment needs to be controlled at room temperature of about 35 ° C, and the relative humidity should not exceed 80%.
• Power requirements are 220 +/- 10% VAC, Frequency 50Hz, Power 1.5kW.
• Pay attention to the status of overcurrent, overvoltage and overload protection devices during operation.
• Regularly check transmission components such as timing belts and ball screws to ensure smooth operation.
