Overview

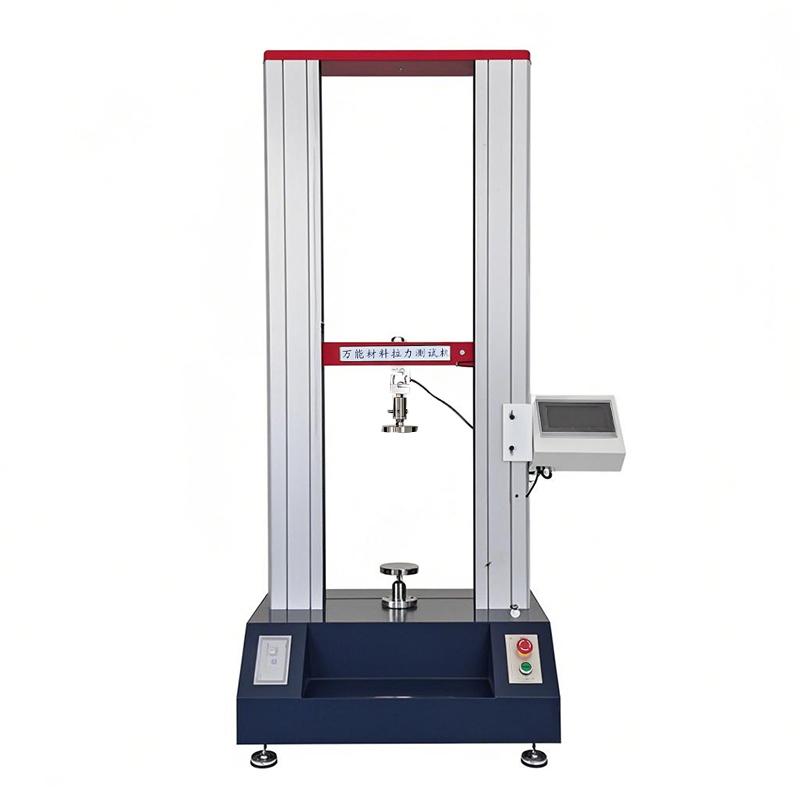

Digital display dual-arm Universal Testing Machine model STX100K, produced by Lugong brand, is a digital display dual-arm micro-controlled electronic universal testing machine. The machine is designed to integrate advanced technology with auxiliary equipment, with beautiful appearance, convenient operation, stable and reliable performance. It is widely used in metal, Non-metallic, Building materials, aerospace, machinery manufacturing, Wire and cable industries for material inspection and analysis. It is a reliable testing equipment for scientific research institutions, Universities & colleges, industrial and mining enterprises, technical supervision, commodity inspection and arbitration and other departments.
Features
1. The speed control system adopts servo motor and synchronous belt deceleration mechanism, which has stable and reliable performance and protection devices such as overcurrent, overvoltage and overload.
2. The transmission part adopts arc synchronous toothed belt and precision ball screw pair transmission, which has stable transmission, low noise and high transmission efficiency.
3. Touchscreen Operation mode, LCD real-time display, beautiful, convenient and fast.
Principle
The system controls the servo motor to rotate through the controller and the speed control system. After deceleration by the deceleration system, the tensile mechanical properties test of the sample is completed through the rise and fall of the precision lead screw sub-belt beam. The process has no pollution, low noise, high efficiency and a wide speed regulation range.
Applications
Metal, Non-metallic, Building materials, Aerospace, Machinery manufacturing, Wire and cable industries
Steps
1. Select the Chinese or English menu through the Touchscreen Operating interface.
2. Set the beam traverse speed (range 0.1-500 mm/min).
3. Start the system, the servo motor drives the beam to rise or fall for tensile test.
4. Observe the force and displacement data on the LCD display in real time.
Notice
• The working environment should be kept at room temperature of about 35 ° C, and the relative humidity should not exceed 80%.
• Power requirements are 220 +/- 10% VAC, Frequency 50Hz, Power 1.5kW.
• Ensure that the equipment is placed smoothly to avoid vibration interference.
• Regularly check transmission components and electrical systems to prevent overload operation.
