Overview

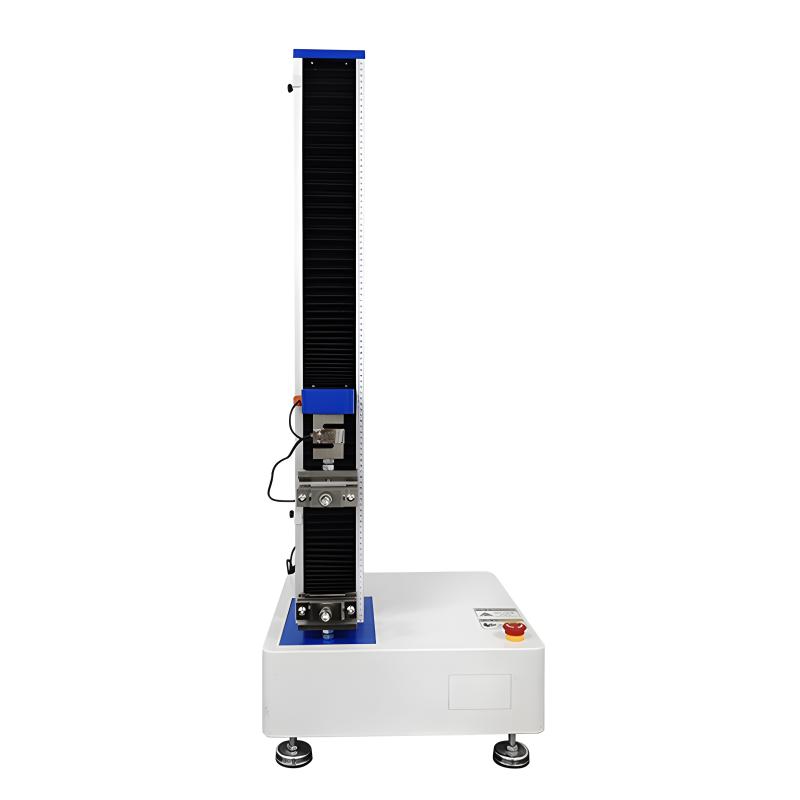

Lugong STD5000 single-arm Universal Testing Machine is suitable for measuring the mechanical properties and related physical parameters of various materials under stretching, compression, bending, shearing, tearing, disbonding, puncture and other states. It can perform stretching, compression, three-point bending, four-point bending, shearing, tearing, disbonding, finished shoe puncture, carton holding pressure, foam cyclic compression, spring tension and compression and various dynamic and static cyclic tests, and can test and provide data according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Features
1. Mechanical process structure: The main frame consists of a base, a column and a precision ball screw to form a Floor-Standing structure; the drive loading system adopts a servo motor, a planetary gear reducer and a synchronous toothed belt reducer to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading. Beautiful shape, Stability, rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
2. Control and measurement system: user rights hierarchical management mode; has a powerful test management function; powerful data and Linear dispersion analysis function; the convenience of report editing; the test unit can be arbitrarily set according to the needs; multiple protection mechanisms; test data reminder storage to avoid the loss of test data caused by accidents; multi-language one-click switching; using USB or serial communication, data transmission is stable and reliable, and anti-interference ability is strong.
Principle
The drive loading system adopts servo motor, planetary gear reducer and synchronous toothed belt reducer to drive the high-precision ball screw to rotate, and then drives the moving beam to realize loading. The data collection and analysis are carried out through the control and measurement system.
Applications
Material mechanical performance test, finished shoe puncture test, carton holding pressure test, foam cycle compression test, spring tension and compression test, dynamic and static cycle test
Standards
GB、ISO、DIN、ASTM、JIS
Steps
1. Set user permissions and test parameters.
2. Select the type of test (e.g. tensile, compression, etc.).
3. Start the servo motor drive loading system.
4. Linear dispersion analysis and data collection.
5. Store test data and generate reports.
Notice
• Ensure that the power supply is single phase 220 +/- 10% VAC, Frequency 50Hz.
• Avoid accidental power outages to prevent loss of test data.
• Customize Effective Stretch or Compression Travel and Dimensions as required.
• Pay attention to anti-interference when using USB or serial communication.
