Overview

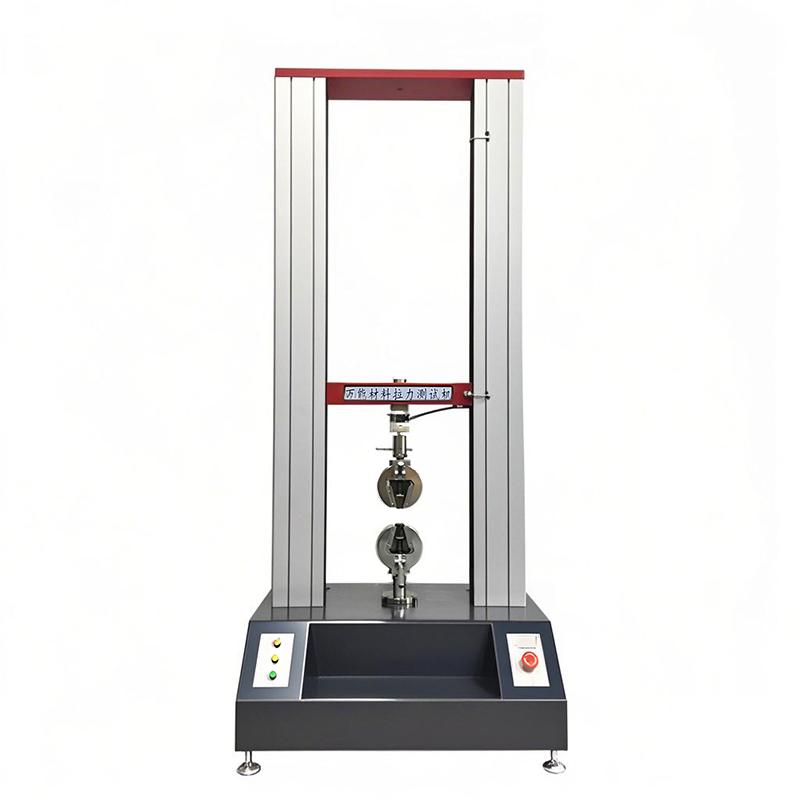

Lugong STS5000 Double Arm Universal Testing Machine is suitable for measuring the mechanical properties and related physical parameters of various materials under stretching, compression, bending, shearing, tearing, disbonding, puncture and other states. It can perform stretching, compression, three-point bending, four-point bending, shearing, tearing, disbonding, finished shoe puncture, carton holding pressure, foam cycle compression, spring tension and compression and various dynamic and static cycle tests, and can test and provide data according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Features
1. Mechanical process structure: The main frame consists of a base, two columns and two precision ball screws to form a gate-type floor-to-ceiling frame structure. The transmission loading system adopts a servo motor and a synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate and drive the moving beam to achieve loading. Beautiful shape, Stability, rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
2. Control and measurement system: user rights hierarchical management mode, powerful test management function, powerful data and Linear dispersion analysis function, convenient report editing, test unit can be arbitrarily set according to needs, multiple protection mechanisms, test data reminder storage to avoid accidental loss, multi-language one-click switching, using USB or serial communication, stable and reliable data transmission, strong anti-interference ability.
Principle
The main frame consists of a base, two columns and two precision ball screws to form a gate-type floor-to-ceiling frame structure; the drive loading system adopts a servo motor and a synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drive the moving beam to achieve loading, so as to carry out tensile, compression, bending, shearing, tearing, disbonding, puncture and other mechanical properties testing.
Applications
Material tensile test, compression test, bending test, shear test, tear test, disbonding test, finished shoe puncture test, carton holding pressure test, foam cyclic compression test, spring tension and compression test, dynamic and static cyclic test
Standards
GB、ISO、DIN、ASTM、JIS
Steps
1. Set test parameters and units
2. Select the test type (e.g. tensile, compression, etc.)
3. Start the servo motor to drive the moving beam to load
4. Surveillance data collection and Linear dispersion analysis
5. Store test data and generate reports
Notice
• Ensure that the power supply is 220 +/- 10% VAC, Frequency 50Hz
• Avoid unexpected power outages to prevent loss of test data
• Customize Effective Stretch Travel, Compression Travel or Dimensions on Demand
• Use multiple protection mechanisms to ensure safe operation
• Regularly check the mechanical structure and transmission system to maintain accuracy
