Overview

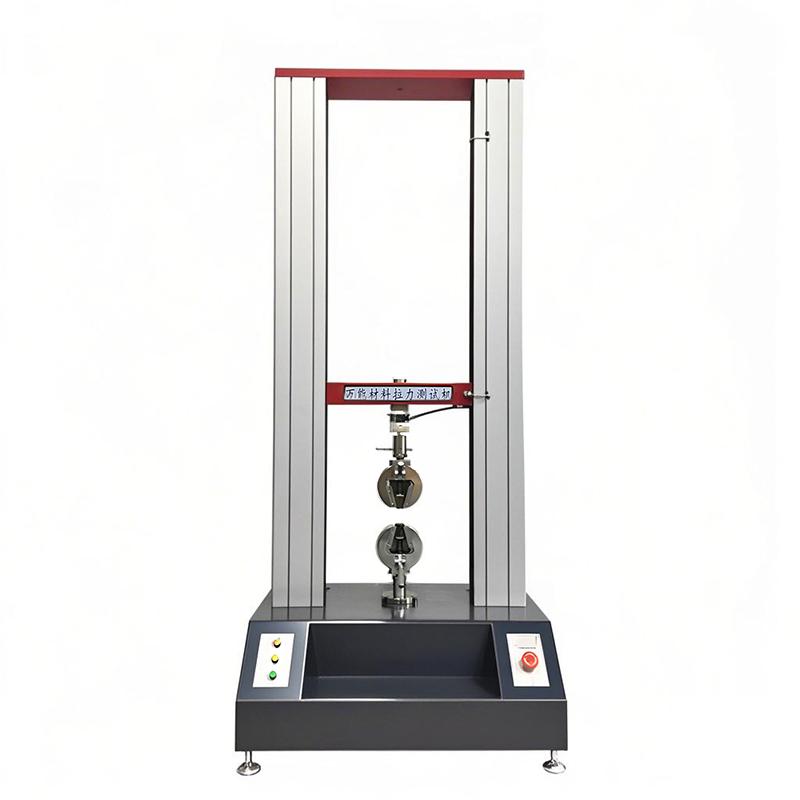

Lugong STS20K Double Arm Universal Testing Machine is suitable for measuring the mechanical properties and related physical parameters of various materials under stretching, compression, bending, shearing, tearing, disbonding, puncture and other states. It can perform stretching, compression, three-point bending, four-point bending, shearing, tearing, disbonding, finished shoe puncture, carton holding pressure, foam cyclic compression, spring tension and compression and various dynamic and static cyclic tests, and can test and provide data according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Features
1. The main frame adopts the base, two columns and two precision ball screws to form the gate-type floor frame structure, which has beautiful appearance, good Stability, high rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
2. The drive loading system uses a servo motor and a synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate, and then drives the moving beam to achieve loading.
3. The control and measurement system has a hierarchical management mode of user rights, powerful test management functions, powerful data and Linear dispersion analysis functions, report editing convenience, the test unit can be arbitrarily set according to the needs, multiple protection mechanisms, test data reminder storage to avoid data loss, multi-language one-click switching, USB or serial communication to ensure stable and reliable data transmission and strong anti-interference ability.
Principle
The testing machine drives the high-precision ball screw to rotate through the servo motor and the synchronous toothed belt deceleration device, thereby driving the moving beam to realize loading, applying forces such as stretching, compression, bending and shearing to the material, and measuring related mechanical properties and physical parameters. Control and measurement systems collect and process data to ensure test accuracy and Reliability.
Applications
Material mechanical performance test, tensile test, compression test, bending test, shear test, tear test, disbonding test, finished shoe puncture test, carton holding pressure test, foam cycle compression test, spring tension and compression test, dynamic and static cycle test
Standards
GB、ISO、DIN、ASTM、JIS
Steps
1. Set the test parameters and units according to the test requirements.
2. Install the specimen within the effective test width.
3. Start the servo motor to drive the moving beam for loading.
4. Monitor the test process and data through the control and measurement system.
5. After the test is completed, store the data and generate a report.
Notice
• Ensure that the power supply is 220 +/- 10% VAC, Frequency 50Hz, Power 1.5kW.
• Operate within the Force Measurement range to avoid overloading.
• Check the mechanical structure and transmission system regularly to ensure Stability and accuracy.
• Use multiple protection mechanisms to prevent accidental data loss.
• When customizing Effective Stretch Travel, Compression Travel and Dimension according to user request, it is necessary to confirm the specifications in advance.
