Overview

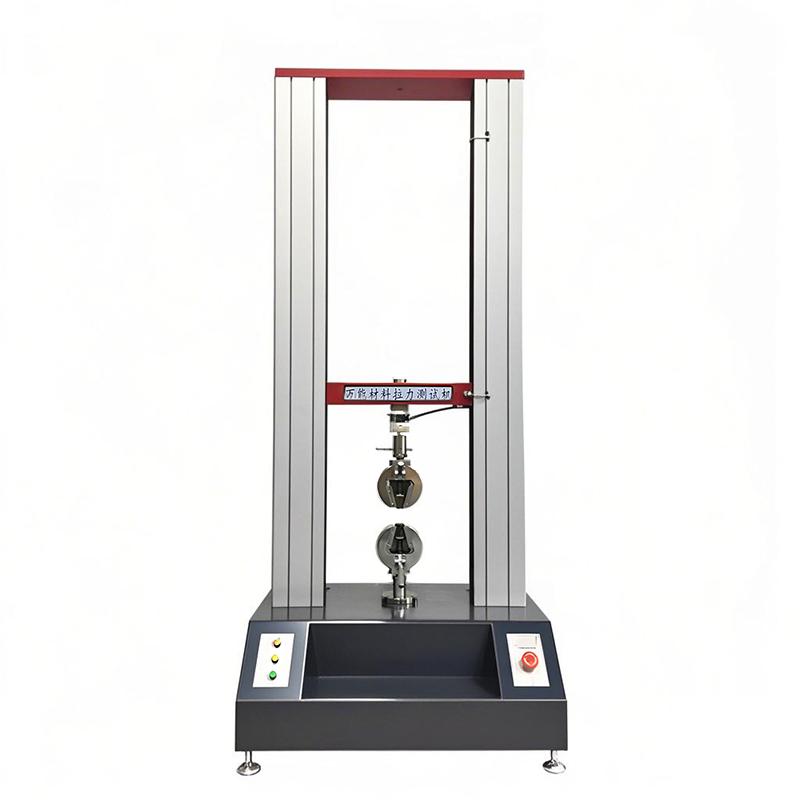

Lugong STS50K Double Arm Universal Testing Machine is suitable for measuring the mechanical properties and related physical parameters of various materials under stretching, compression, bending, shearing, tearing, disbonding, puncture and other states. It can perform stretching, compression, three-point bending, four-point bending, shearing, tearing, disbonding, finished shoe puncture, carton holding pressure, foam cyclic compression, spring tension and compression and various dynamic and static cyclic tests, and can test and provide data according to GB, ISO, DIN, ASTM, JIS and other domestic and international relevant standards.
Features
1. Mechanical process structure: The main frame consists of a base, two columns and two precision ball screws to form a gate-type floor-to-ceiling frame structure. The transmission loading system adopts a servo motor and a synchronous toothed belt deceleration device to drive the high-precision ball screw to rotate and drive the moving beam to achieve loading. It has the characteristics of beautiful appearance, good Stability, large rigidity, high control accuracy, high work efficiency, low noise, energy saving and environmental protection.
2. Control and measurement system: user rights hierarchical management mode, powerful test management function, powerful data and Linear dispersion analysis function, convenient report editing, test unit can be arbitrarily set according to needs, multiple protection mechanisms, test data reminder storage to avoid data loss, multi-language one-click switching, using USB or serial communication, stable and reliable data transmission, strong anti-interference ability.
Principle
The testing machine drives the high-precision ball screw to rotate through the servo motor and the synchronous toothed belt deceleration device, and then drives the moving beam to realize the loading, so as to apply forces such as stretching, compression, bending and shearing to the material, and measure the relevant mechanical properties. Control system uses advanced technology to ensure accurate measurement and stable transmission of force value, deformation and displacement.
Applications
Material mechanical performance test, tensile test, compression test, bending test, shear test, tear test, disbonding test, finished shoe puncture test, carton holding pressure test, foam cycle compression test, spring tension and compression test, dynamic and static cycle test
Standards
GB、ISO、DIN、ASTM、JIS
Steps
1. Set test parameters and units according to test requirements.
2. Install the specimen within the effective test width.
3. Select the test mode (e.g. stretching, compression, etc.).
4. Start the servo motor to drive the moving beam for loading.
5. Real-time monitoring of force values, deformation, and displacement data.
6. Save the data and generate a report after the test is completed.
Notice
• Ensure that the power supply is 220 +/- 10% VAC, Frequency 50Hz, to avoid voltage instability affecting the operation of the equipment.
• Use within the Force Measurement range to avoid damage to equipment due to overload.
• Regularly check the ball screws and transmission system to ensure lubrication and cleanliness.
• Make sure the specimen is firmly installed before testing to prevent accidental peeling.
• Use multiple protection mechanisms to avoid data loss and equipment failure.
• When customizing effective stretch Travel, compression Travel and Dimension according to user request, it is necessary to communicate and confirm in advance.
